Clutch Pedal Switch, Function

Clutch Pedal Switch, Function

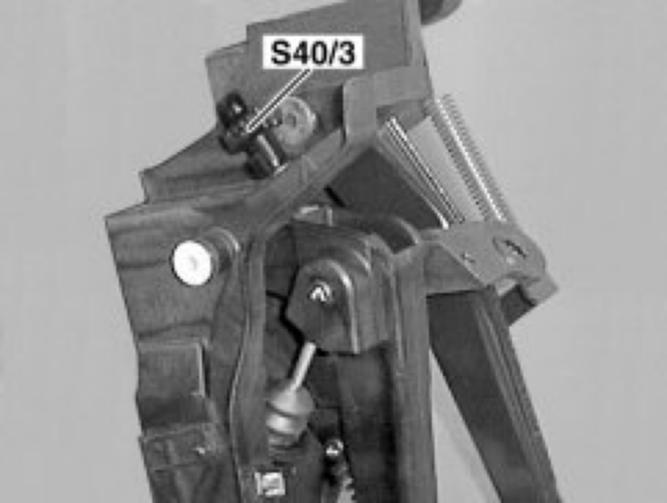

S40/3 Clutch pedal switch

The switch has one contact which switches to ground.
Clutch pedal not operated: contact closed.
Clutch pedal operated: contact open.
(USA) (except engine 166): Starter control is released by the motor electronics control unit when the clutch pedal is operated
