Charge Pressure Cooler, Location/Function/Design/Operation

Charge Pressure Cooler, Location/Function/Design/Operation

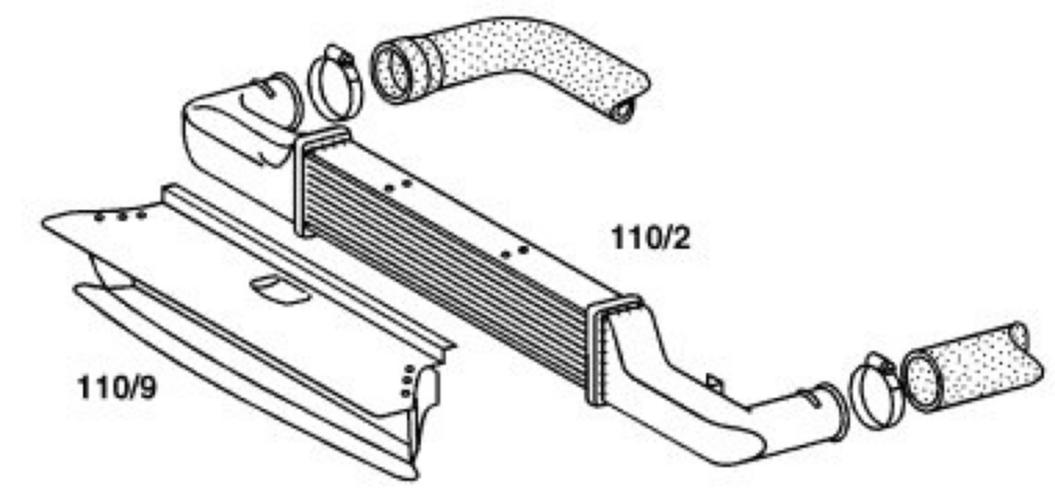

Shown on model 202
110/2 Charge air cooler
110/9 Air scoop

Charge air cooler position
Behind front bumper.

Charge air cooler task
Cooling down the charge air heated by the turbocharger or supercharger.

Charge air cooler design
Cross-flow design of charge air cooler.

Charge air cooler function
The air heated during the charge operation, is cooled down again by the charge air cooler (110/2). This improves the volumetric efficiency of the cylinders.
