ASR Off Switch, Location/Task

ASR OFF Switch, Location/Task

MODEL 129, 140, 202 as of 1.6.94,
168, 170, 208, 210 with CODE (471a) Acceleration slip regulation (ASR

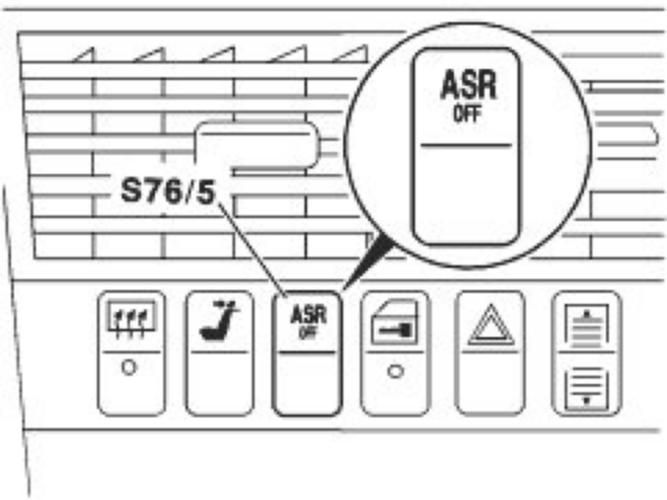

S76/5 ASR OFF switch

Task
When the ASR OFF switch (S76/5) is operated, the ASR drive moment control is switched off. MSR control remains active but is switched to less sensitive.

Location
Center console
