Electronic Ignition (EI) System (Distributor-Less) (ME-SFI)

Good Scope Patterns

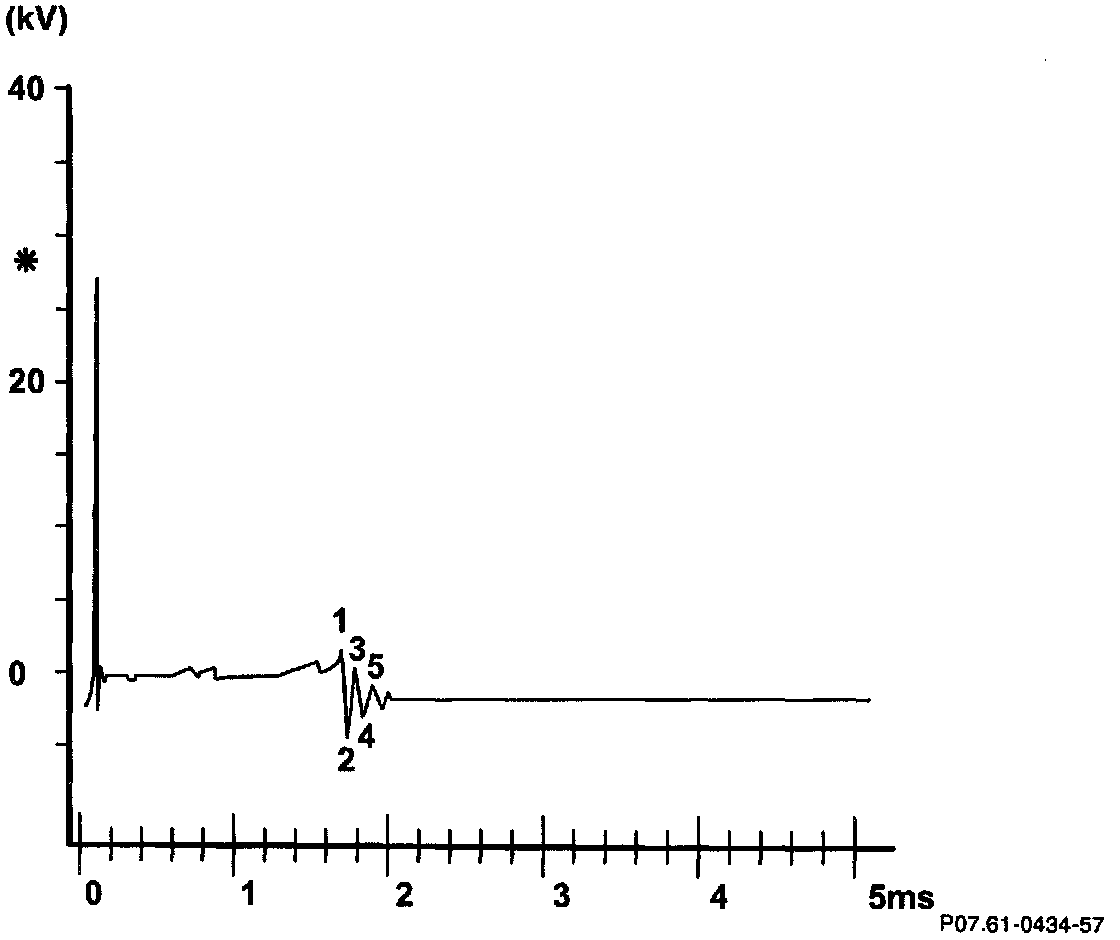

Secondary Side (Single Display):

Bosch ignition coil
1 Oscillation
2 Oscillation
3 Oscillation
4 Oscillation
5 Oscillation

Engine: Idle
e.g. 8-cylinder, engine 119
No. 1 cylinder displayed

Measurement range 40 kV
Time range 5 ms

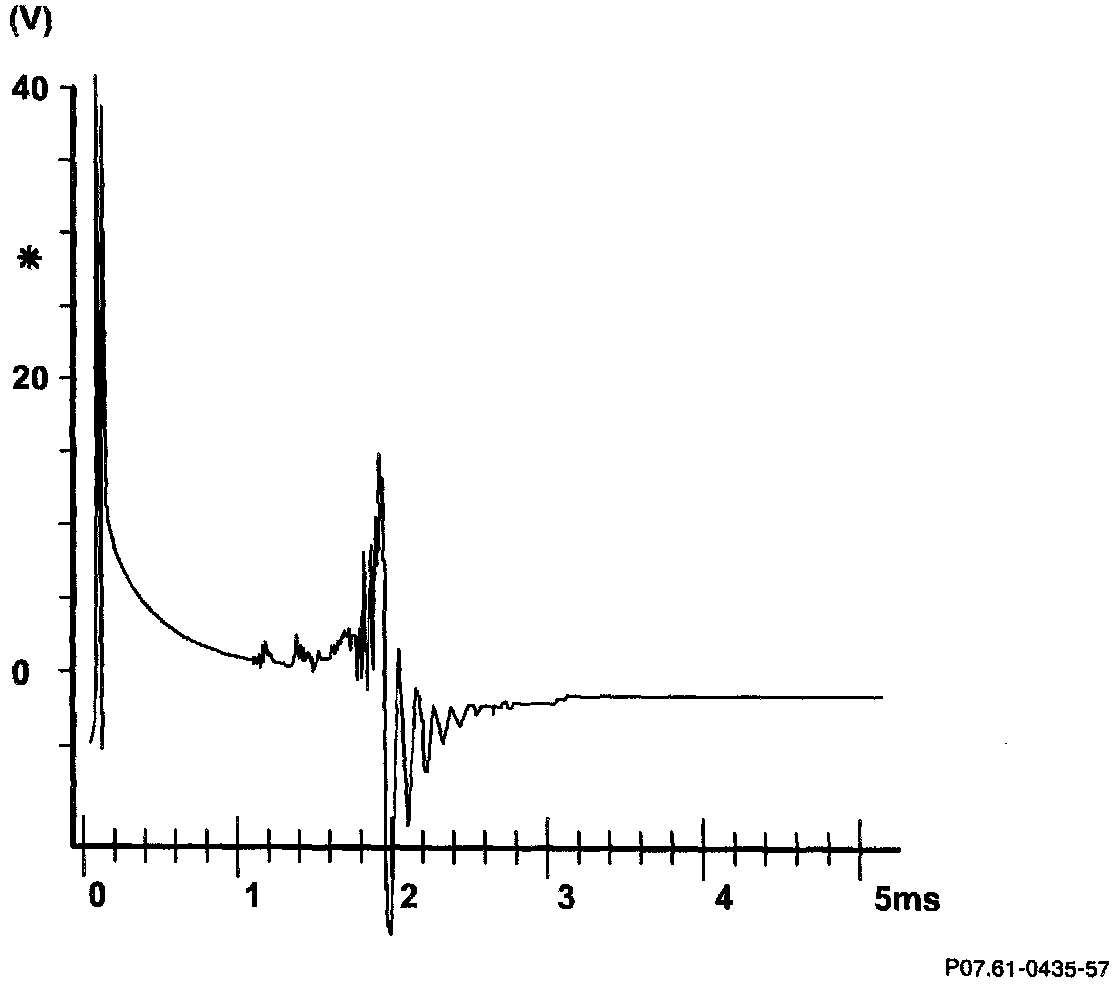

Primary Side (Single Display):

Engine: idle
e.g. 8-cylinder, engine 119
No. 1 cylinder displayed

Measurement range 40 kV
Time range 5 ms
