Preparation For Test - Section 31
Preparation for Test
1. Review Sections: 11, 21, 22, 23, 24, 33.
2. Review section 0. Connection and Use of Test Equipment - Section 0
3. Connect pressure gauge to test connection (see Figure 1.)
4. After completing test, using measurement glass (055), release fuel pressure and allow residual fuel to drain into glass (see Figure 1.)

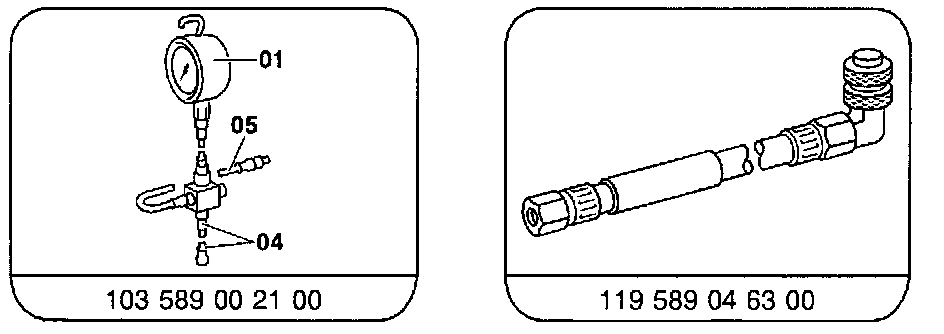

Special Tools:

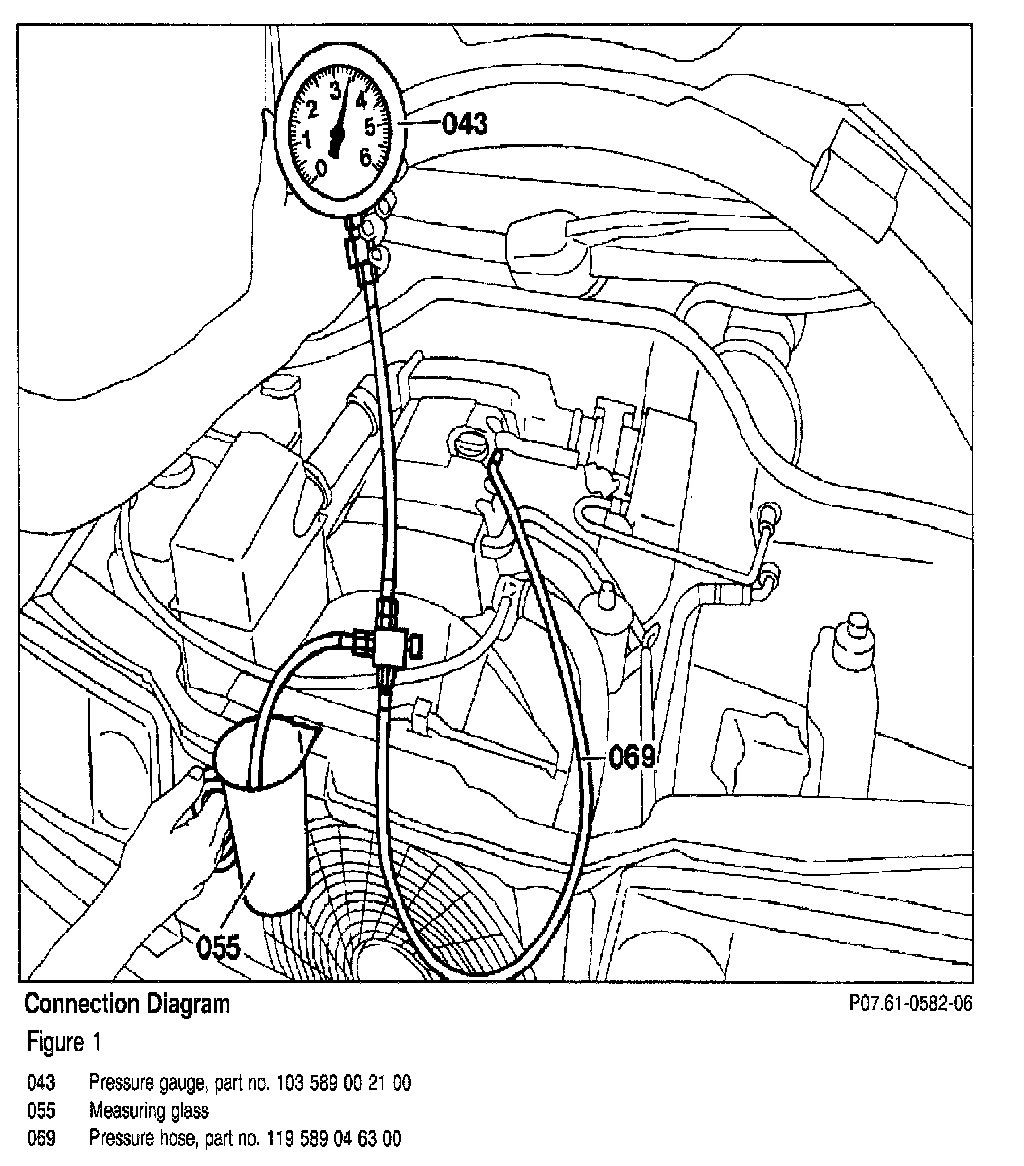

Figure 1:
