Engine Speed Signal (TN) PE00.19-U-2910WB



Engine Speed Signal (TN) PE00.19-U-2910WB
- ME 104/111

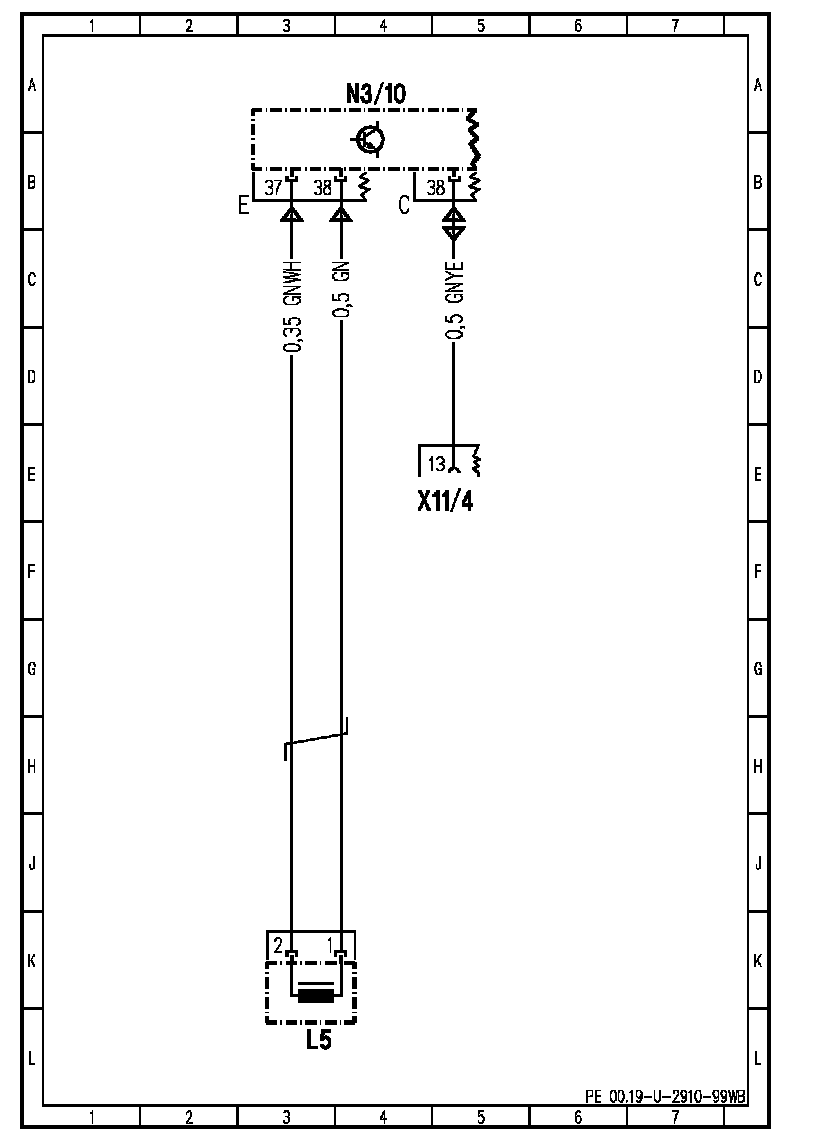

Wiring Diagram:

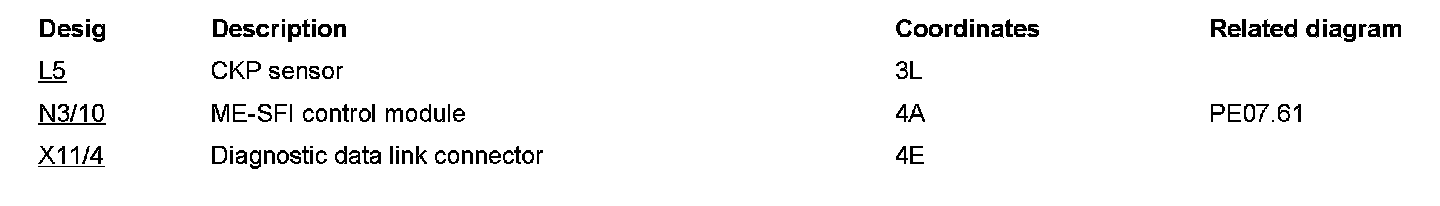

Component Description/Coordinates, L5 To X11/4:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
