FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>

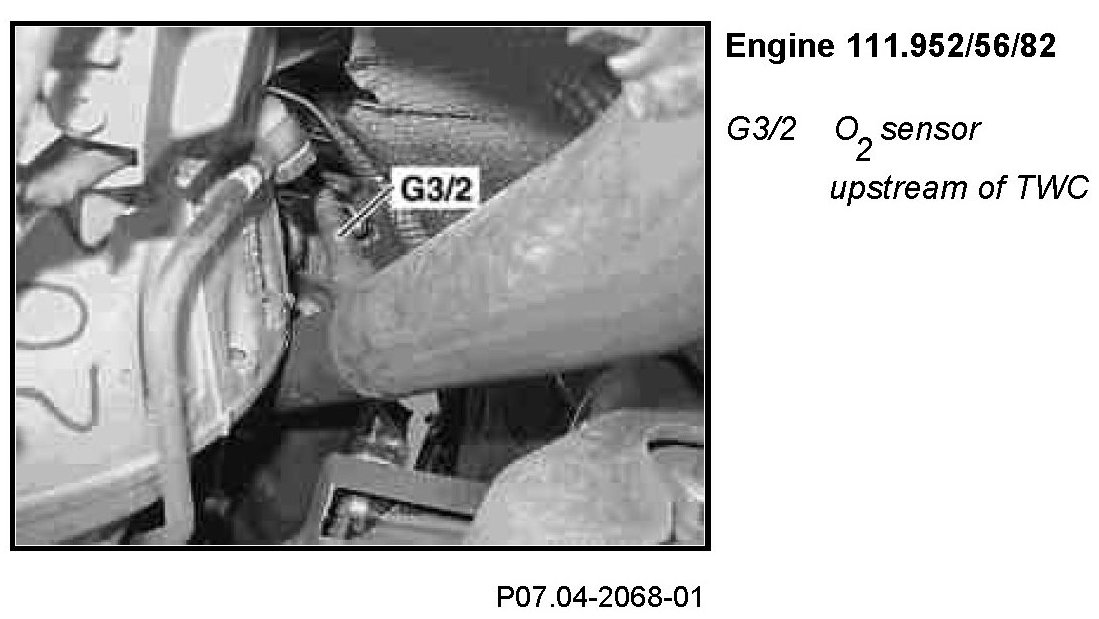

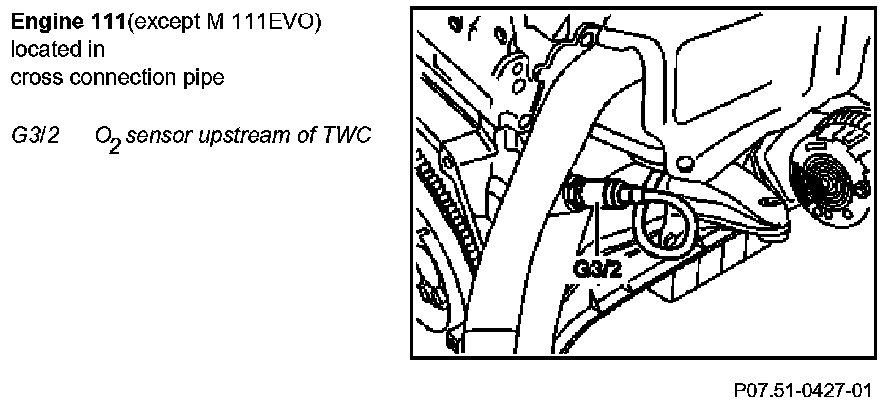

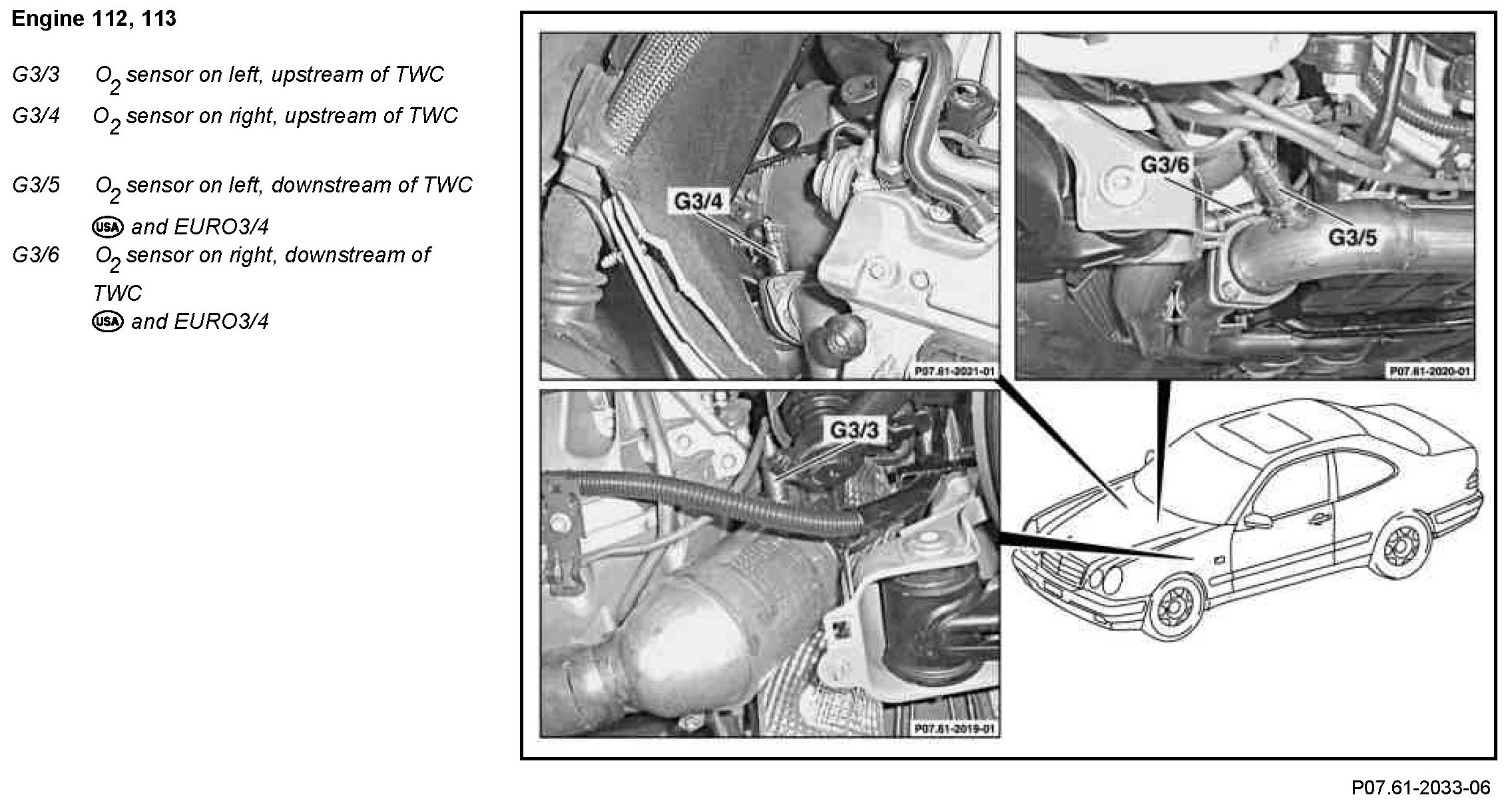

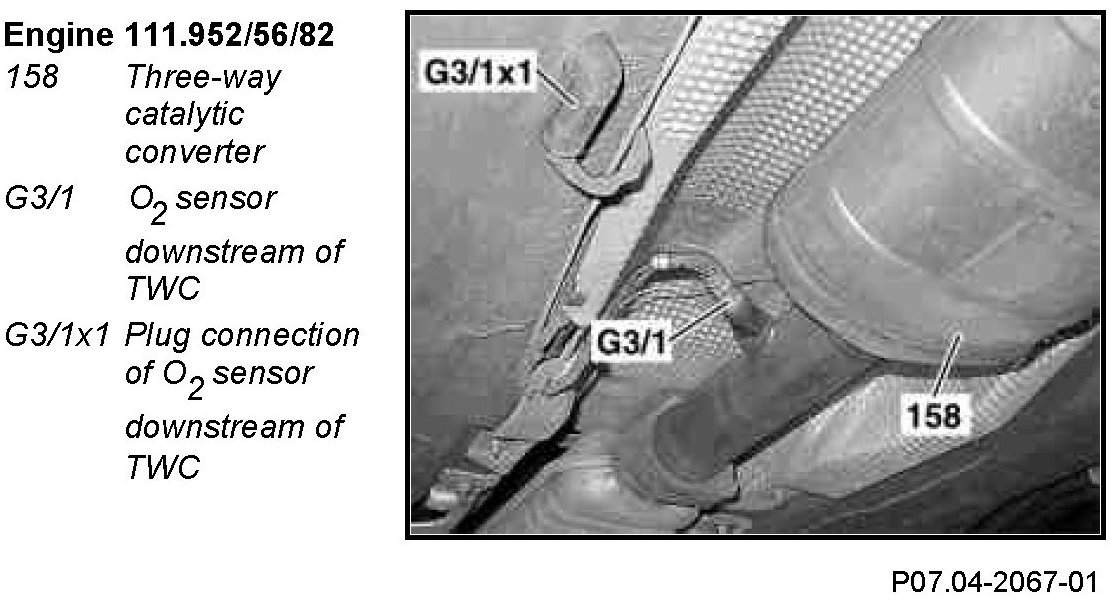

GF07.04-P-4103-02GR O2 Sensors Position
GF07.04-P-4103-02GR O2 Sensors Position
GF07.04-P-4103-02GR O2 Sensors Position
