Mercedes Benz
>>
2000
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnosis
>>
Recalling Actual Values With HHT - Section 13
>>
Test Actual Values
>>
18.0 - 21.0
18.0 - 21.0

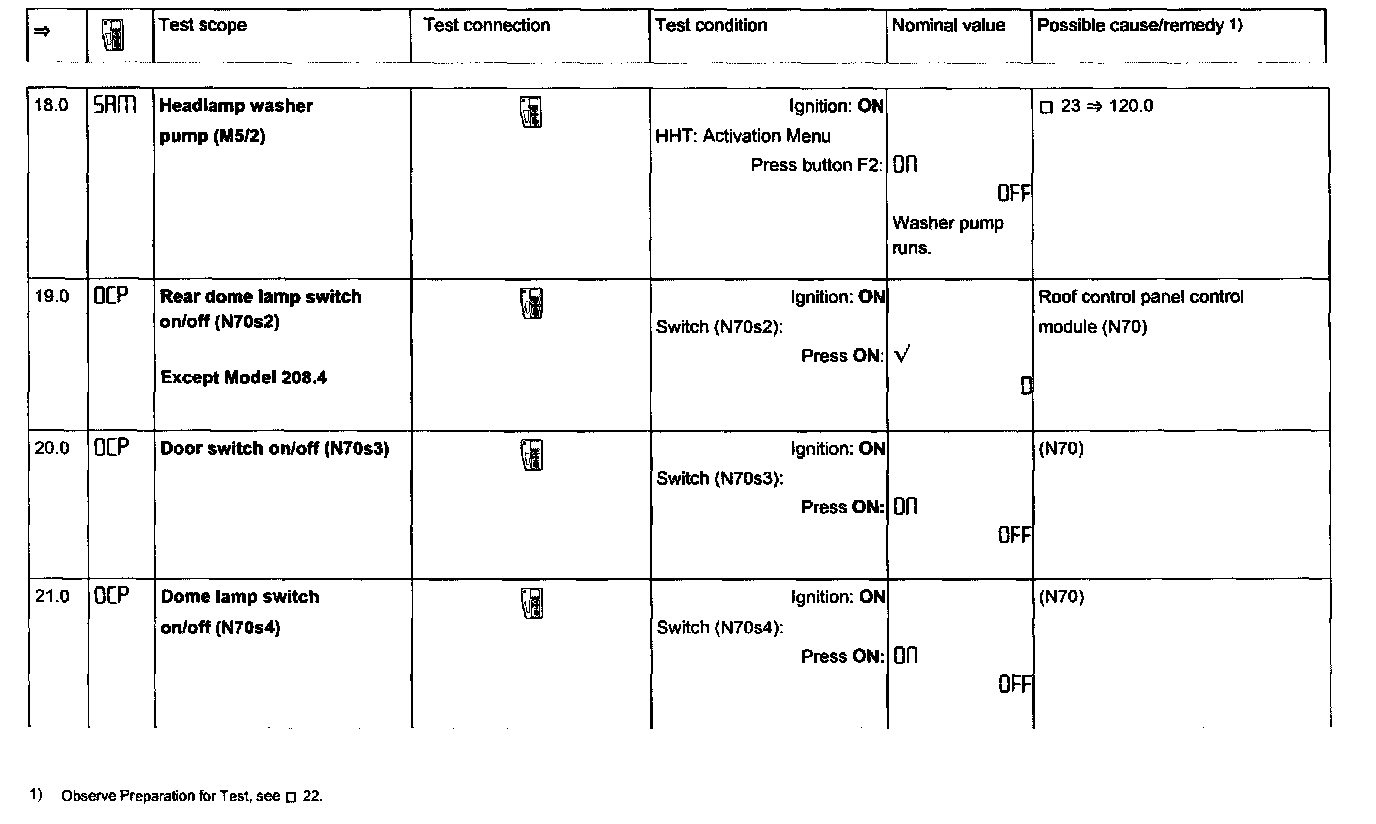

Test Steps 18.0 - 21.0:
