Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Description and Operation >> Interlinkage of Turn Signal/Hazard Warning Flasher Components

Interlinkage of Turn Signal/Hazard Warning Flasher Components



202 as of June 1997
210 from March 1997
208, 210 from March 1997

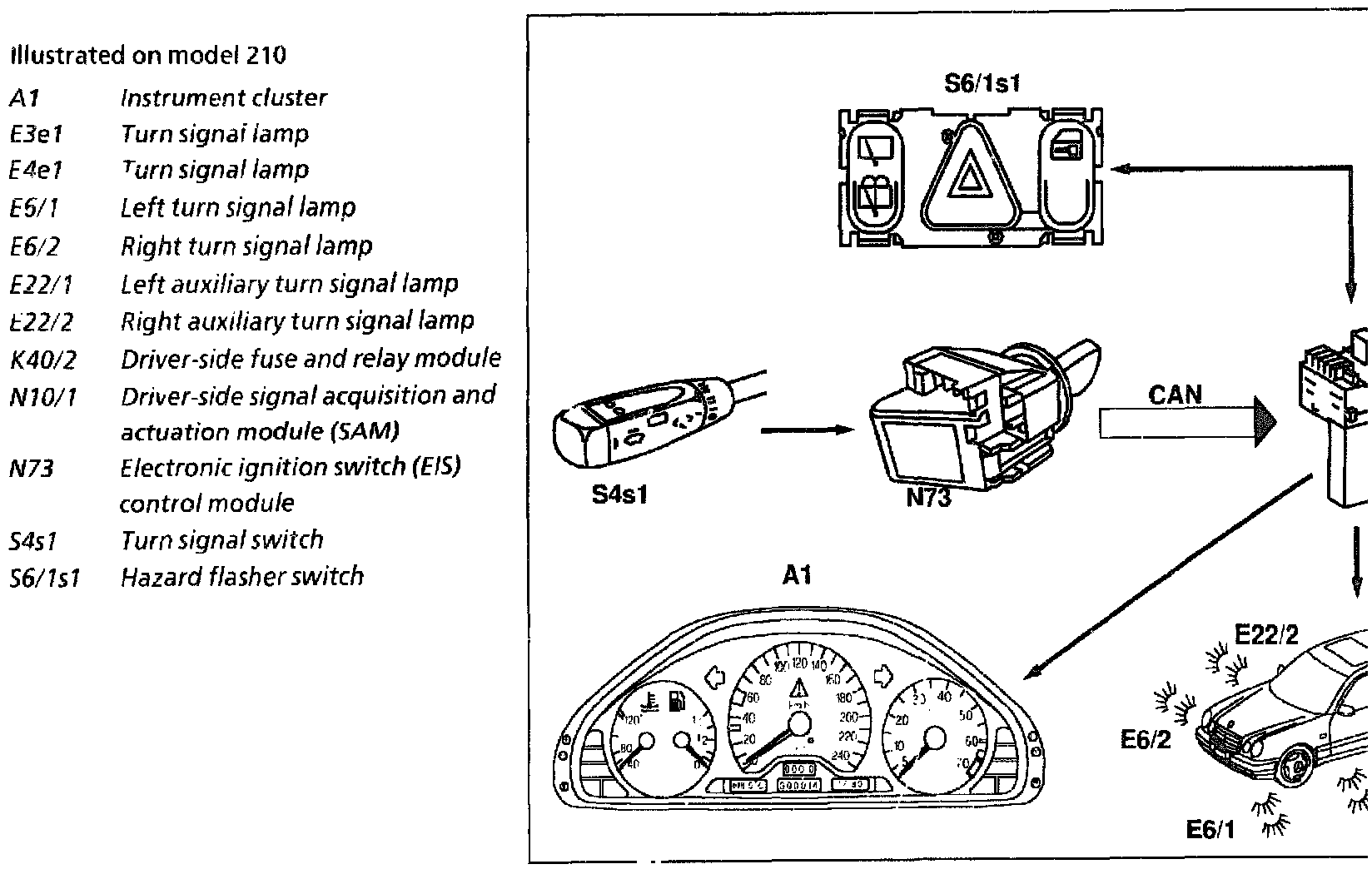

nYInterlinkage of Turn Signal/Hazard Warning Flasher Components:
