Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Component Tests and General Diagnostics >> Signaling Device >> Hazard, Turn Signals >> Electrical Test Program >> Test - Section 23 >> 8.0 - 11.0

8.0 - 11.0

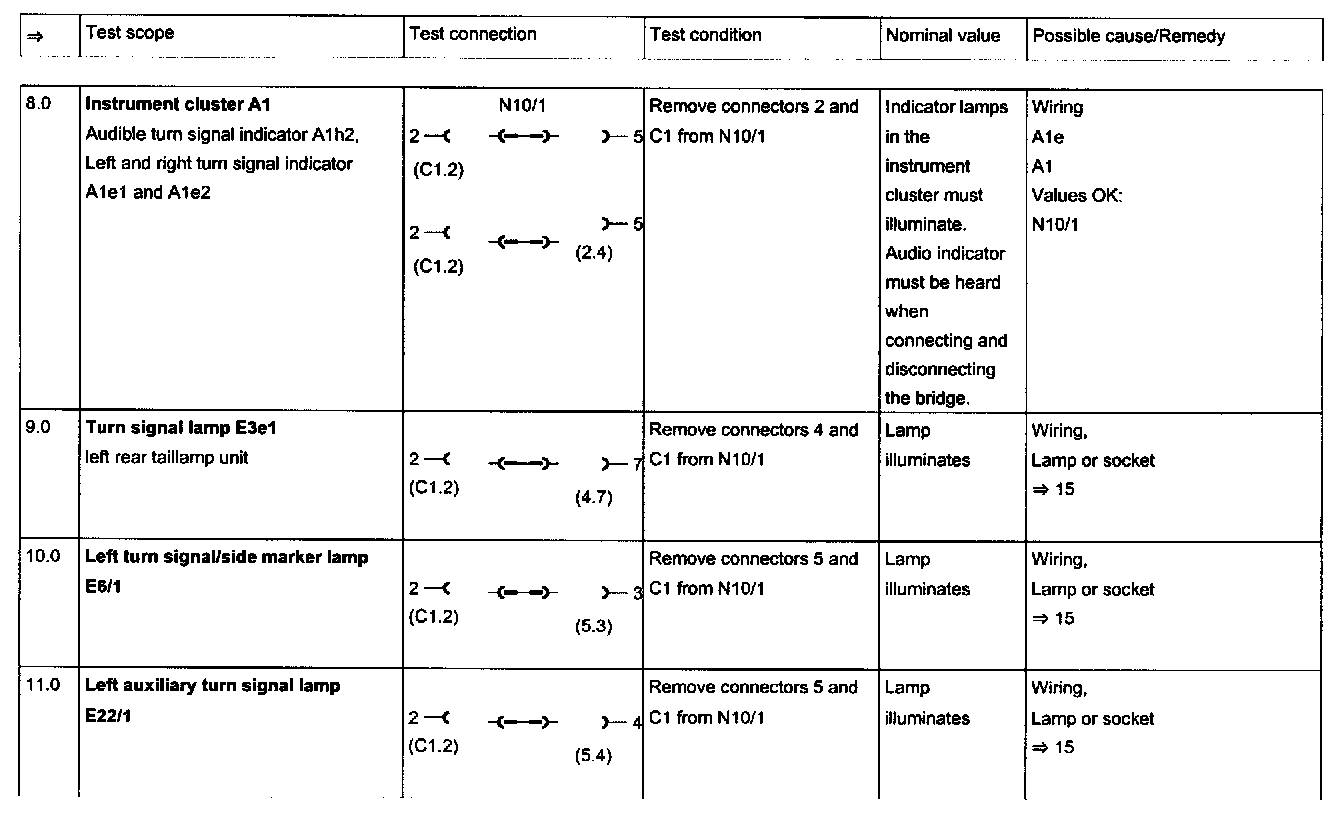

Steps 8.0 - 11.0:
