C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Signaling Device
>>
Hazard, Turn Signals
>>
Electrical Test Program
>>
Test - Section 23
>>
5. 0 - 7.0
5. 0 - 7.0

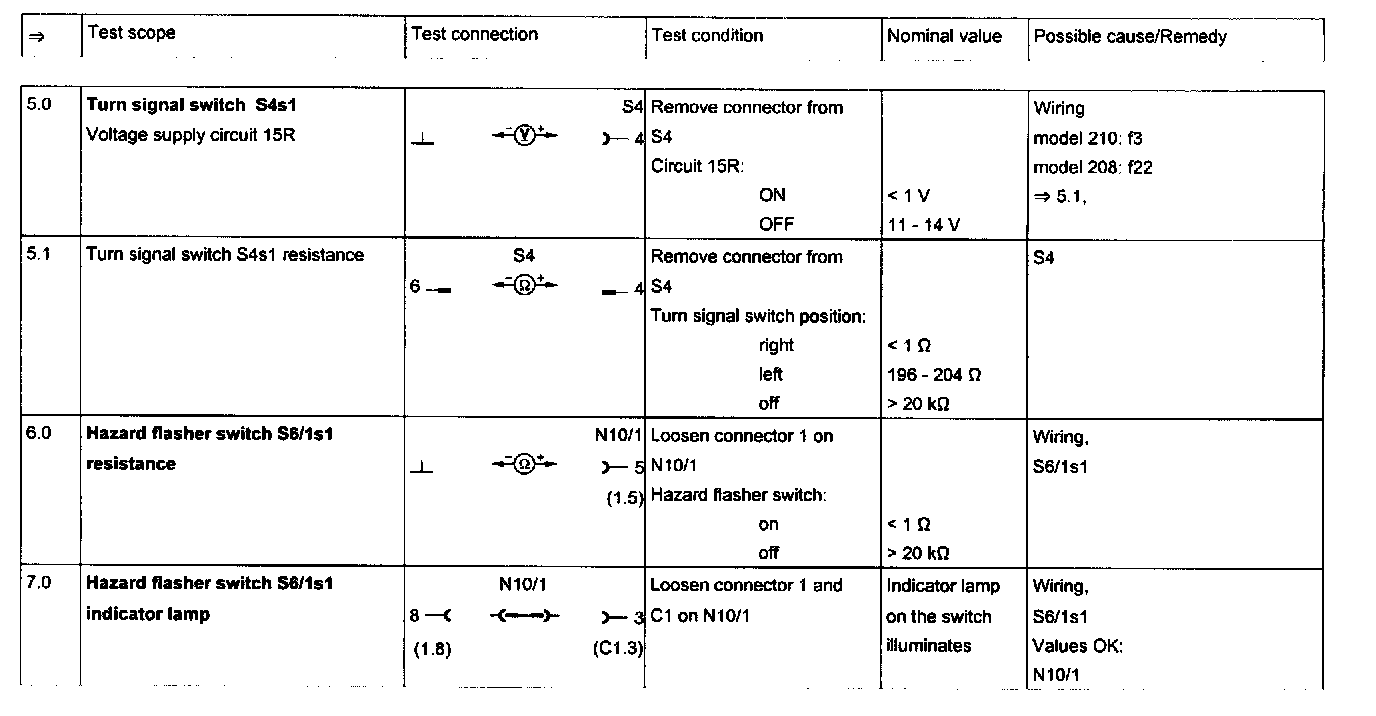

Steps 5.0 - 7.0:
