Headlamp Alignment Actuator: Service and Repair

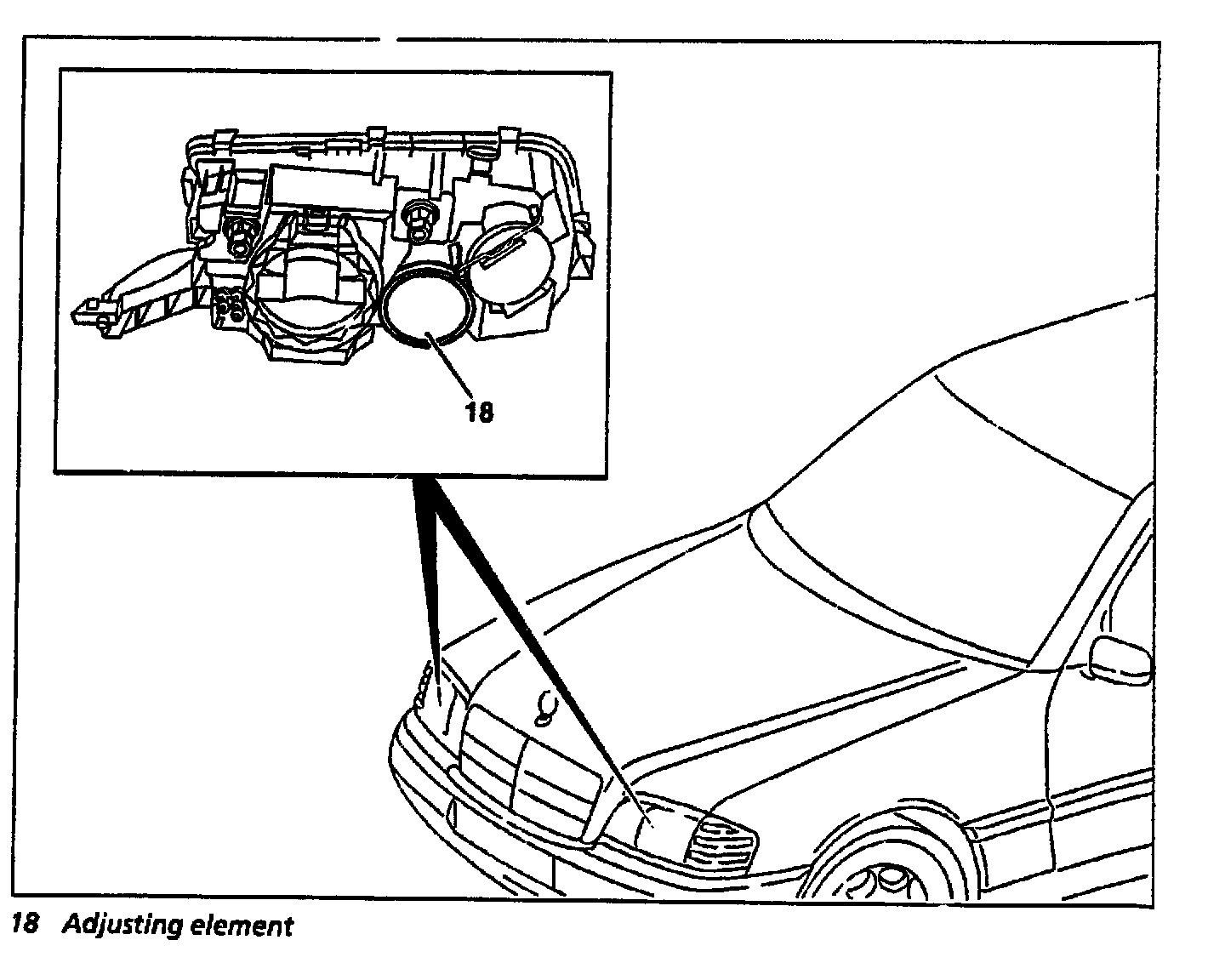

Component Identification:

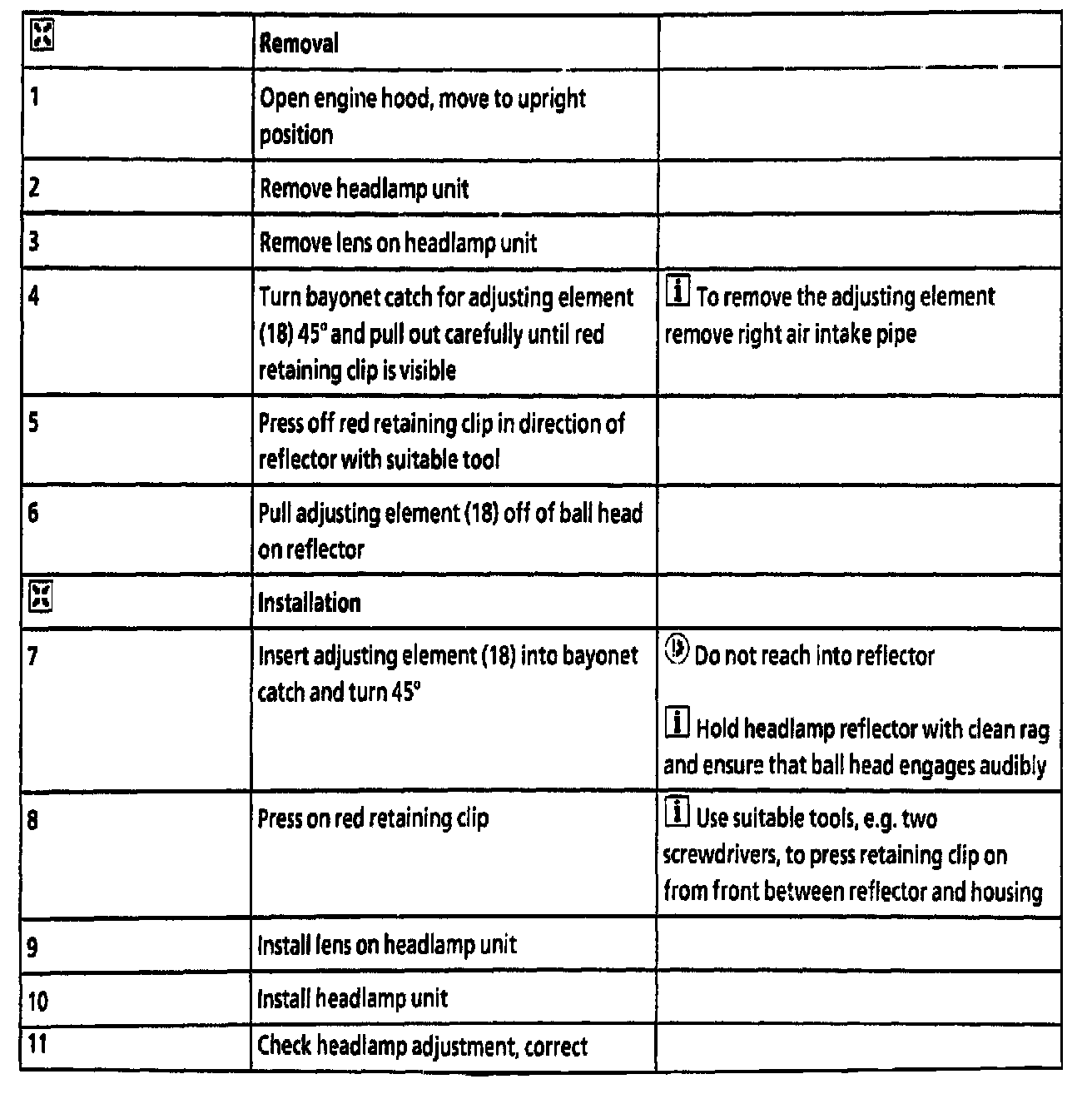

Removal/Installation, Steps 1 - 11:
