Component Locations - Section 21

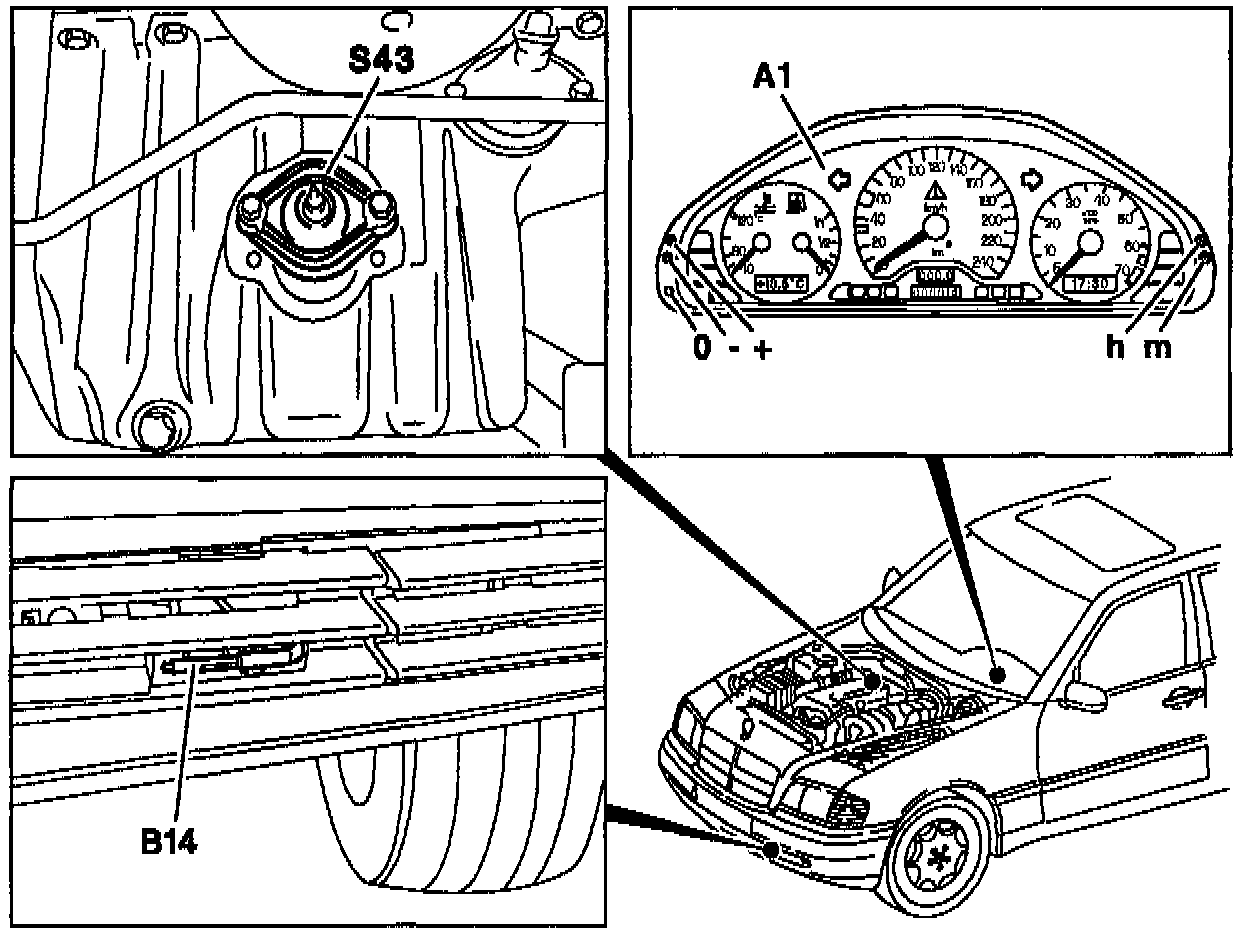

A1 Instrument cluster
B14 Outside temperature indicator temperature sensor
S43 Oil level switch

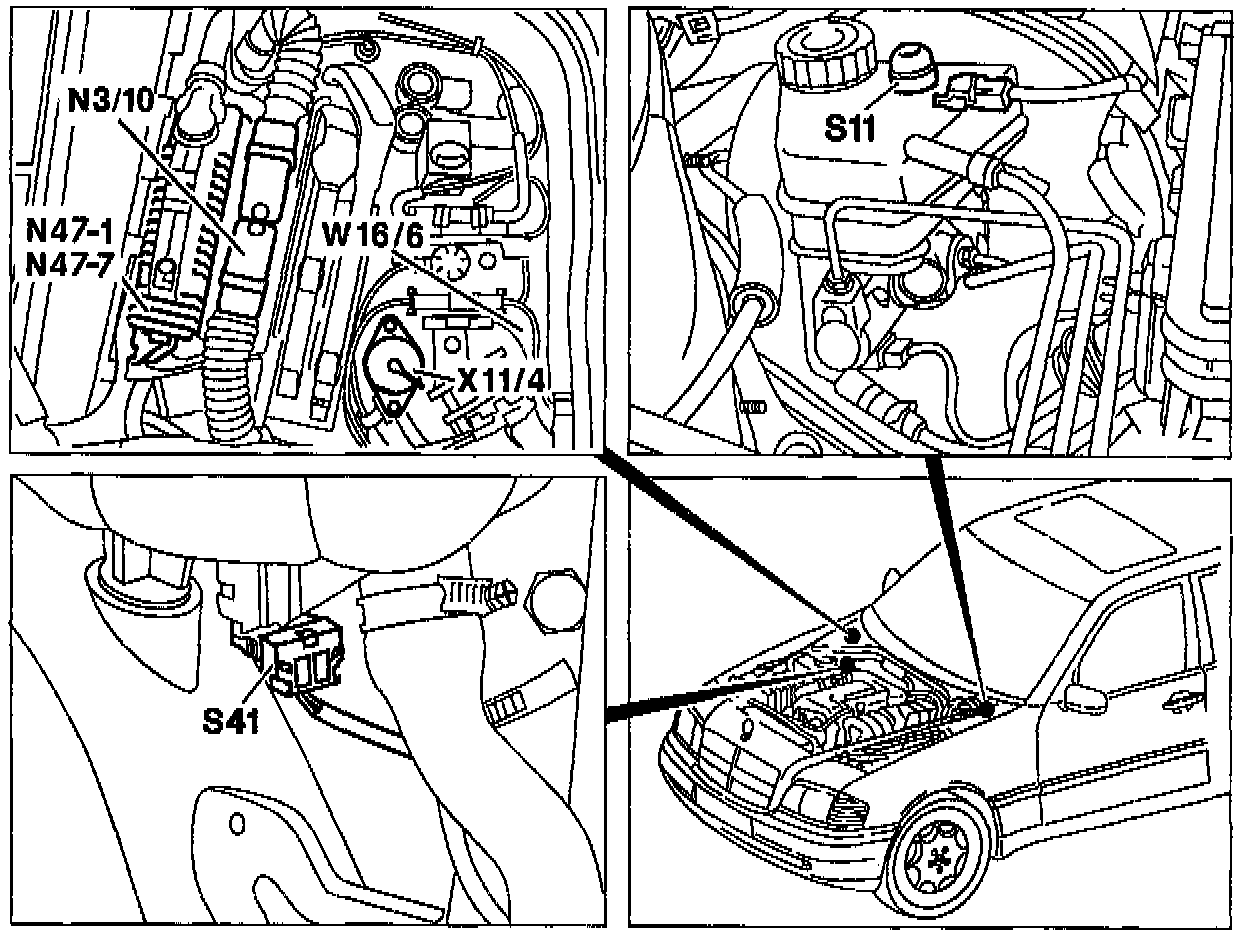

N3/10 Engine control module (ME-SFI)
N47-1 ASR/SPS control module
N47-7 ABS control module
S11 Brake fluid level switch
S41 ECL switch
W16/6 Ground (electronics ground - component compartment - right)
X11/4 Data link connector

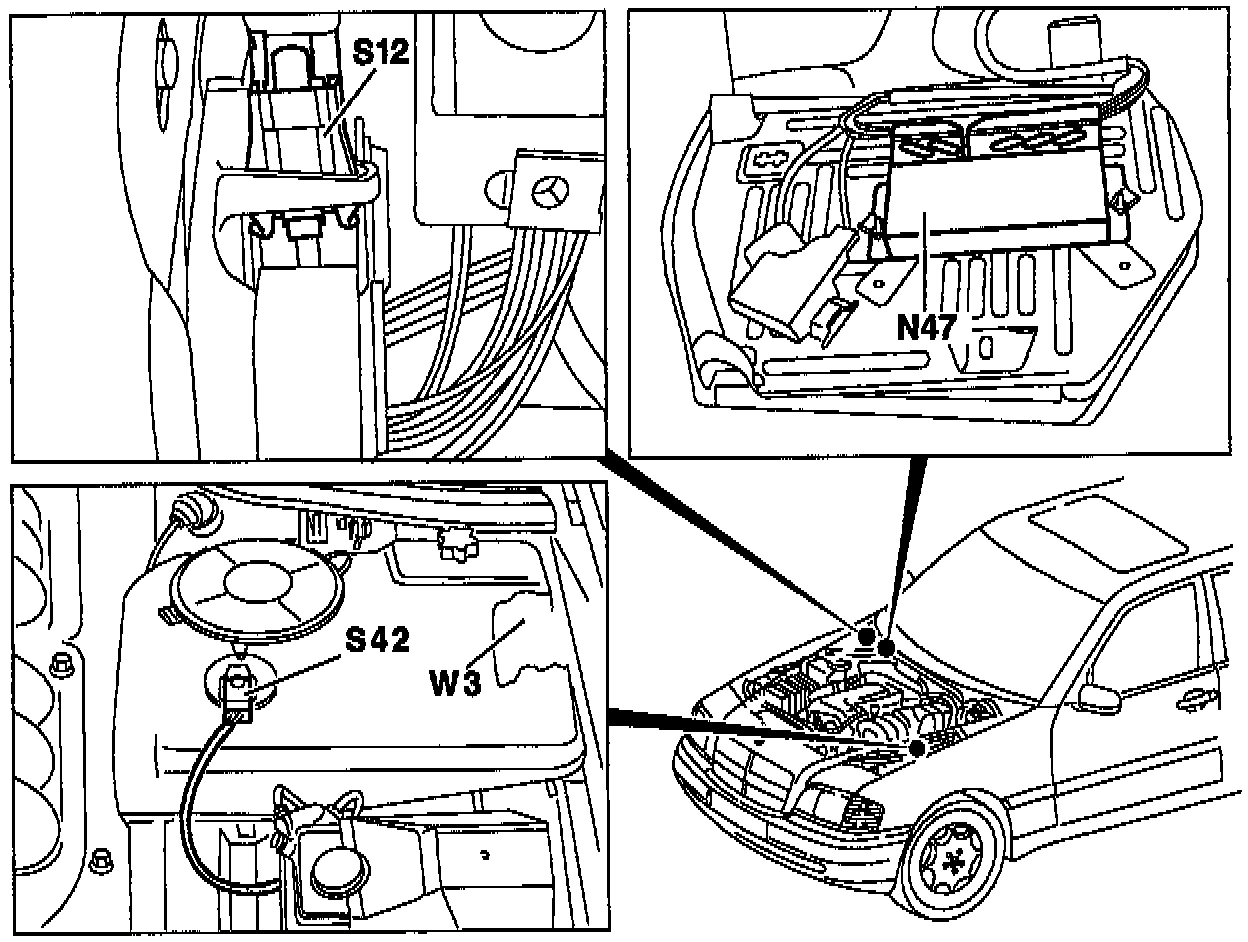

N47 Instrument cluster
S12 Parking brake switch
S42 Windshield washer fluid level switch
W3 Ground (left front wheel housing at ignition coil)

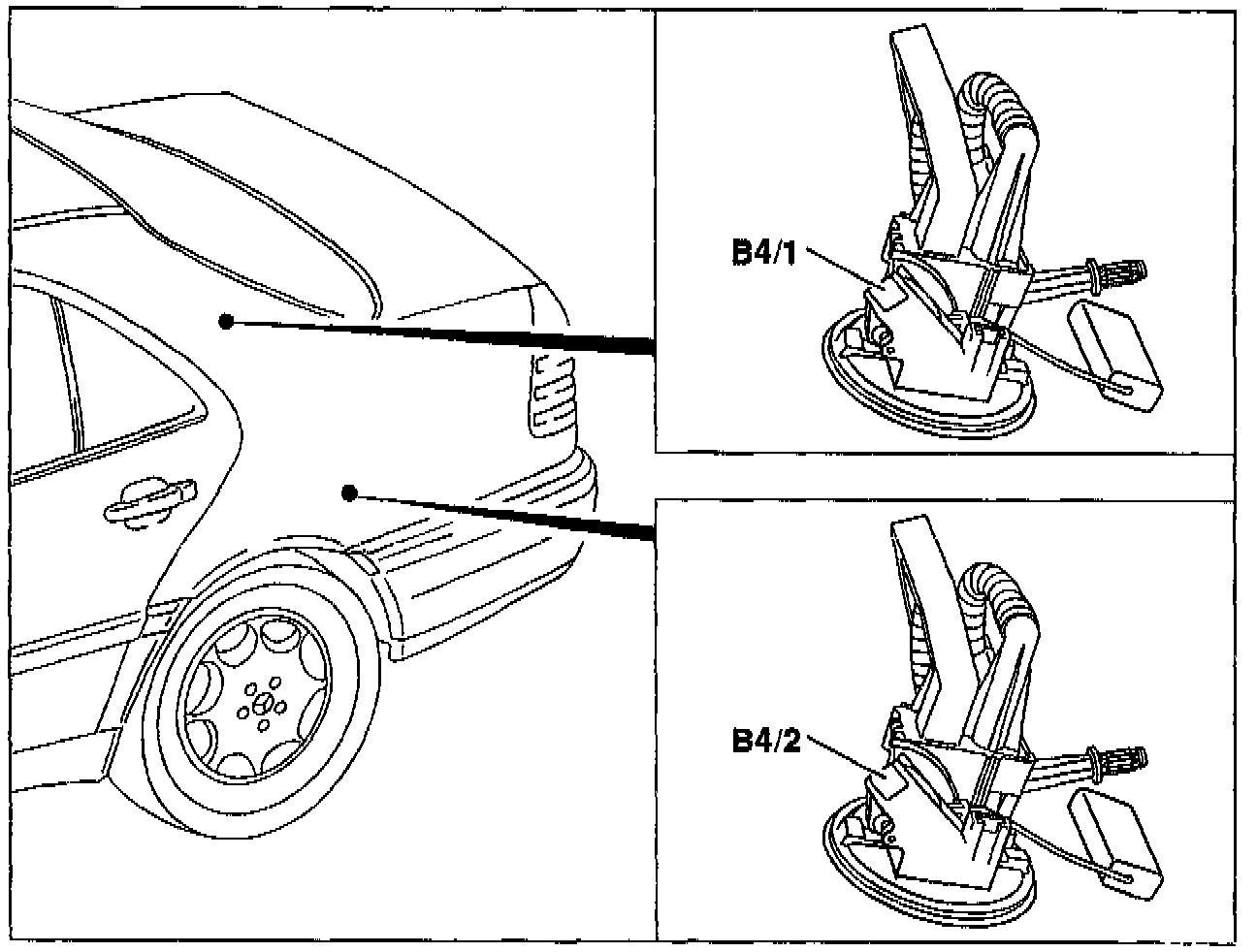

B4/1 Left fuel level sensor
B4/2 Right fuel level sensor
