PTP - Component Locations [31]




Air Conditioning (A/C) (Tempmatic)

Models 202 (as of MY 1999)

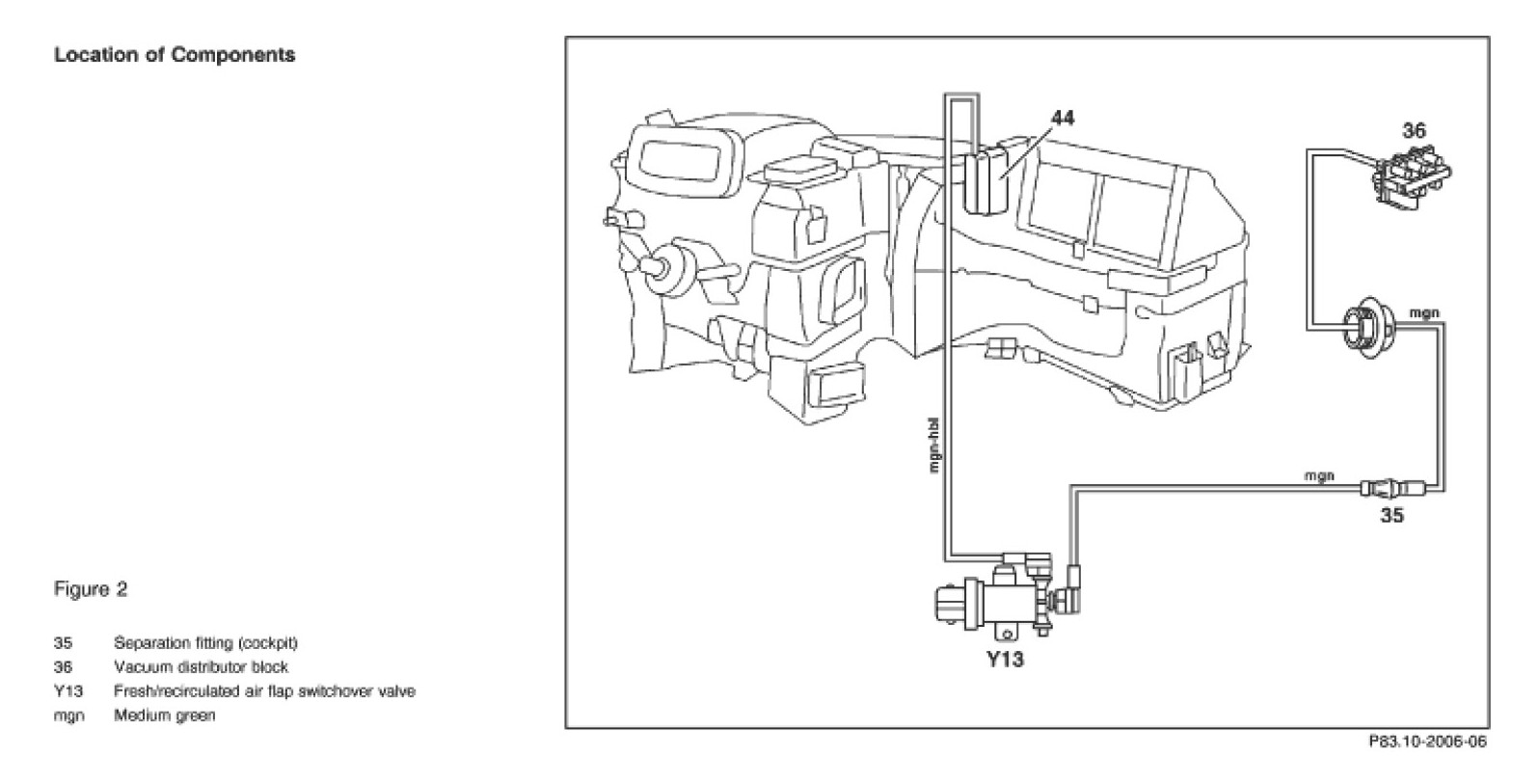

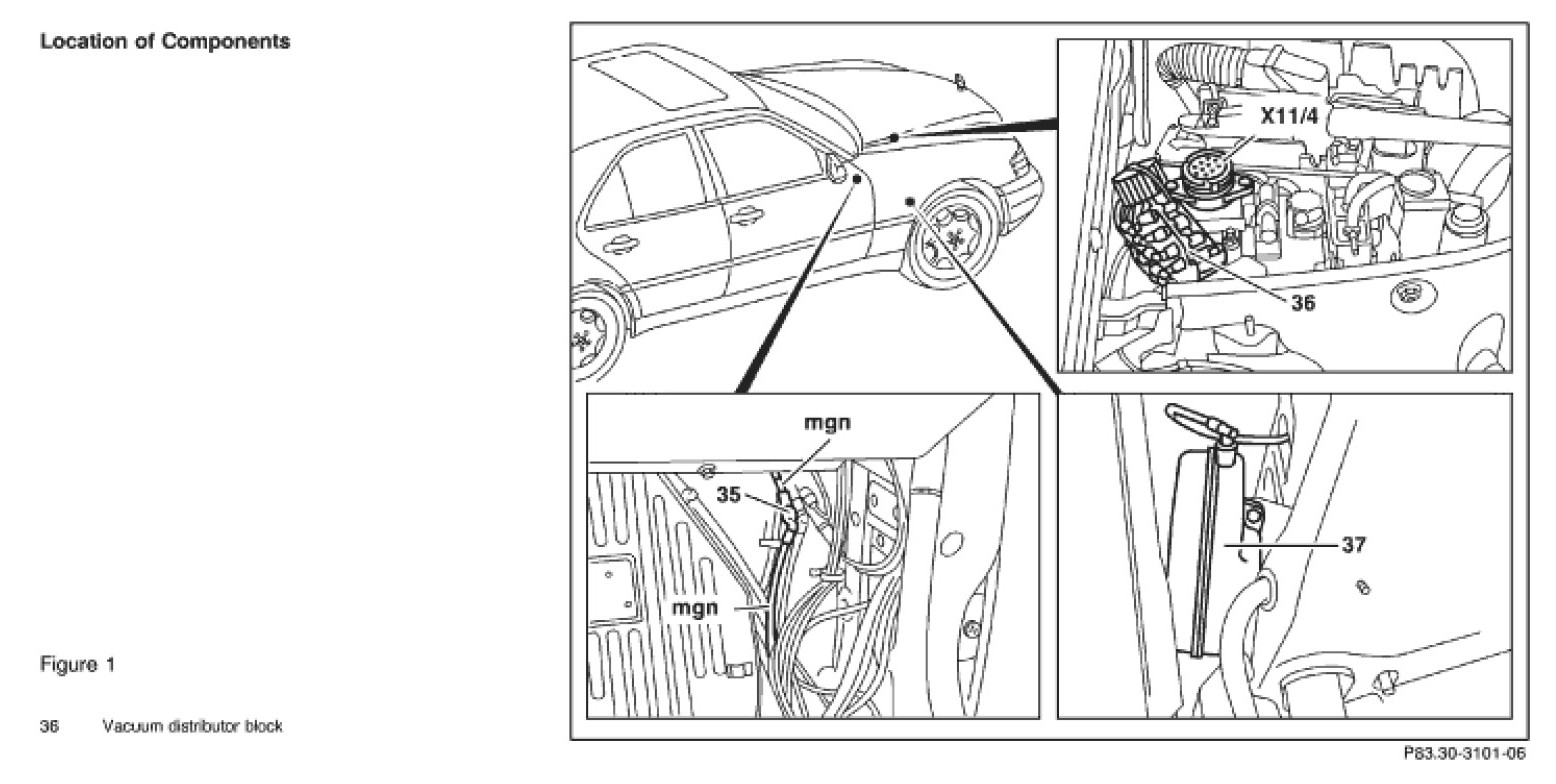

Pneumatic Test Program (PTP) - Component Locations
