Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tune-up and Engine Performance Checks >> Air Cleaner Housing >> Air Cleaner Fresh Air Duct/Hose >> Service and Repair

Air Cleaner Fresh Air Duct/Hose: Service and Repair

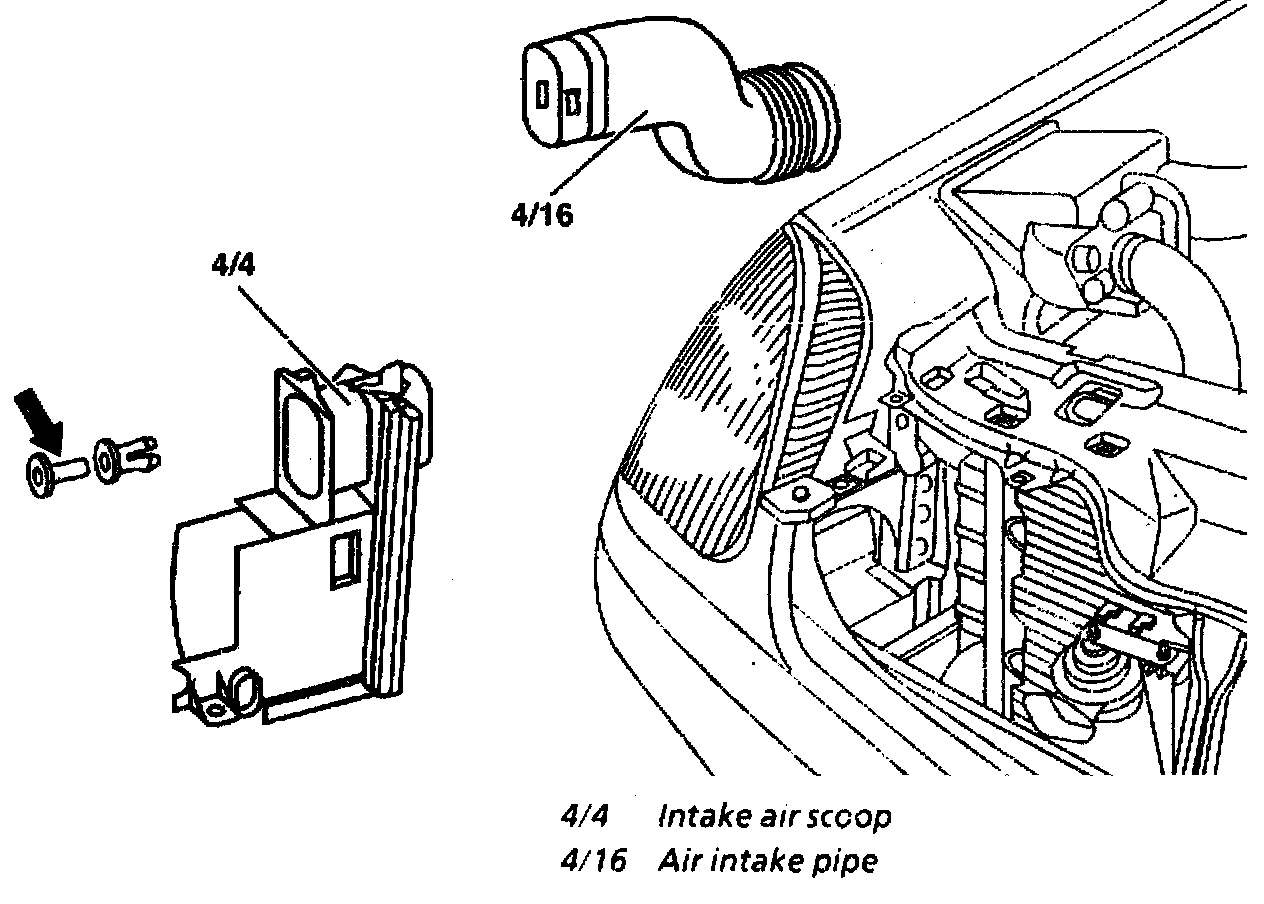

Component Identification, Model 202

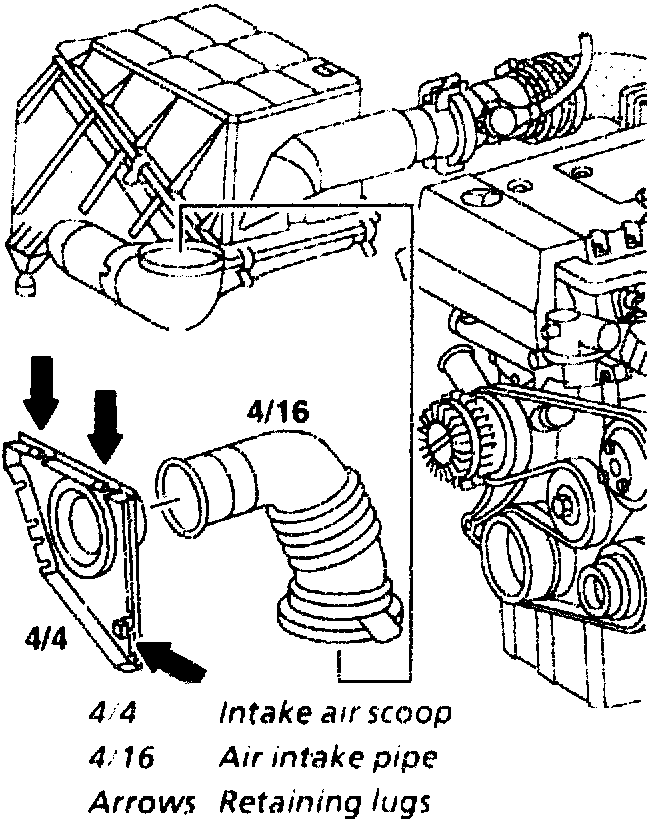

Component Identification, Model 170

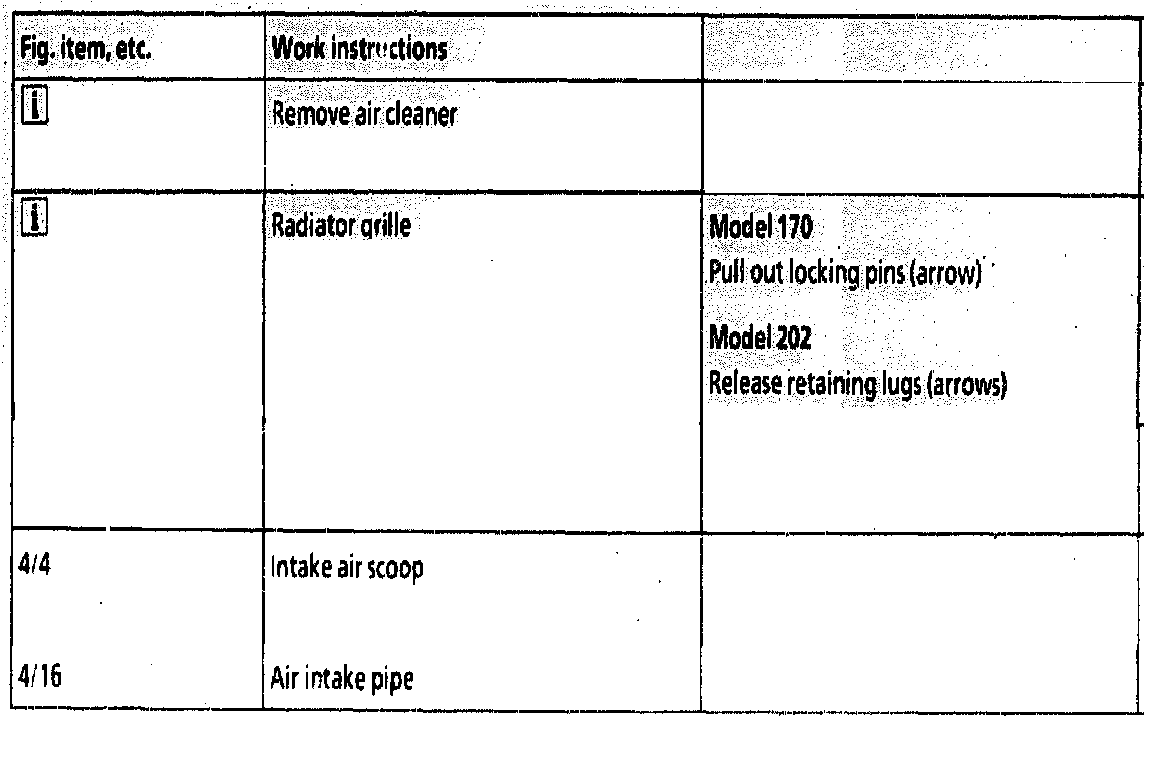

Work instructions
