Guide Rail Pin Replacement

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

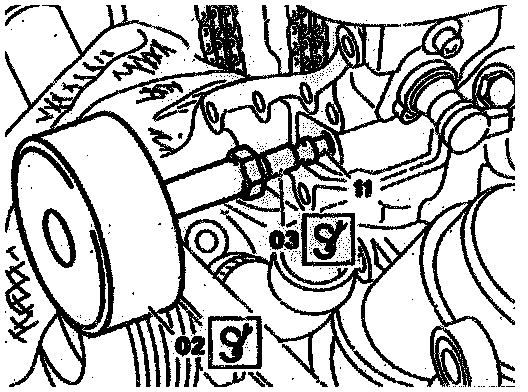

Use threaded insert (03) and impact extractor (02) to pull out guide rail pin; screw threaded insert (03) into the guide rail pin (11) and pull out with the impact extractor (02).
