AR05.10-P-8127A Remove/Install Tensioning Rail

Removing, Installing Tensioning Rail

Part 1:

Part 2:

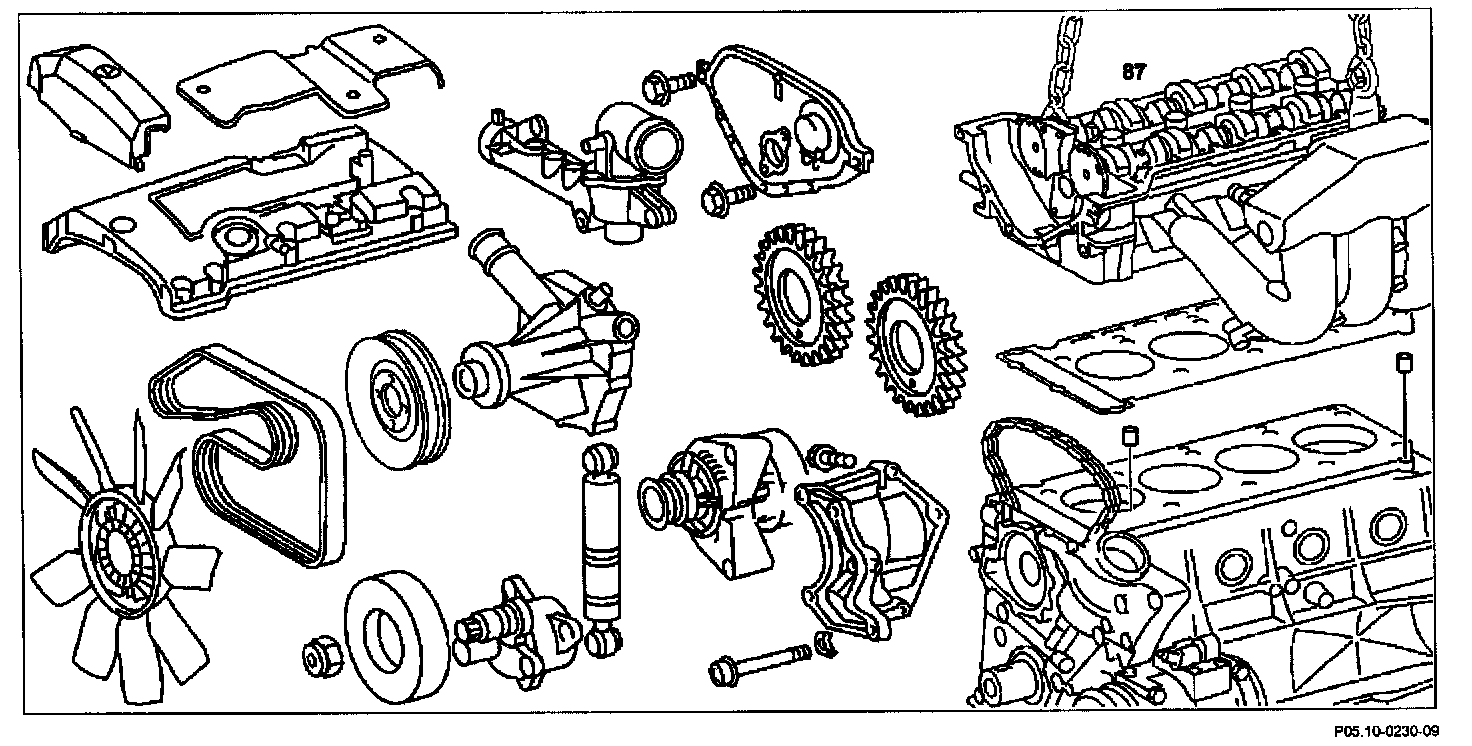

1 Remove cylinder head (87)
2 Remove timing case cover (65)

NOTE: The oil sump need not be removed

CAUTION: Do not damage oil sump gasket (arrow), use care when taking off timing case cover (65), replace oil sump gasket, if necessary.

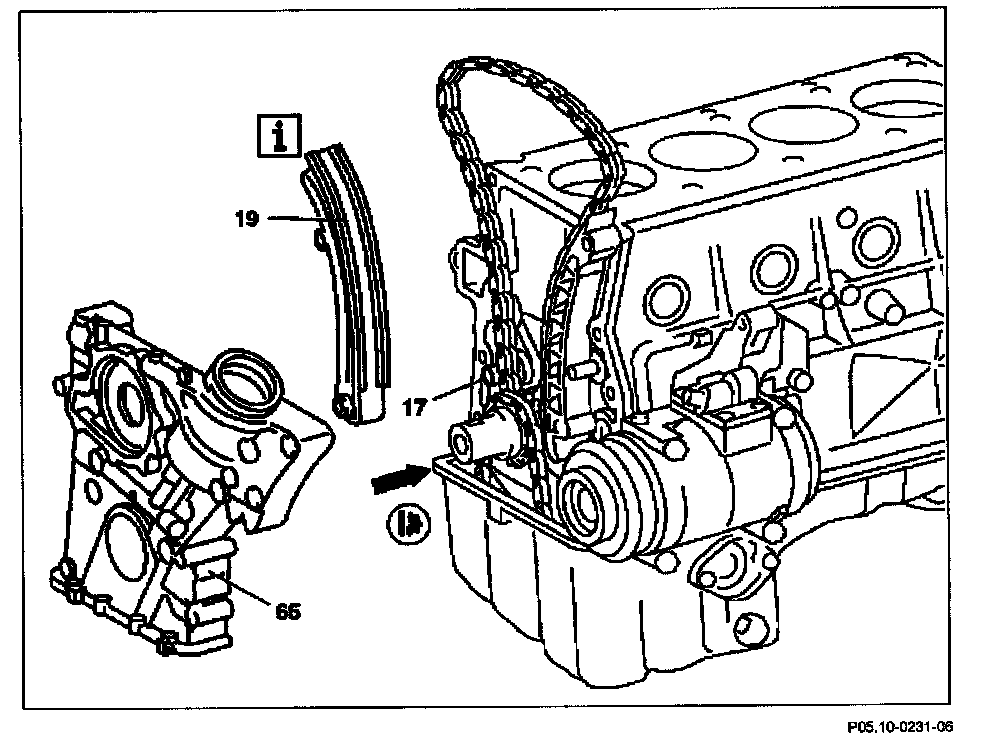

3 Pull tensioning rail (19) off bearing pin (17)

NOTE: The plastic panel of the tensioning rail (19) is clipped in place and can be replaced separately.

4 Install in the reverse order.
