AR03.30-P-5000HA Remove/Install Retaining Lock For Crankshaft/Ring Gear

Removing And Installing Retaining Lock For Crankshaft/Ring Gear

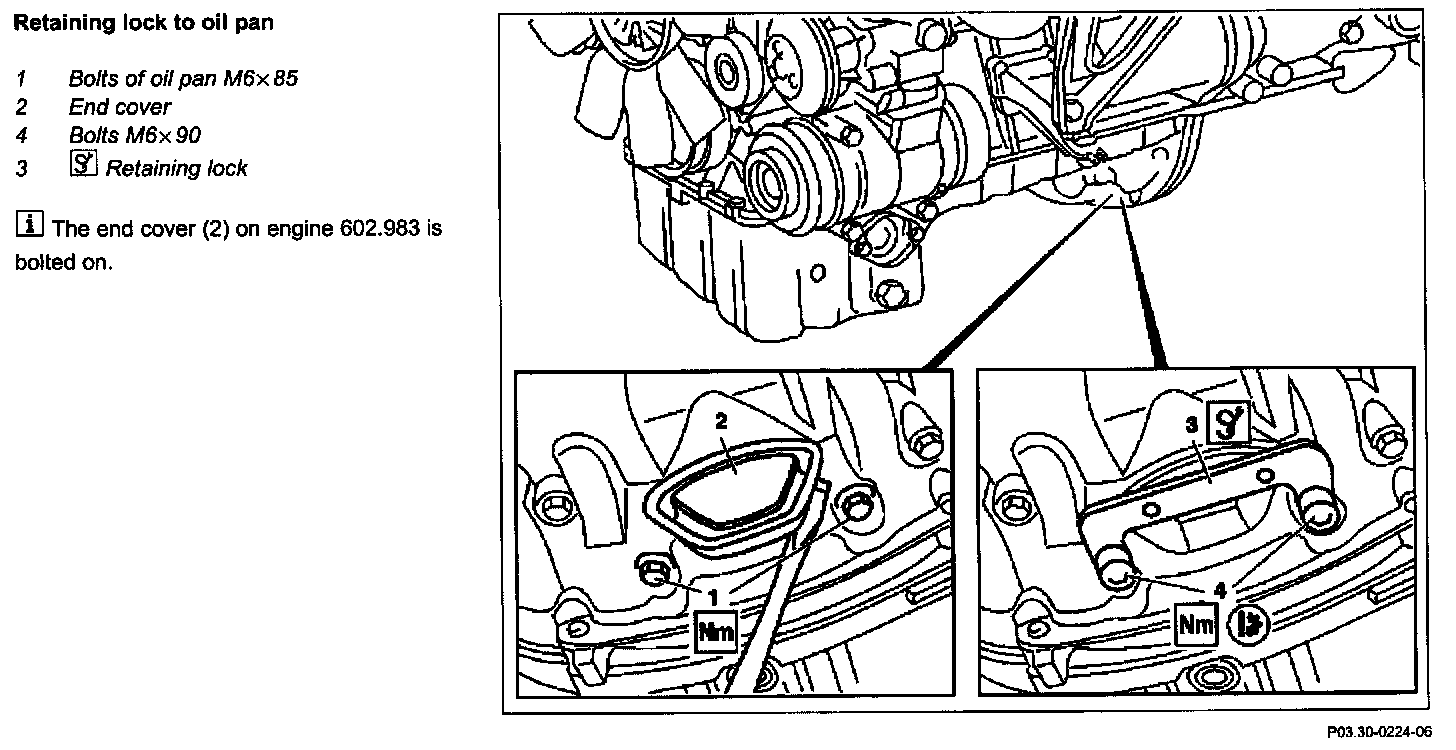

Retaining Lock To Oil Pan:

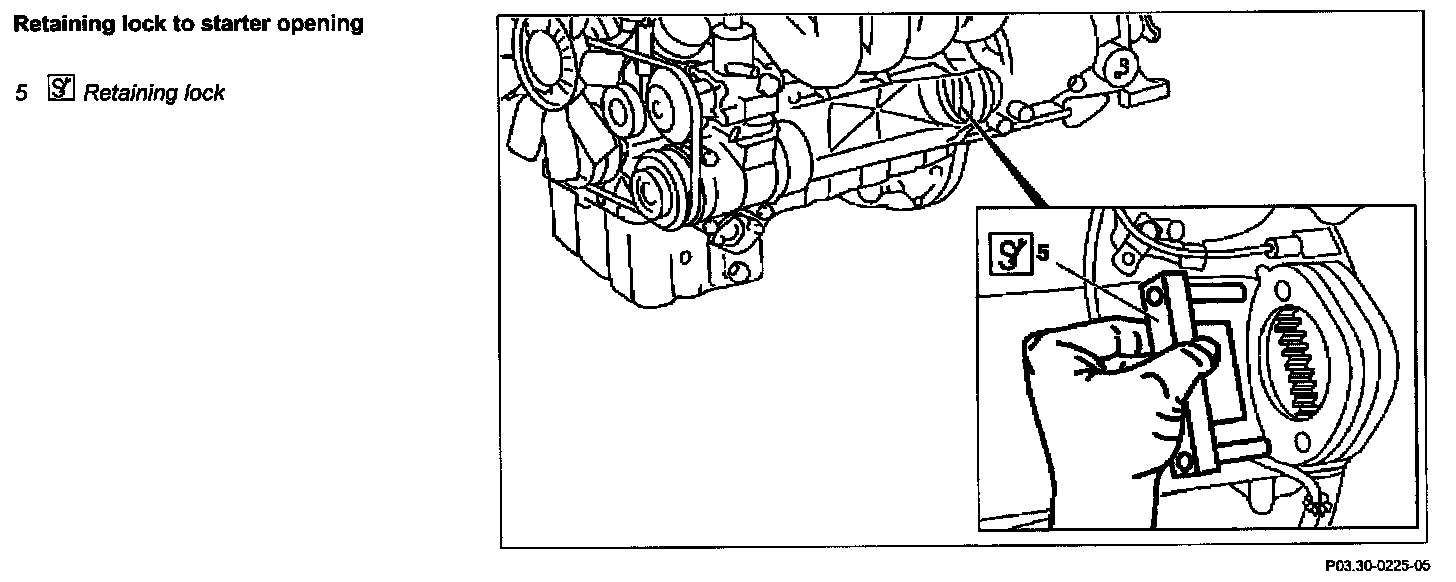

Retaining Lock To Starter Opening:

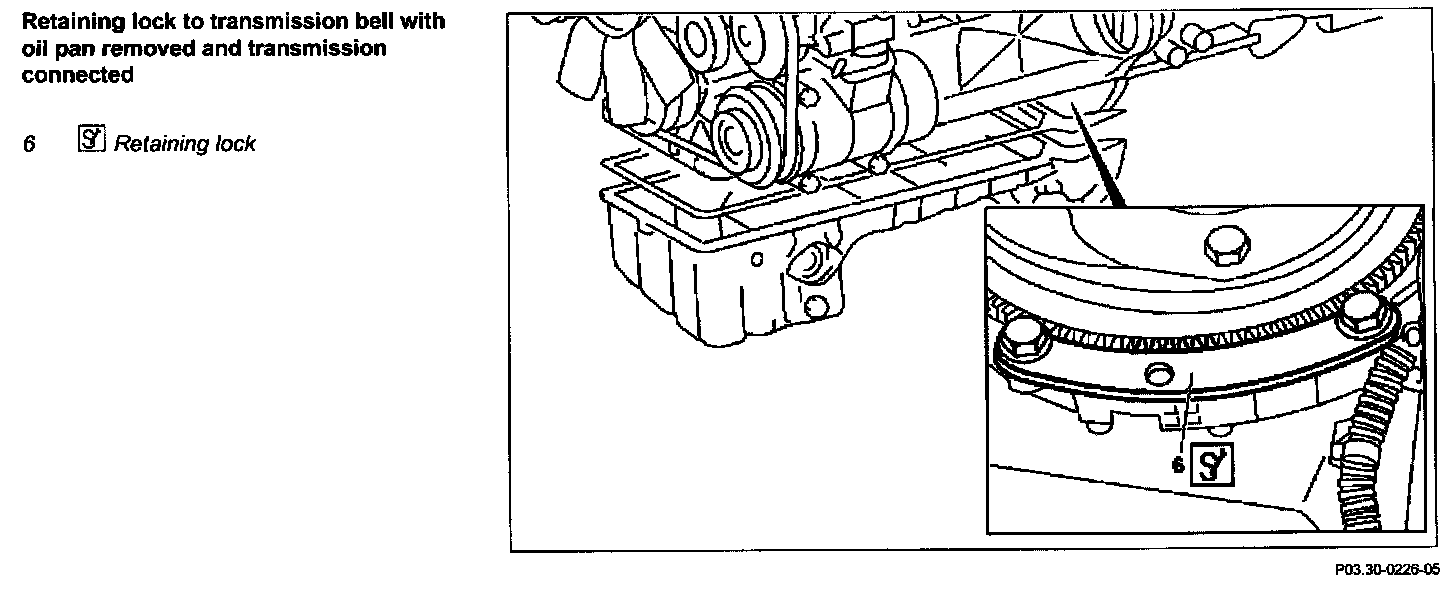

Retaining Lock To Transmission Bell With Oil Pan Removed And Transmission Connected:

Fig. item, etc. Work Instructions
Remove bottom noise encapsulation
3 Retaining lock
- Allow blocking device (6) to engage in ring gear, bolt on to oil pan.

CAUTION:
- Use bolts (4) M6 x 90 otherwise the threads in the rear end cover will be damaged.
- If necessary, rotate engine at crankshaft. Pay attention to tightening torque.


5 Retaining lock
- Model 140.1
- Insert into starter opening and allow to engage in ring gear, with starter removed.
- If necessary, rotate engine at crankshaft.

6 Retaining lock
- Allow to engage in ring gear, bolt on to transmission bell, with oil pan removed.
- If necessary, rotate engine at crankshaft.
