Drive Belt

LAYOUT OF POLY-V-BELT DRIVE:

The engine is equipped with two poly-V-belts.

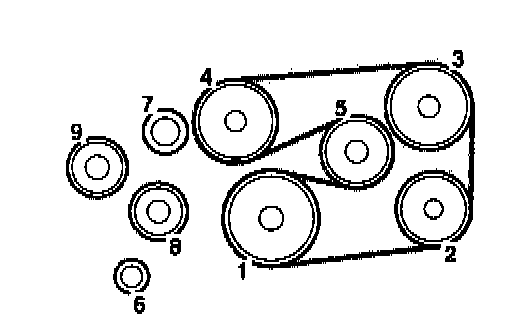

C 230 Kompressor routing, belt I:

C 230 Kompressor routing, belt I:

1 Crankshaft
2 Air conditioner compressor
3 Power steering pump
4 Coolant pump
5 Belt tensioner

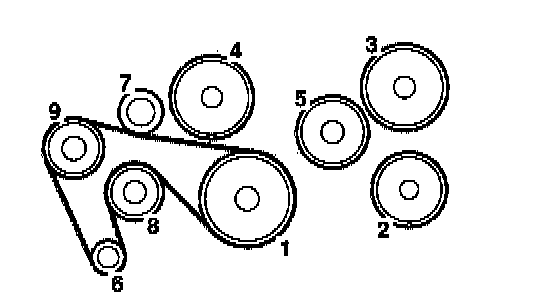

C 230 Kompressor routing, belt II:

C 230 Kompressor routing, belt II:

6 Generator (alternator)
7 Idler pulley
8 Belt tensioner
9 Supercharger

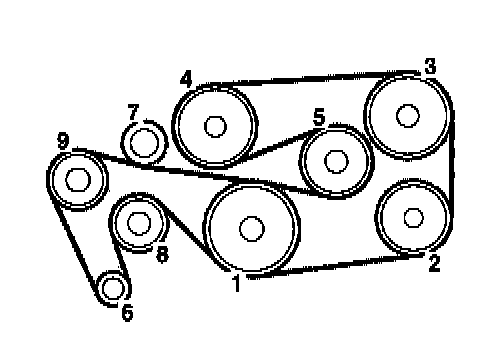

C 230 Kompressor routings combined, belt I and belt II:

C 230 Kompressor routings combined, belt I and belt II:

1 Crankshaft
2 Air conditioner compressor
3 Power steering pump
4 Coolant pump
5 Belt tensioner
6 Generator (alternator)
7 Idler pulley
8 Belt tensioner
9 Supercharger
