Headlamp Cleaning System (HCS) PE82.15-U-2000E

Headlamp Cleaning System (HCS) PE82.15-U-2000E

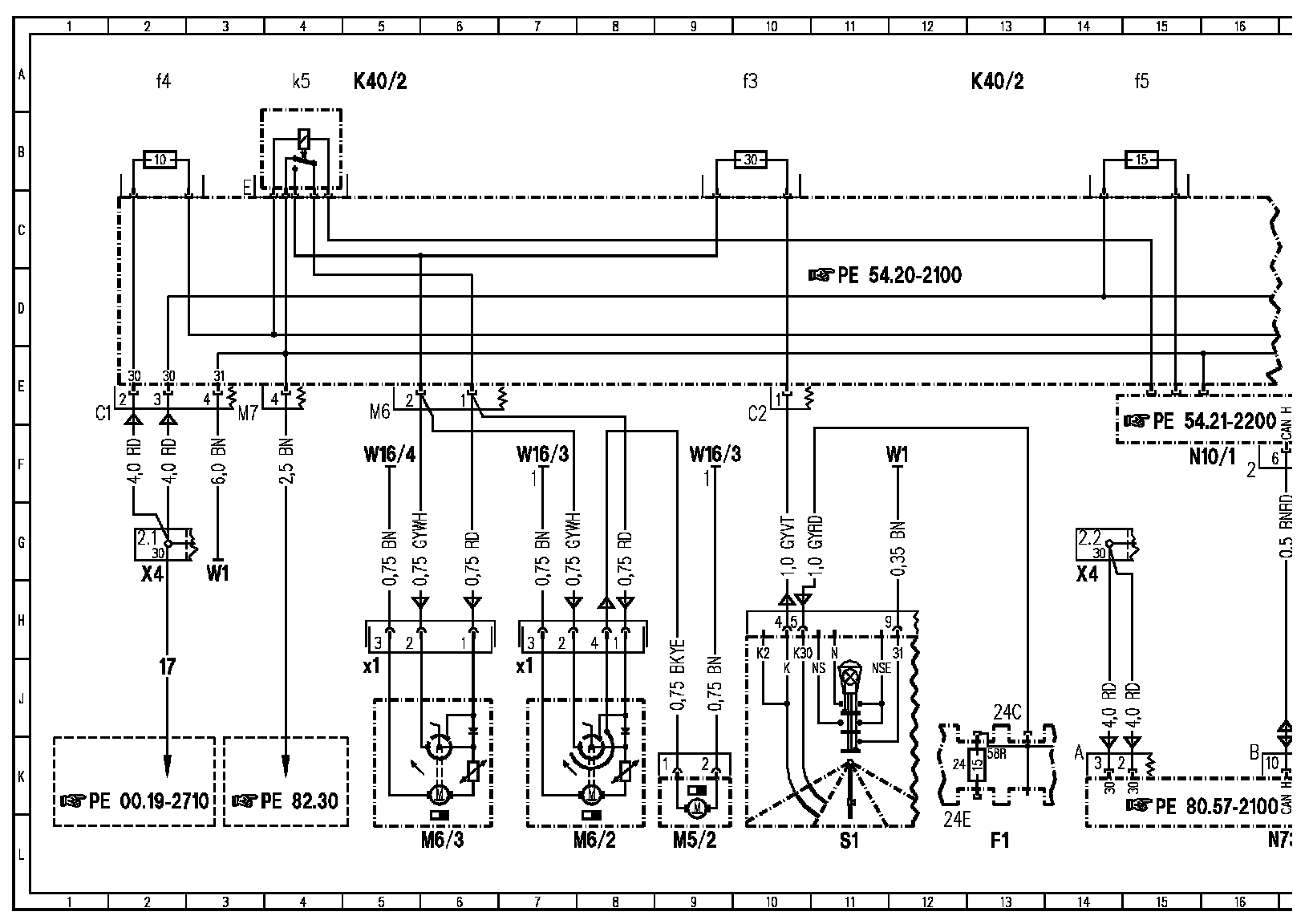

Wiring Diagram, Part 1:

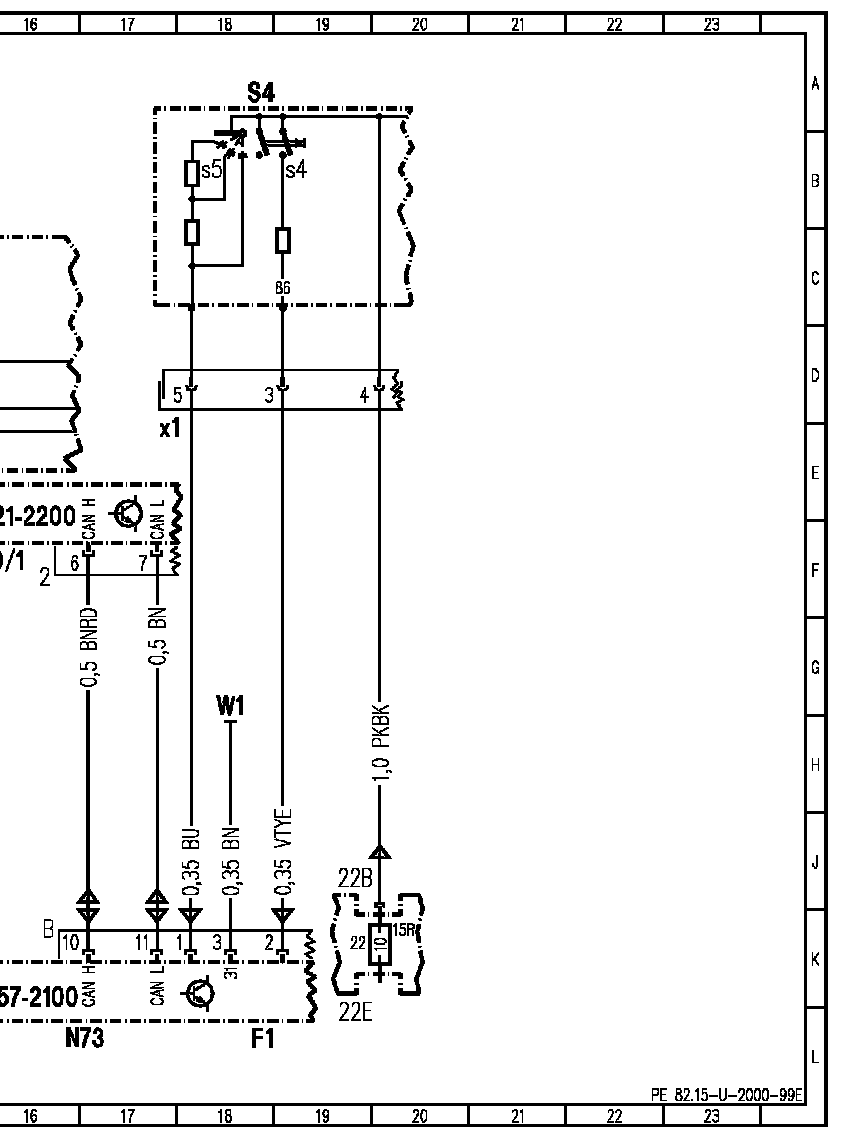

Wiring Diagram, Part 2:

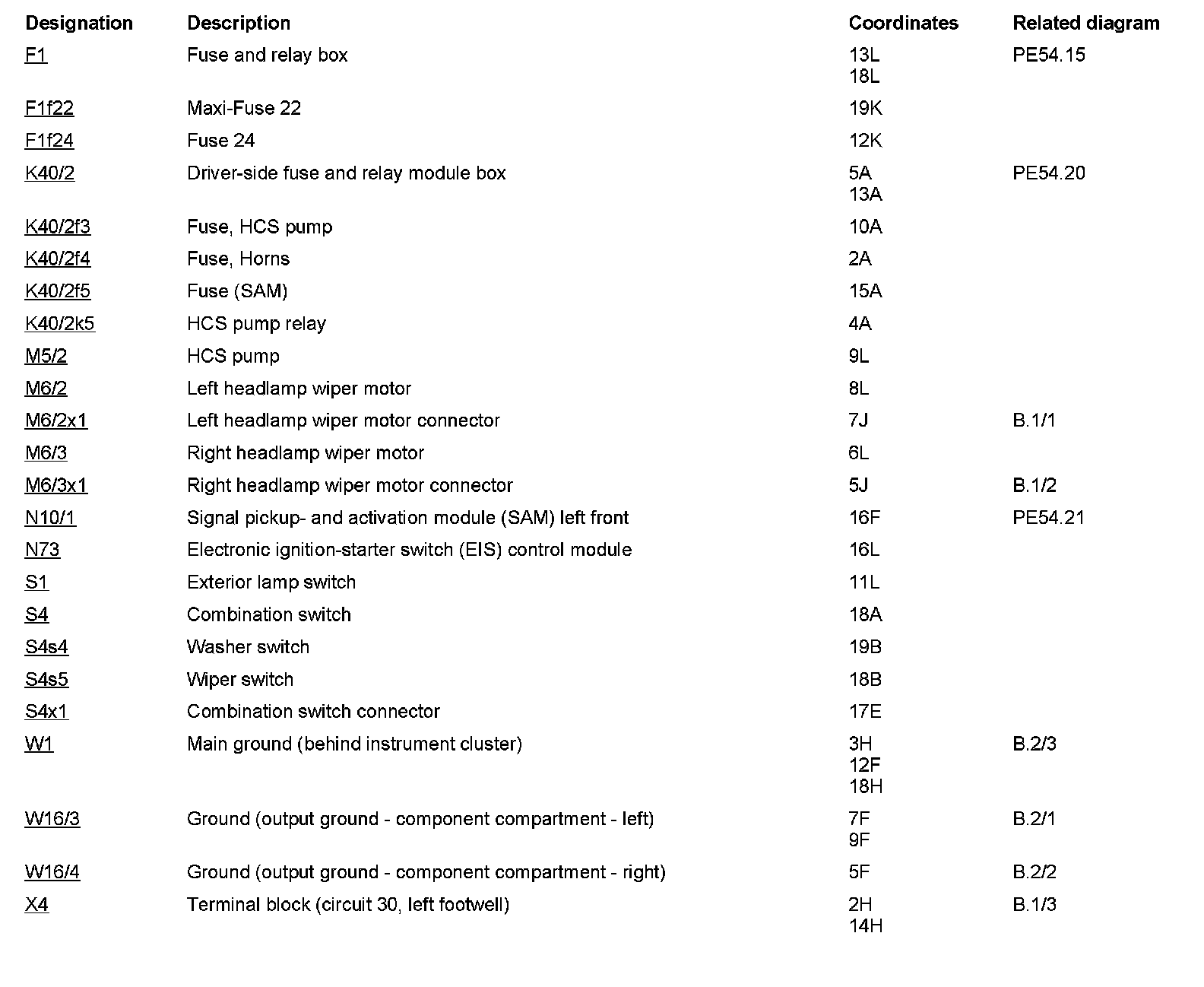

Component Description/Coordinates, F1 To X4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
