Front Passenger-Side Fuse and Relay Module (K40/4) PE54.20-U-2200C

Front Passenger-side Fuse And Relay Module (K40/4) PE54.20-U-2200C

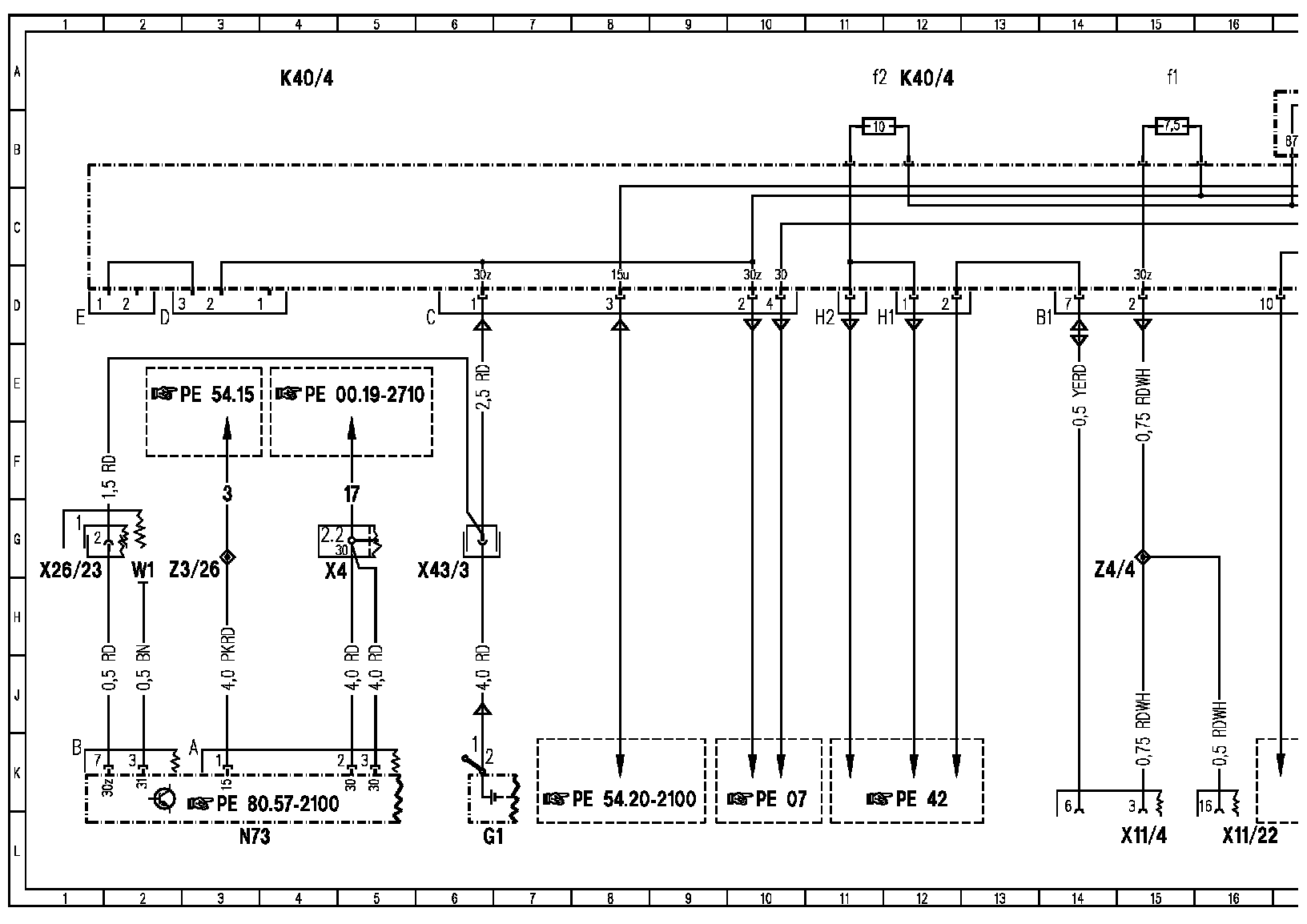

Wiring Diagram, Part 1:

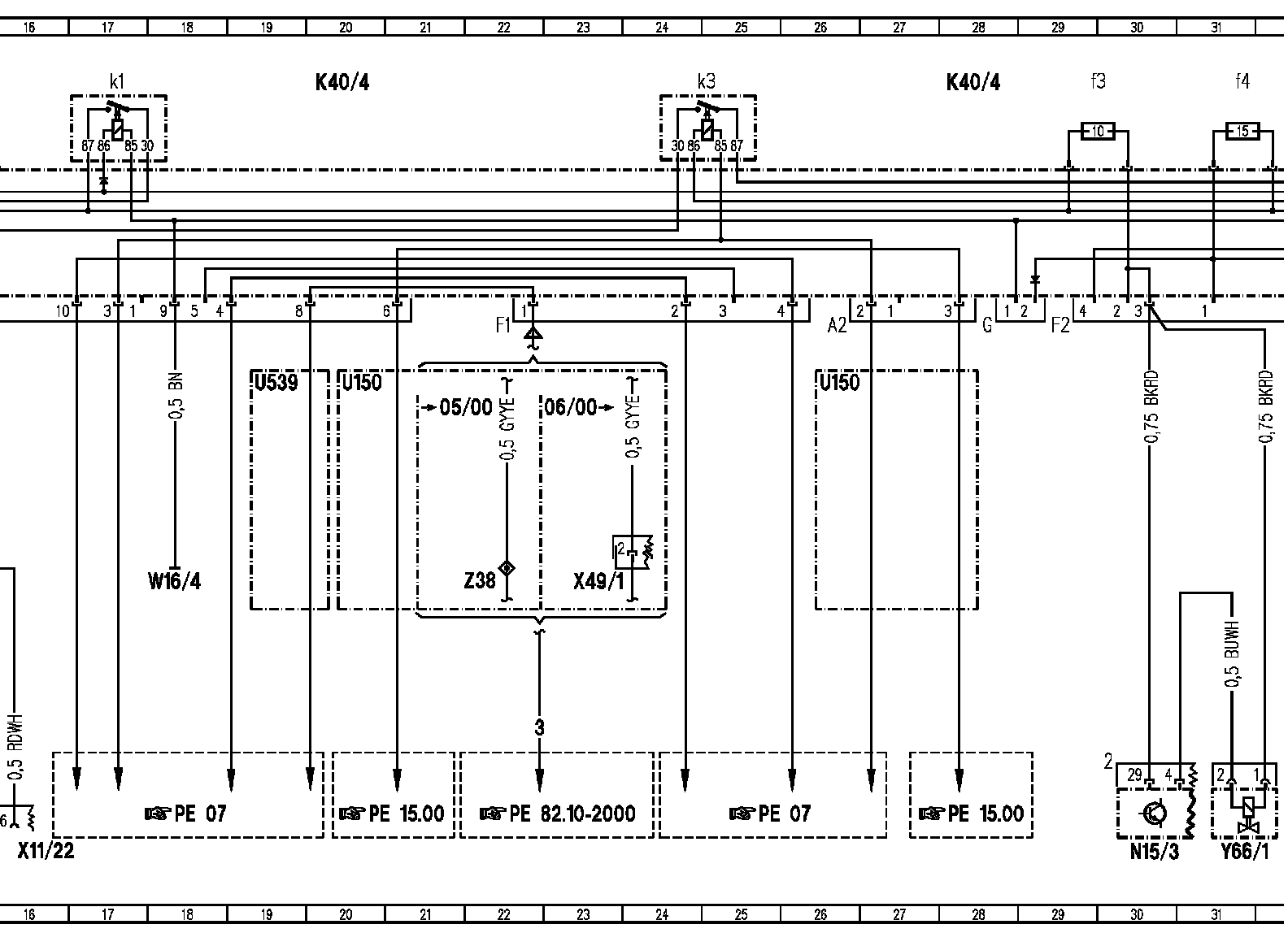

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

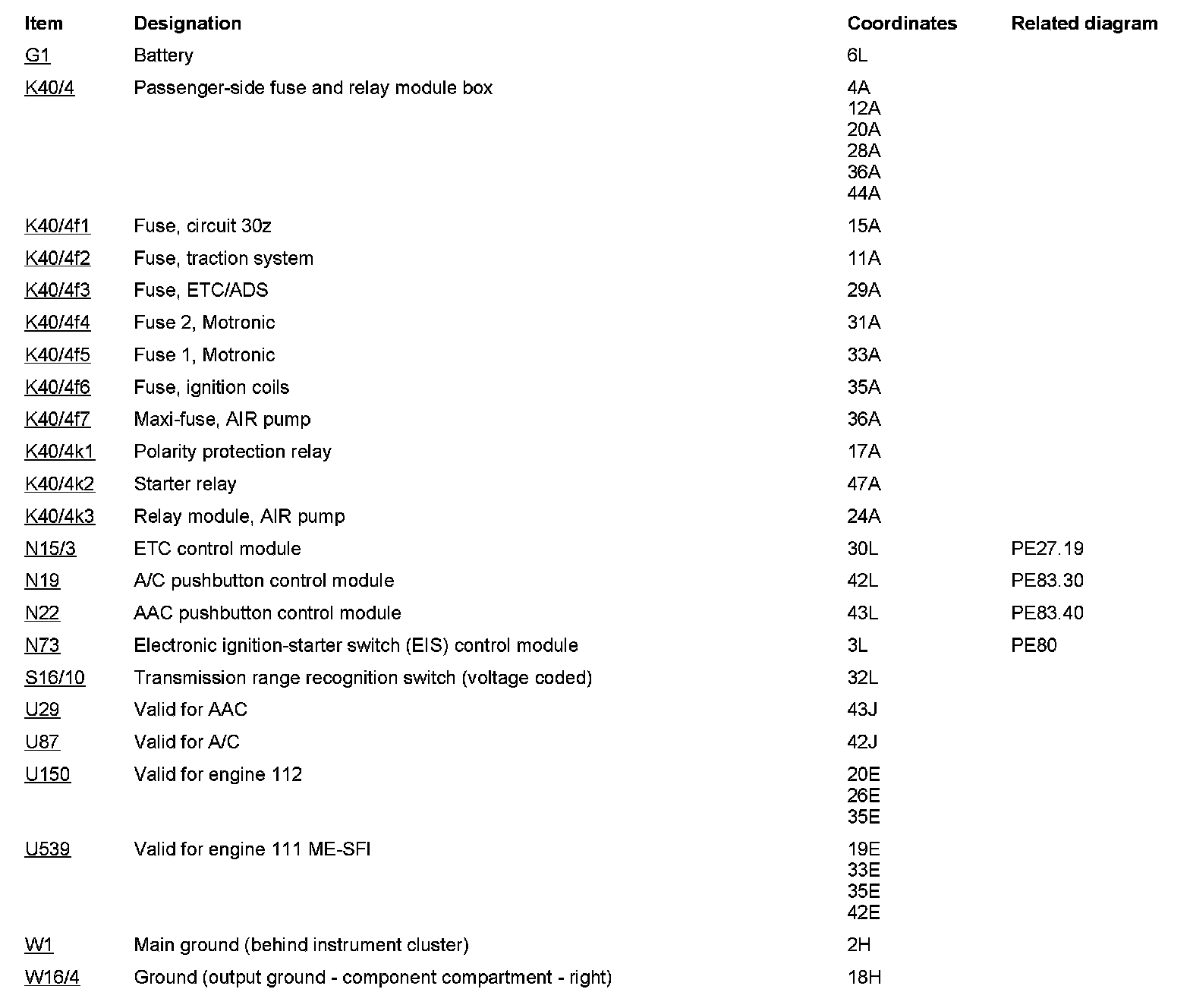

Component Description/Coordinates, G1 To W16/4:

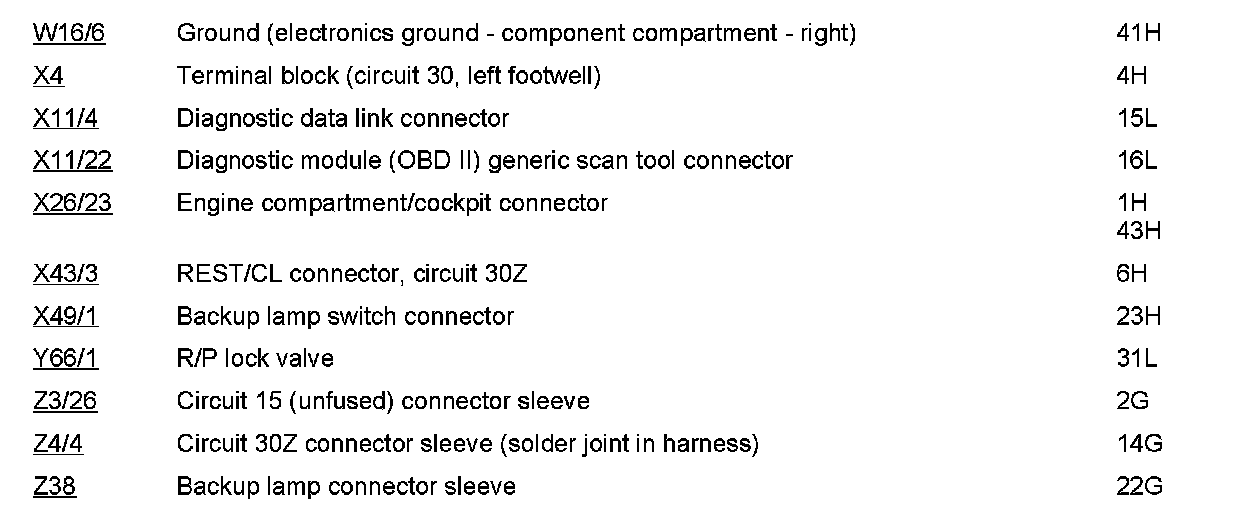

Component Description/Coordinates, W16/6 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
