Driver-Side Fuse and Relay Module (K40/2) PE54.20-U-2100B

Driver-side Fuse And Relay Module (K40/2) PE54.20-U-2100B

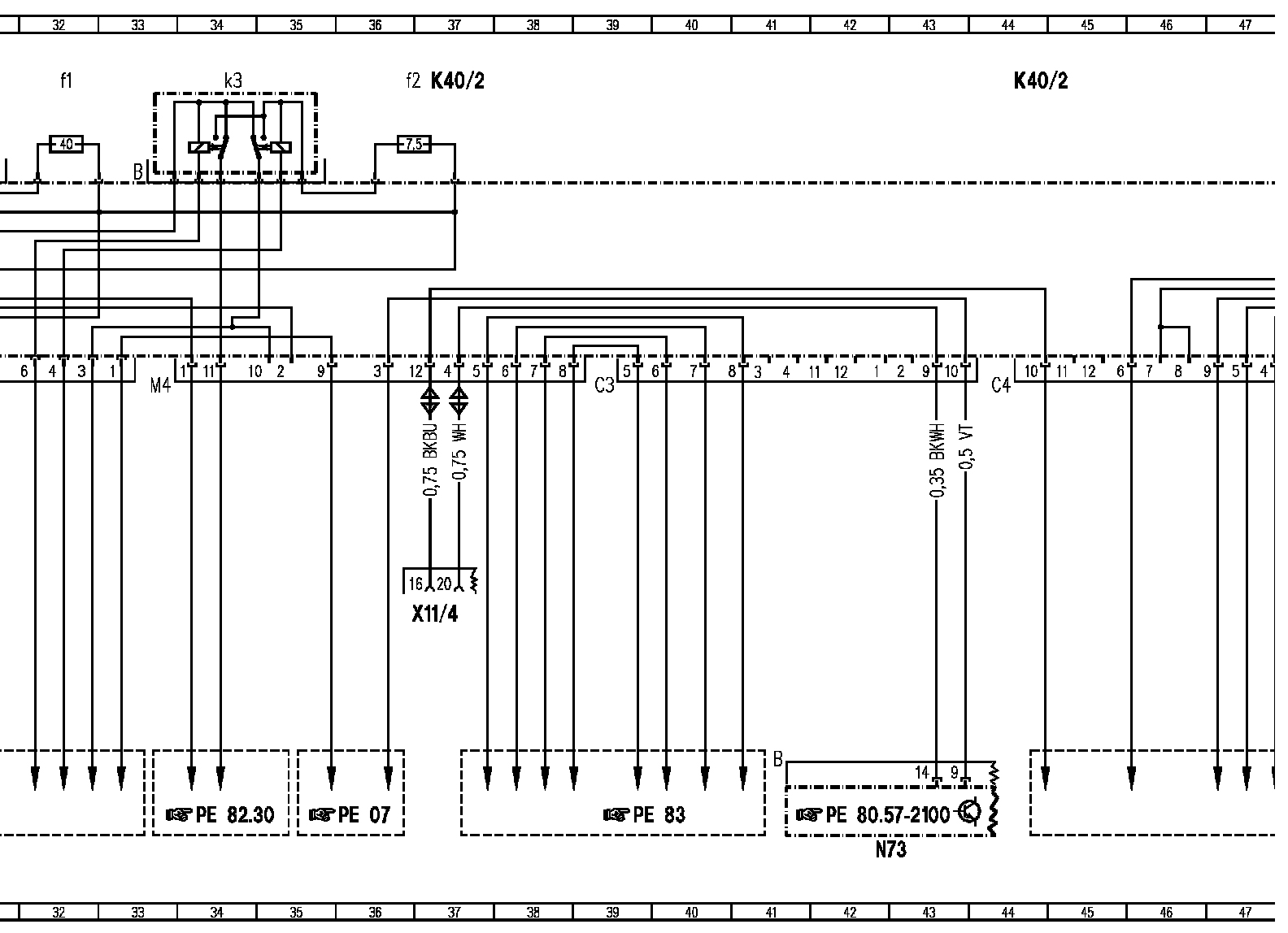

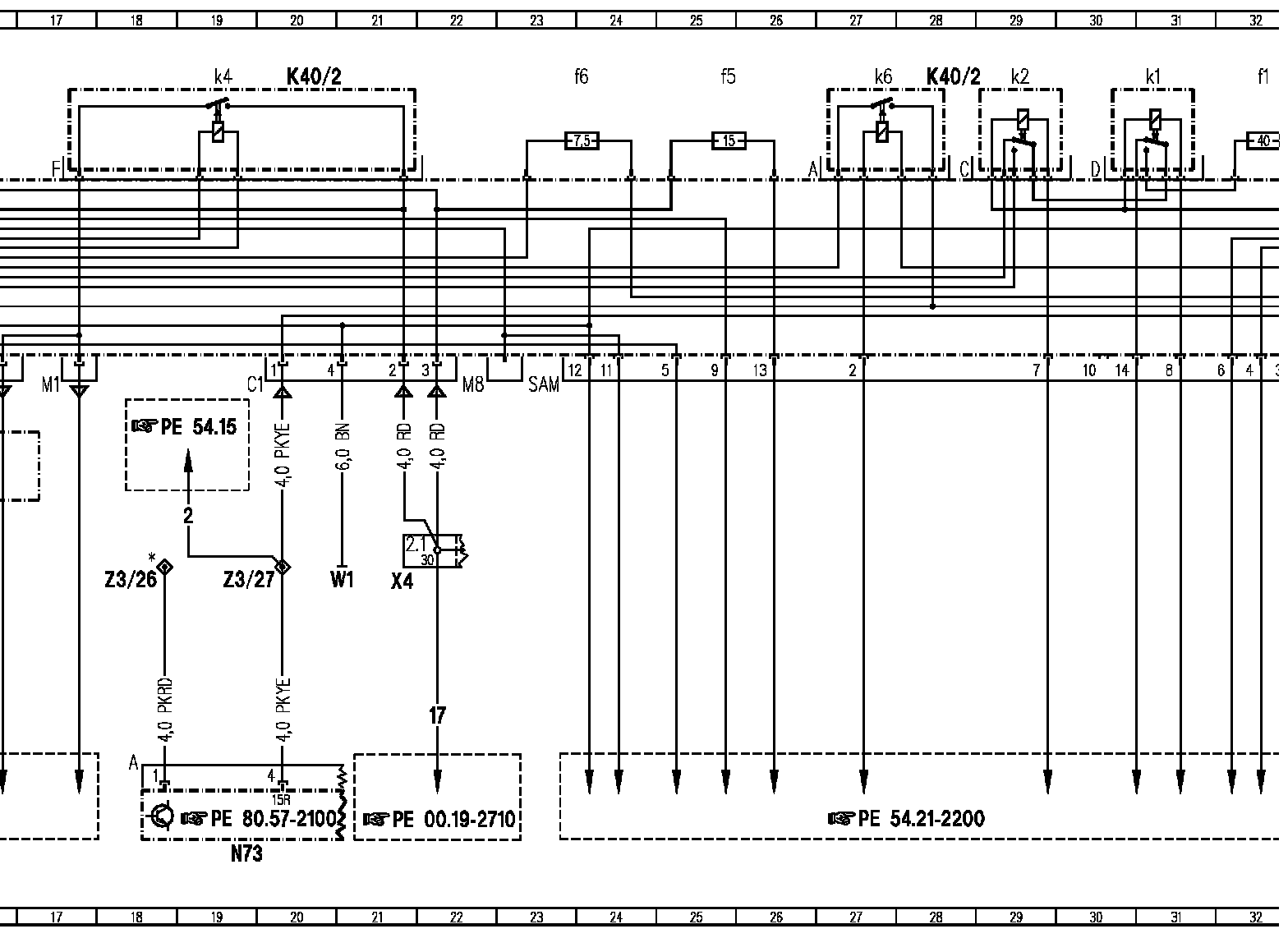

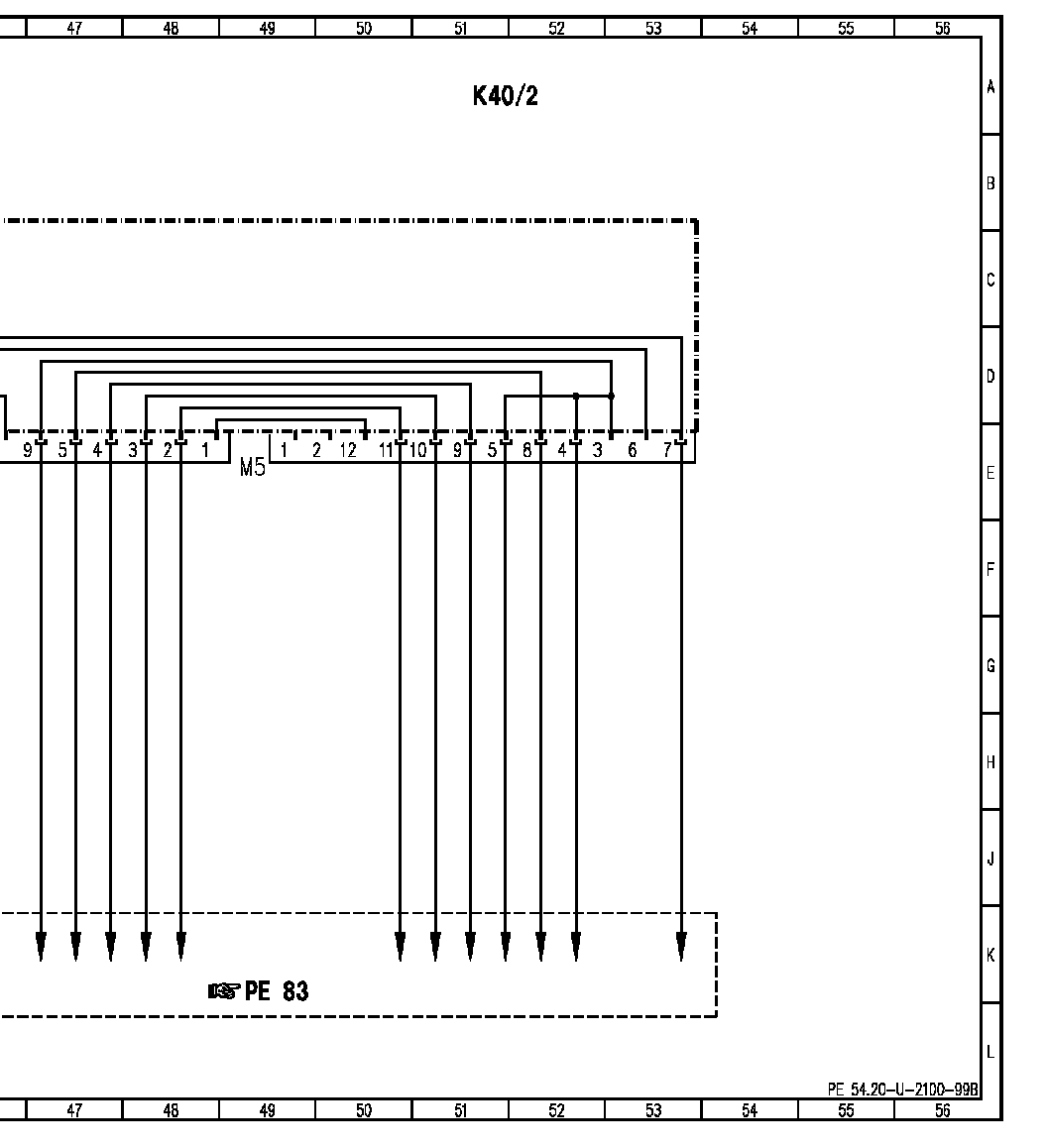

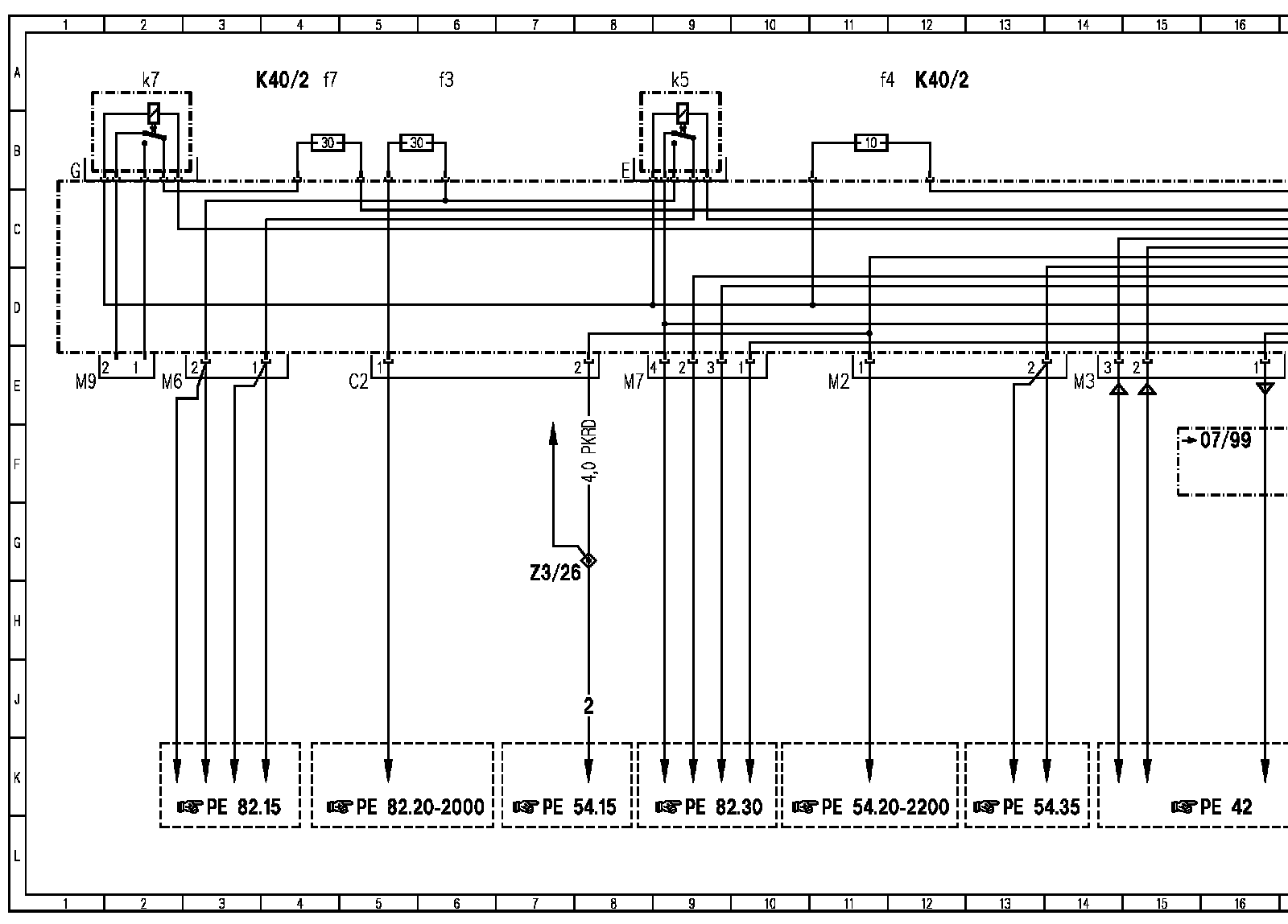

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

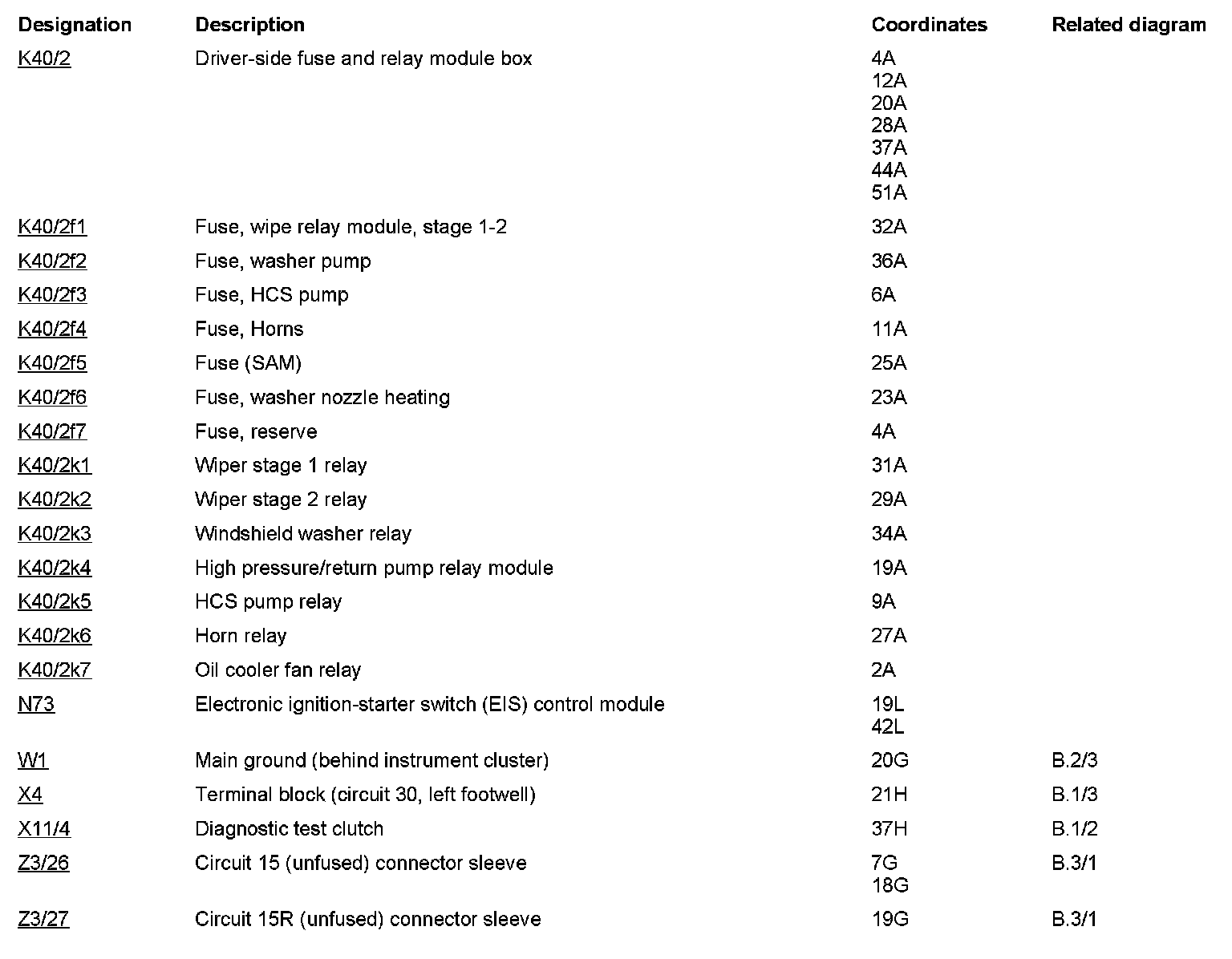

Component Description/Coordinates, K40/2 To Z3/27:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
