ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WD

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WD
- Interior compartment

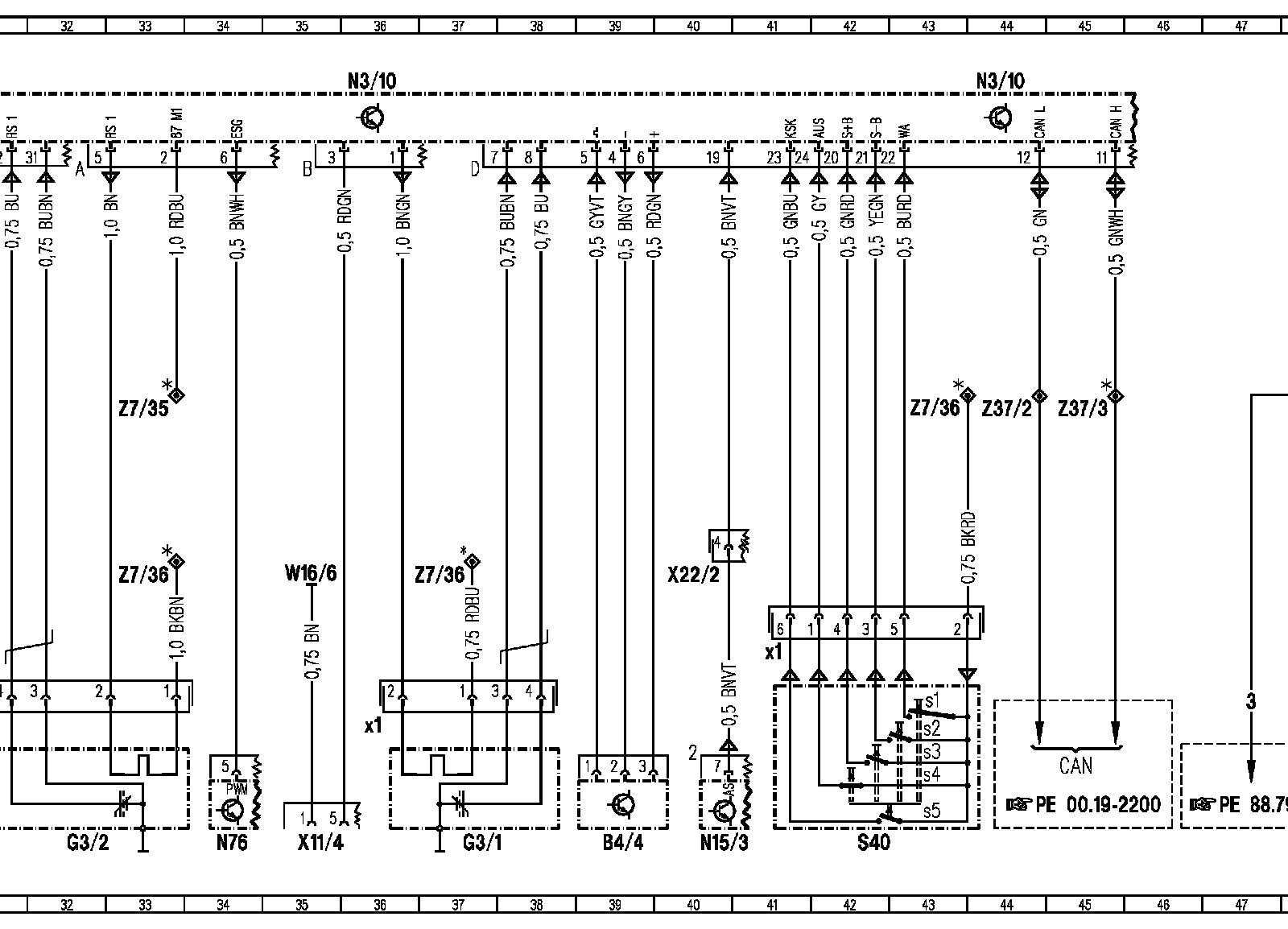

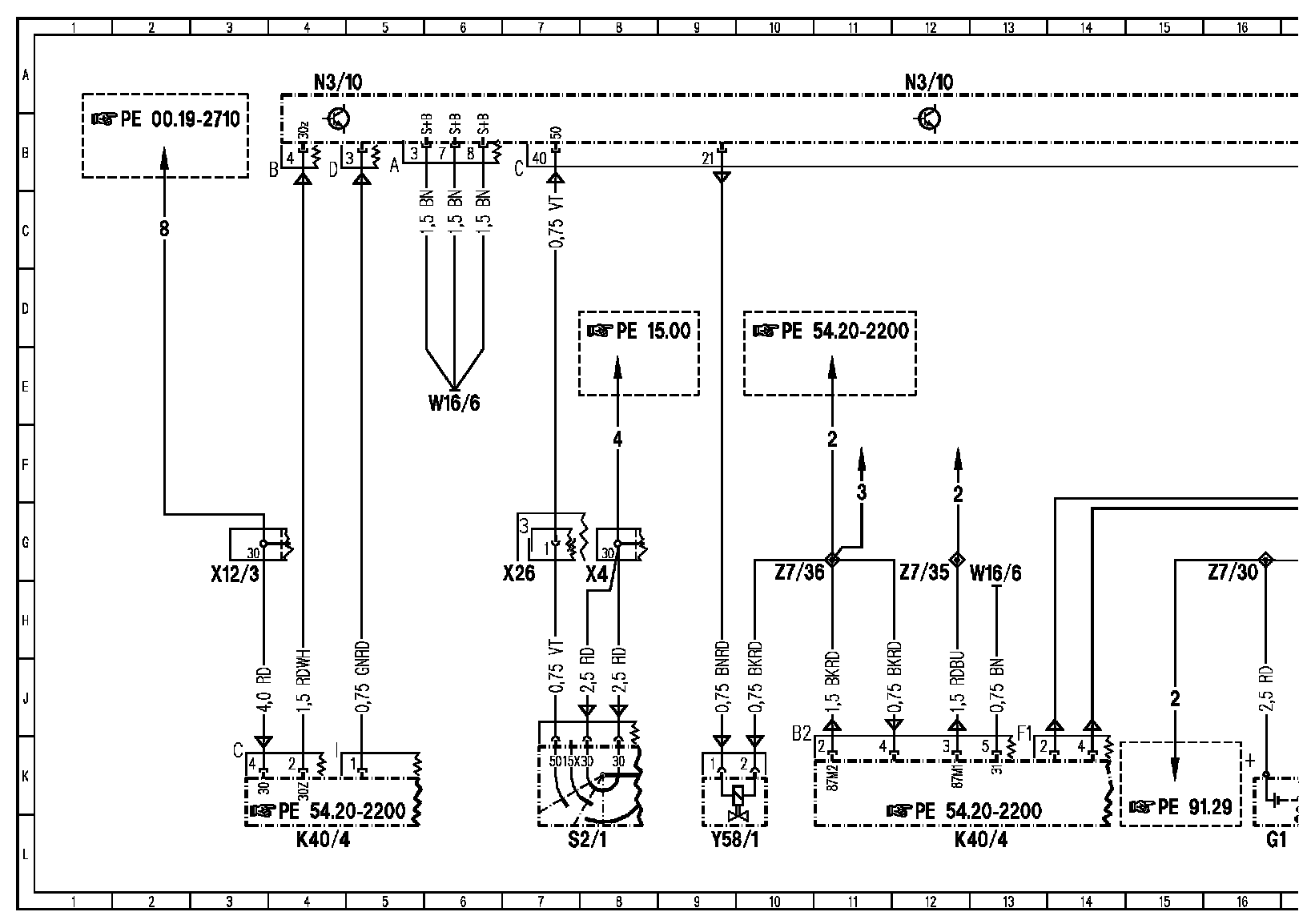

Wiring Diagram, Part 1:

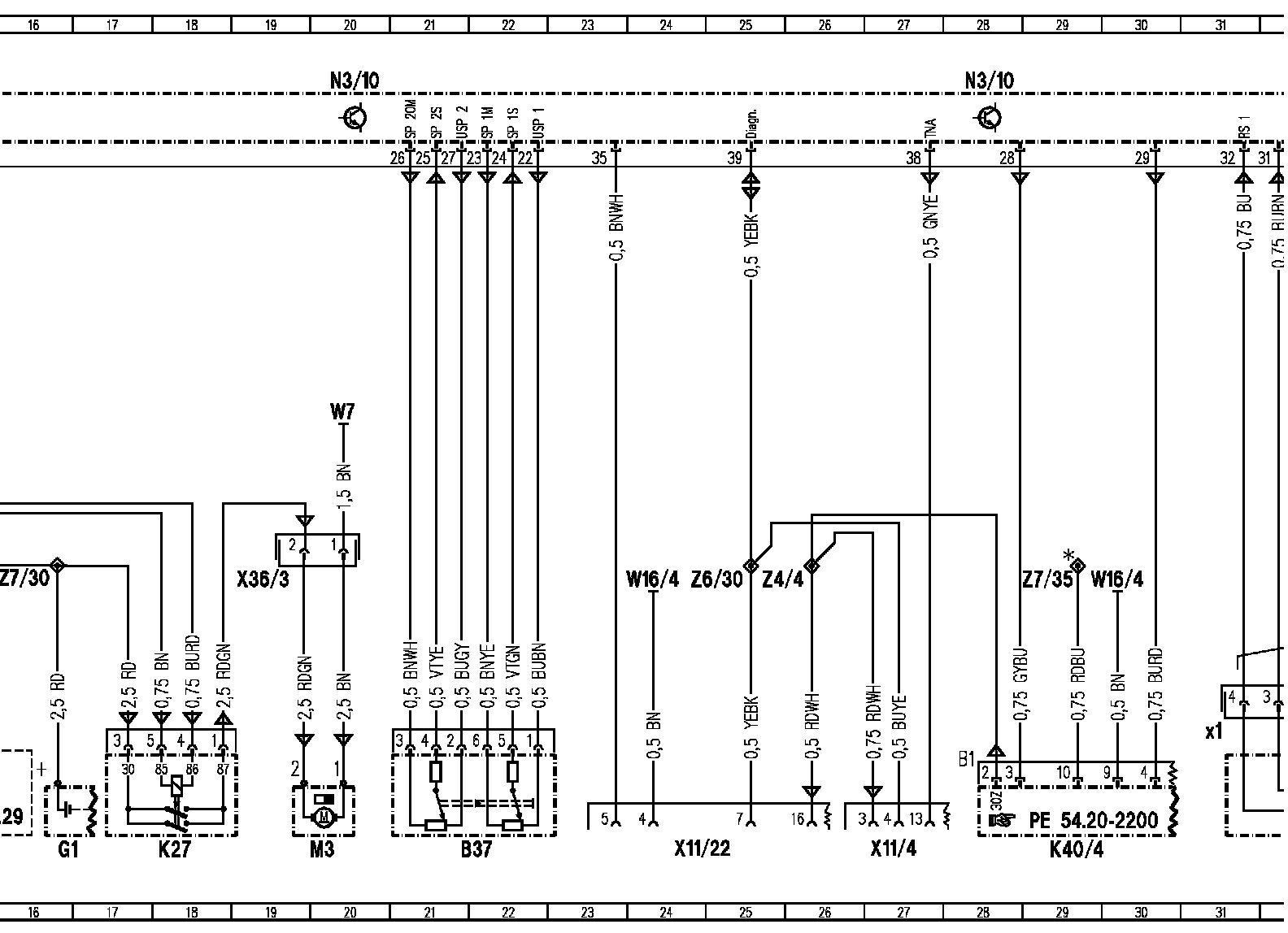

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

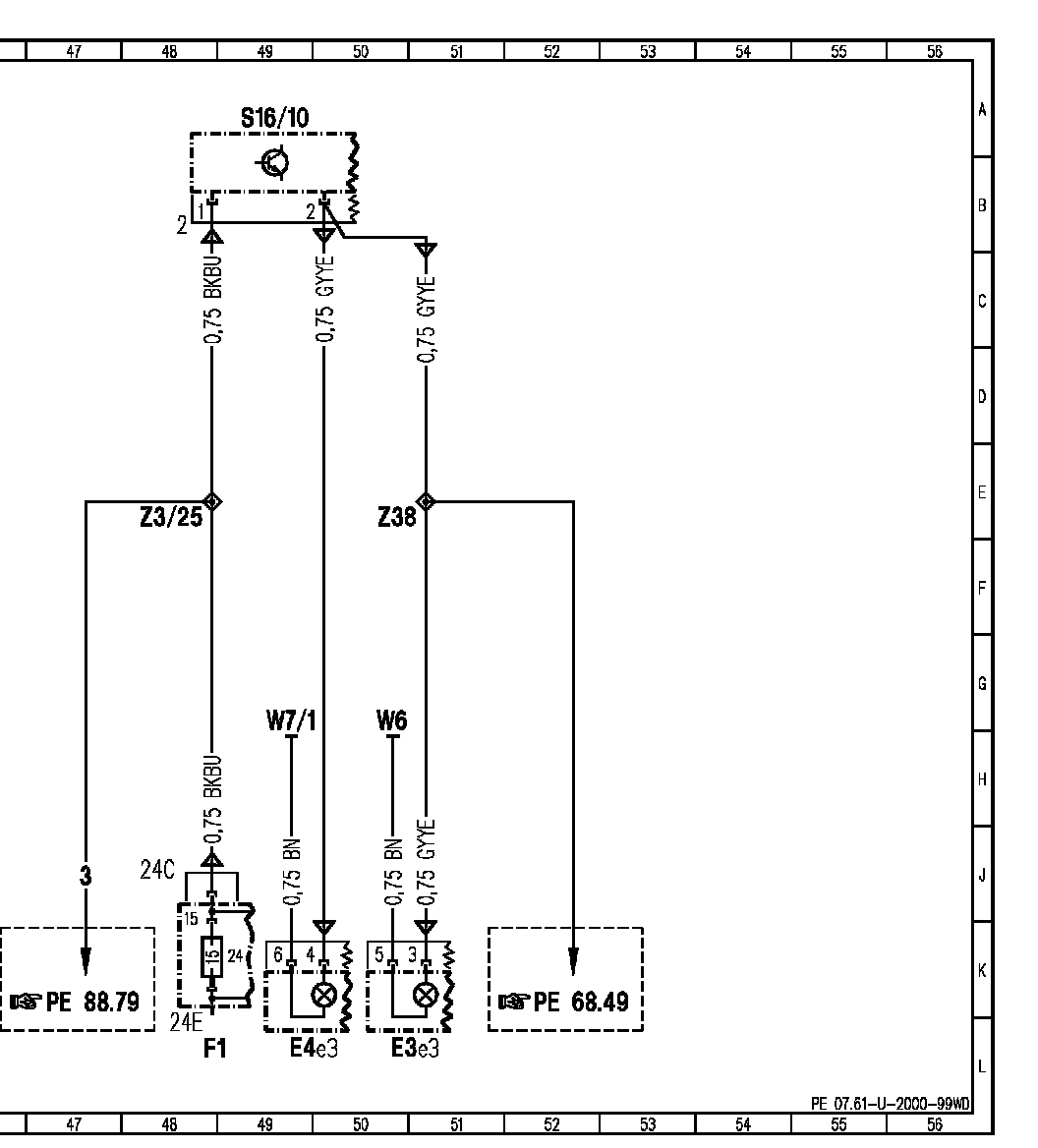

Wiring Diagram, Part 4:

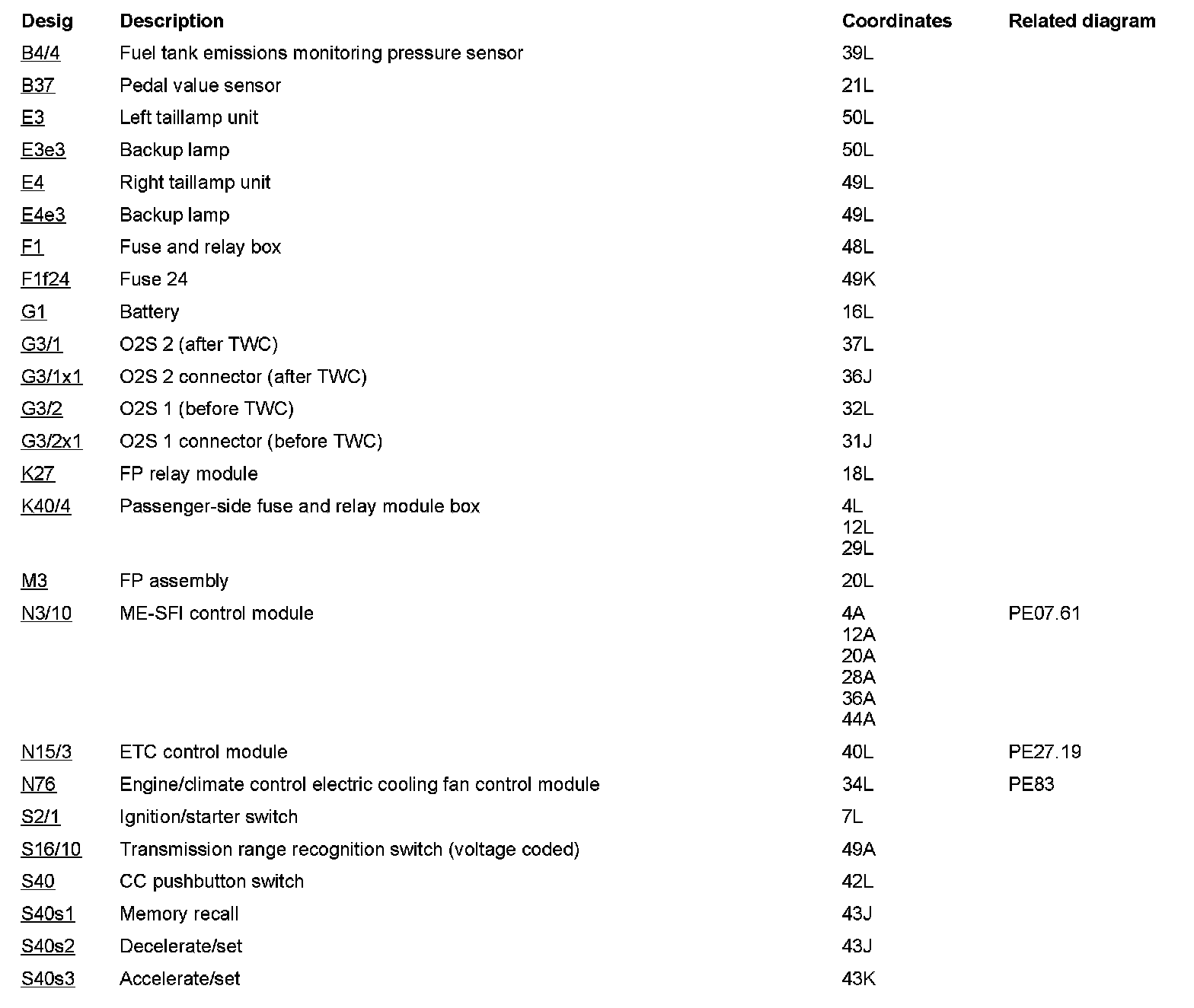

Component Description/Coordinates, B4/4 To S40s3:

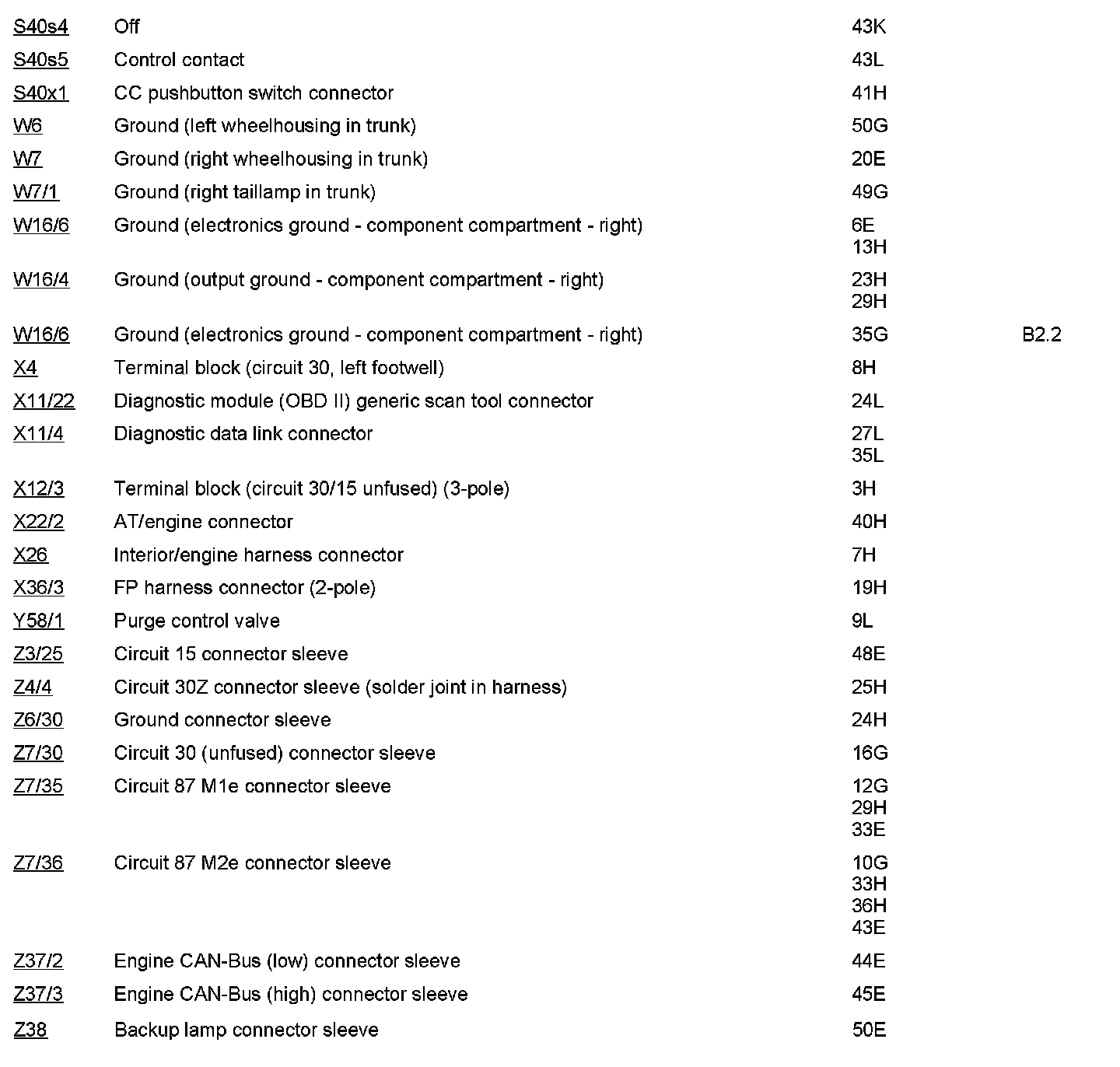

Component Description/Coordinates, S40s4 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
