ME-SFI Fuel Injection And Ignition System PE07.61-U-2000K

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000K
- Engine compartment / Frame floor system wiring harness
- with CODE (440a) Cruise control

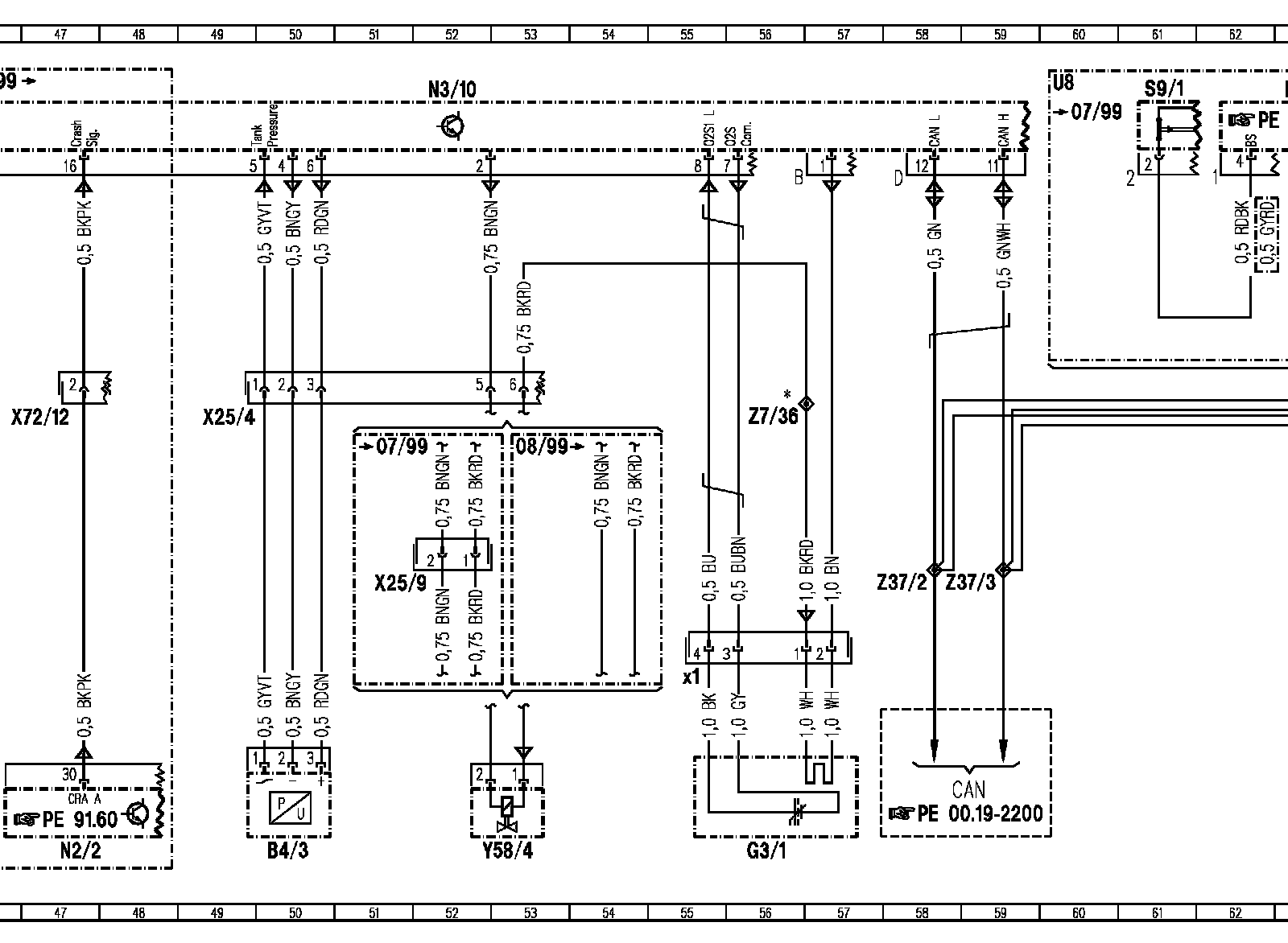

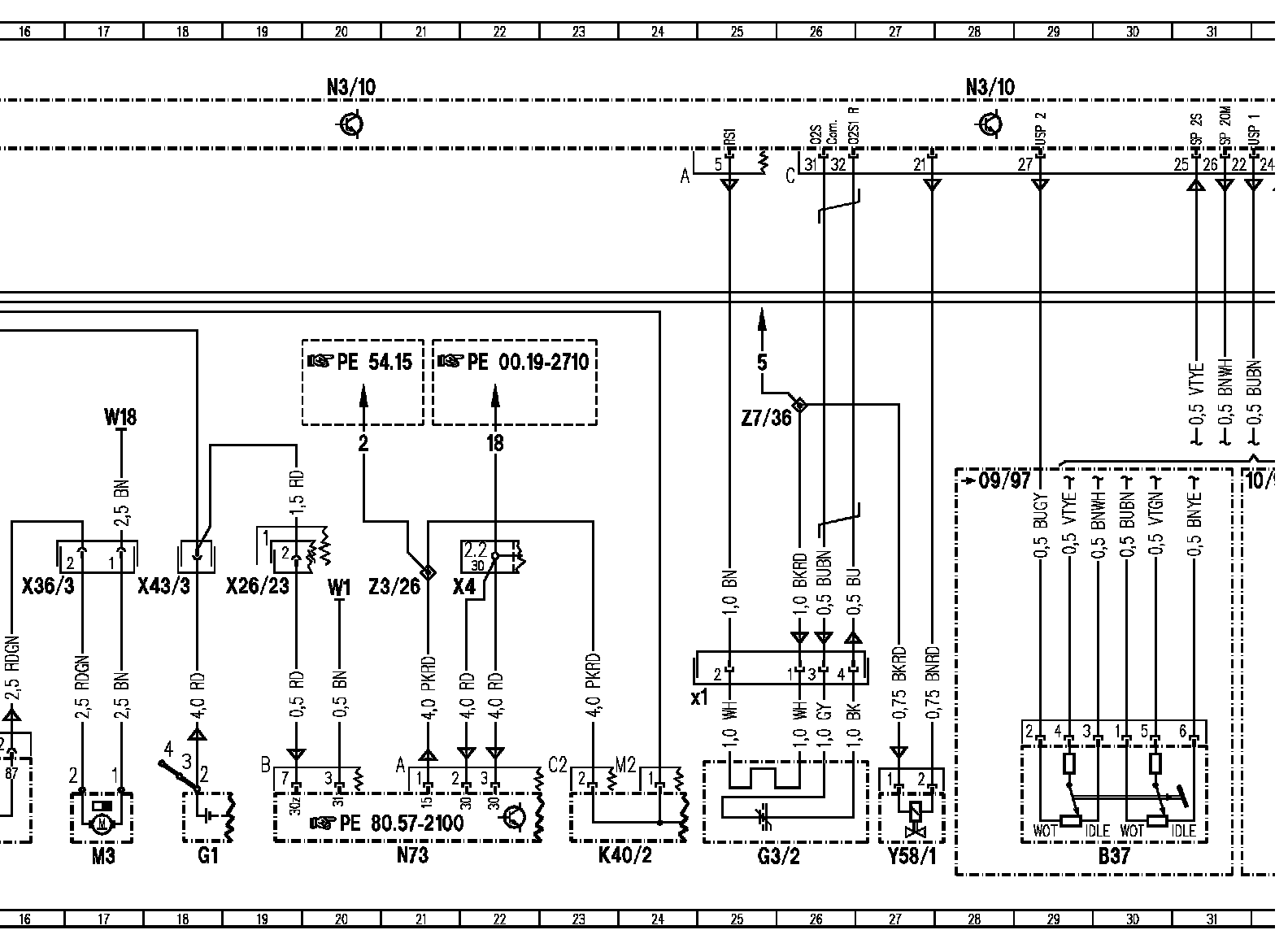

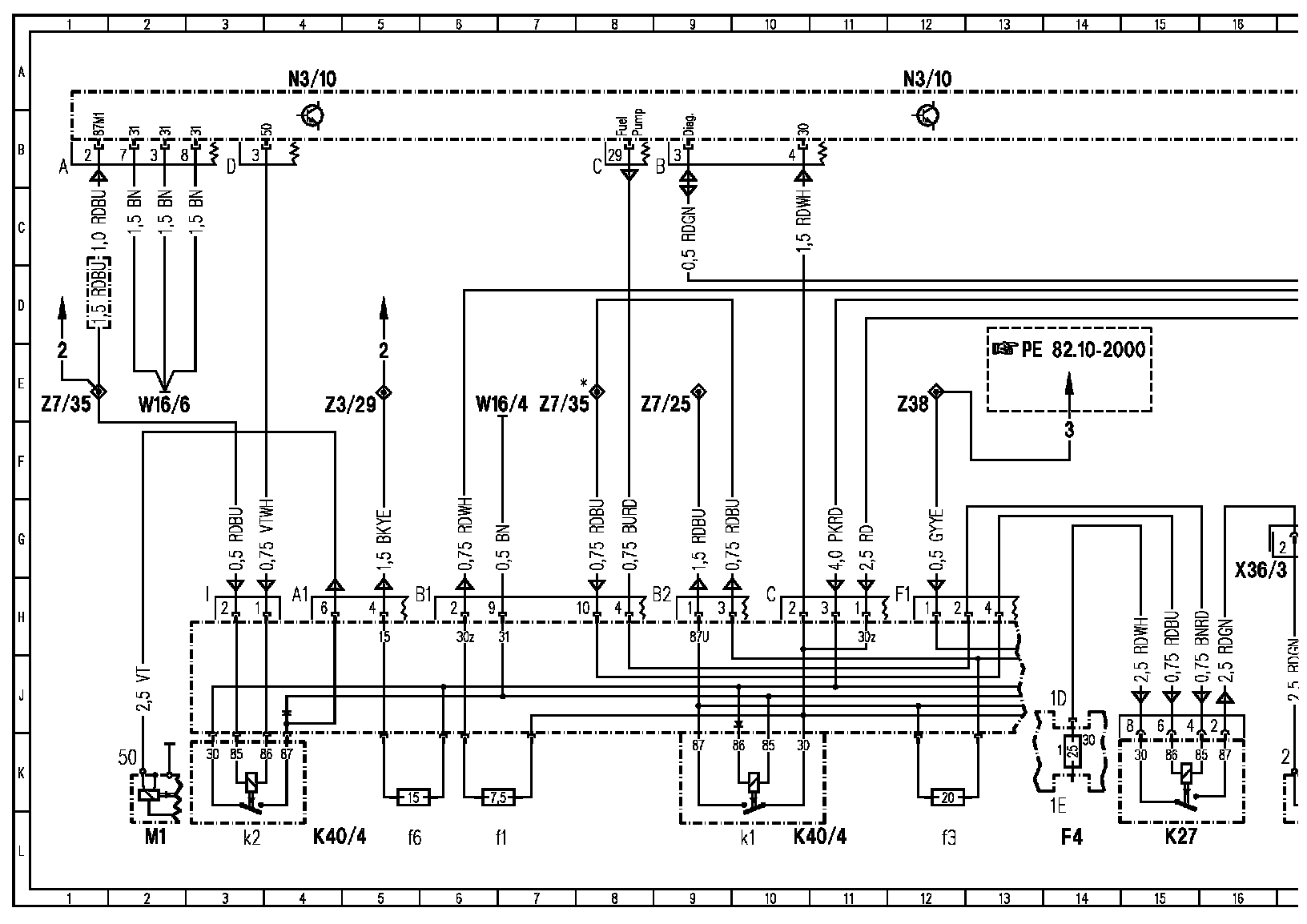

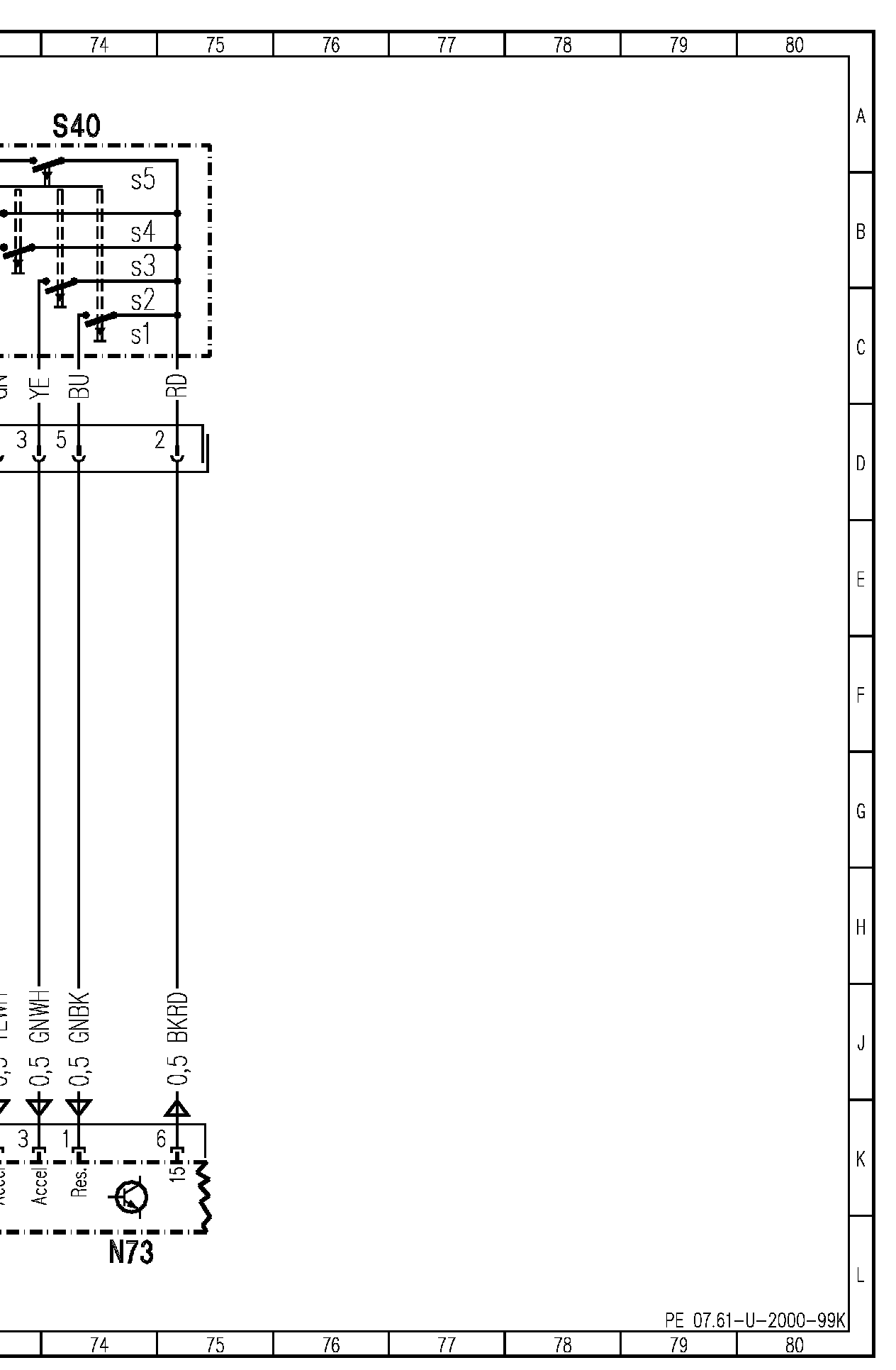

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

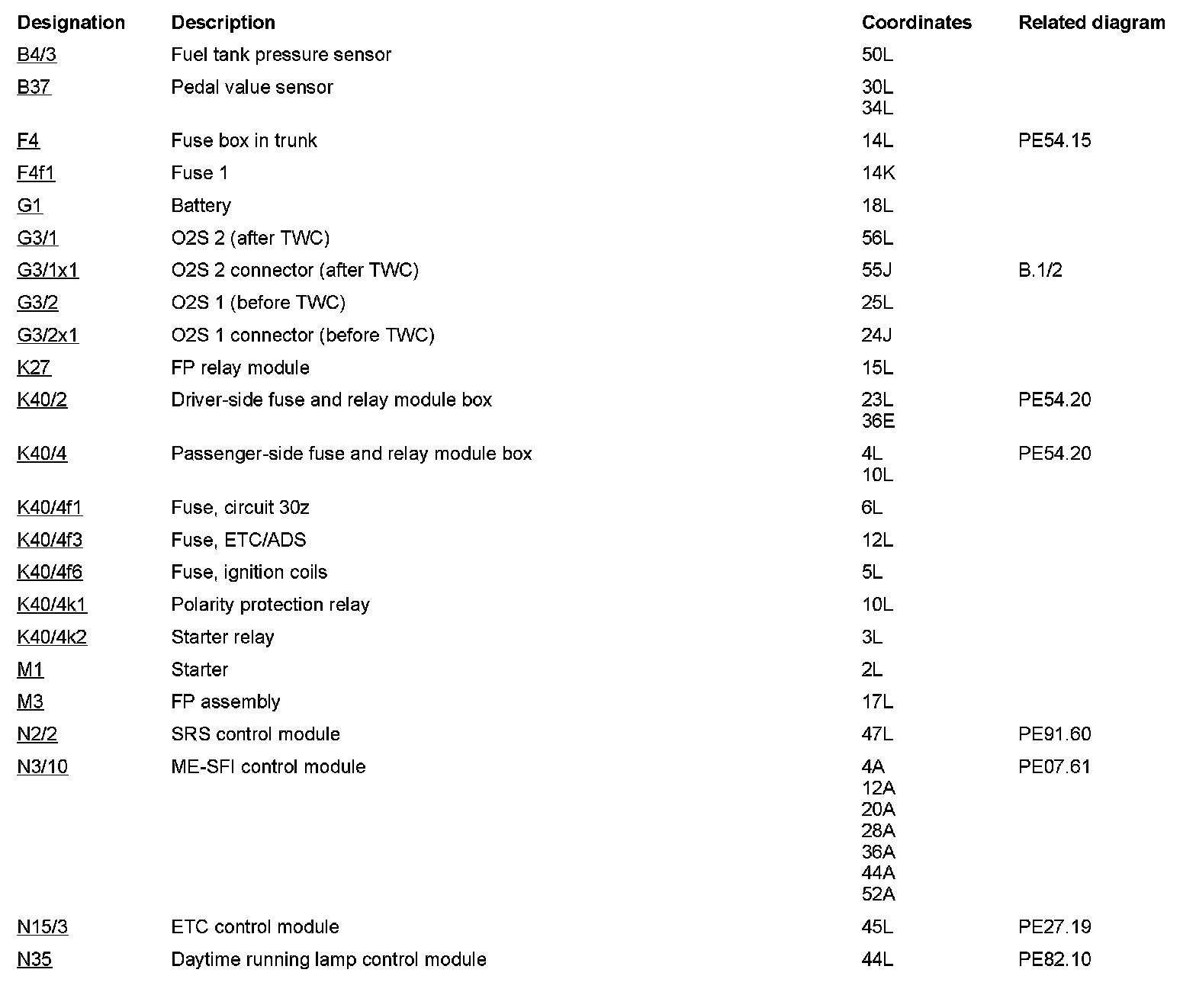

Component Description/Coordinates, B4/3 To N35:

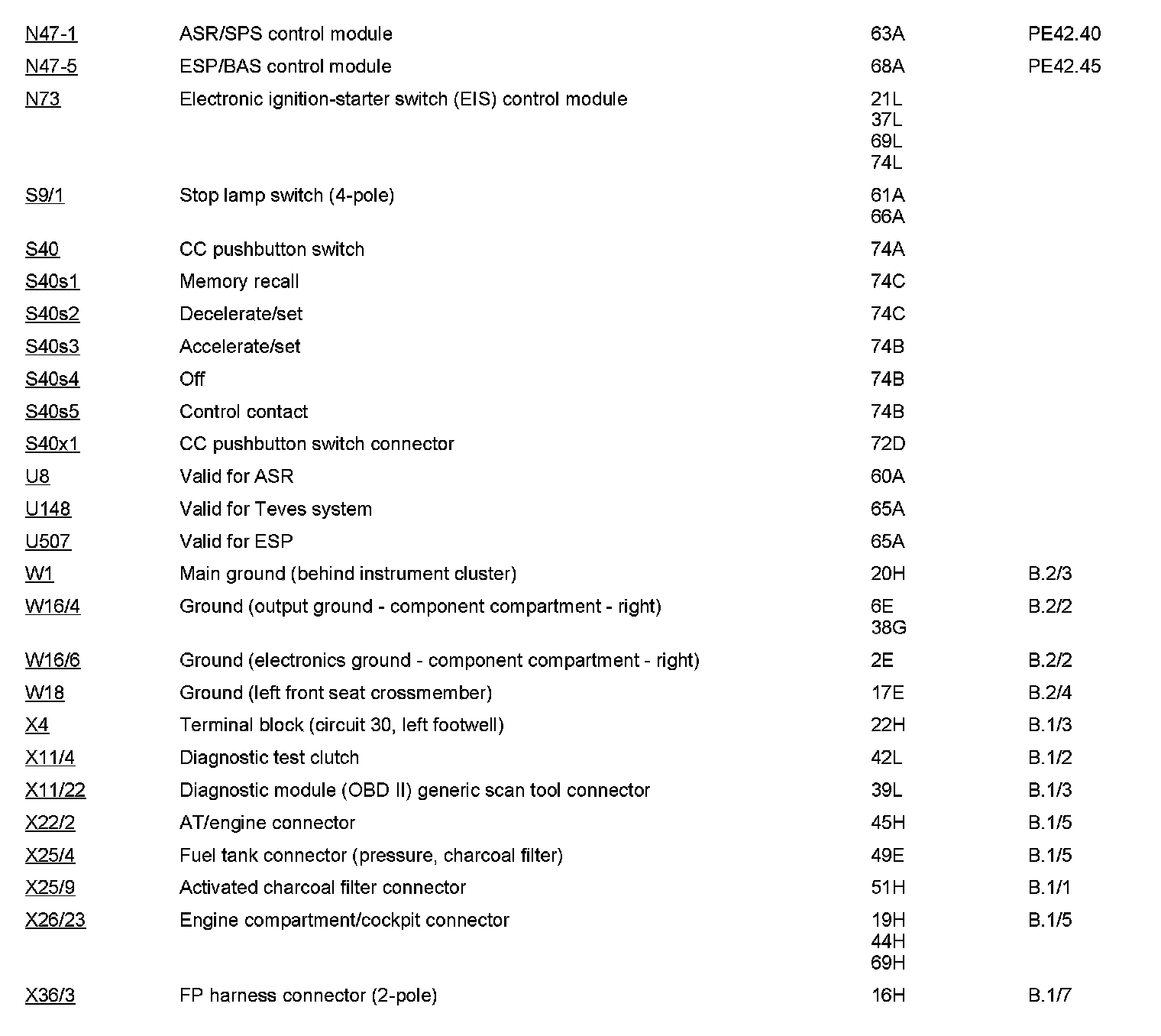

Component Description/Coordinates, N47-1 To X36/3:

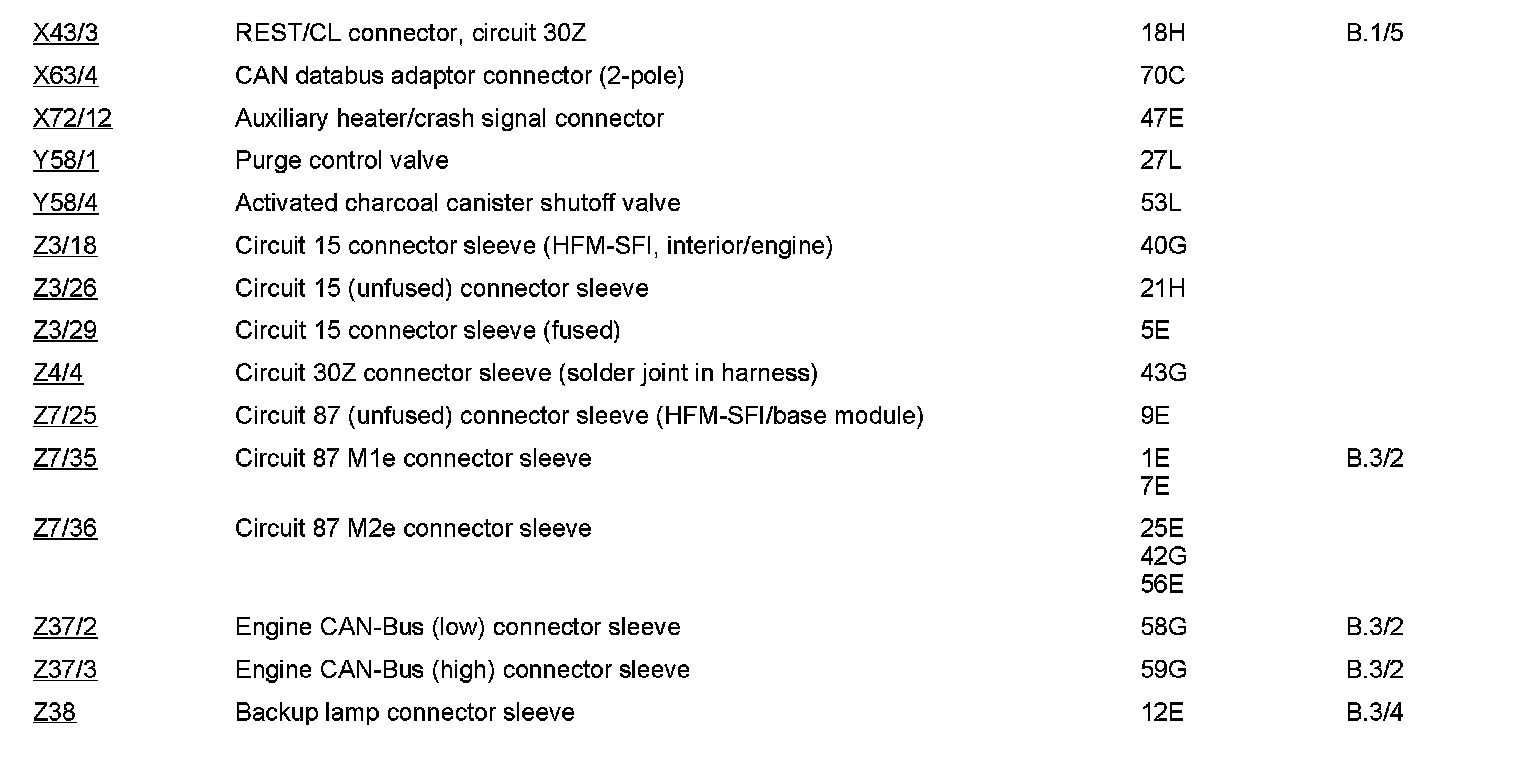

Component Description/Coordinates, X43/3 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
