Electronic Stability Program (ESP) PE42.45-U-2000NB

Electronic Stability Program (ESP) PE42.45-U-2000NB
- with CODE (472a) Electronic Stability Program (ESP)
- co Teves

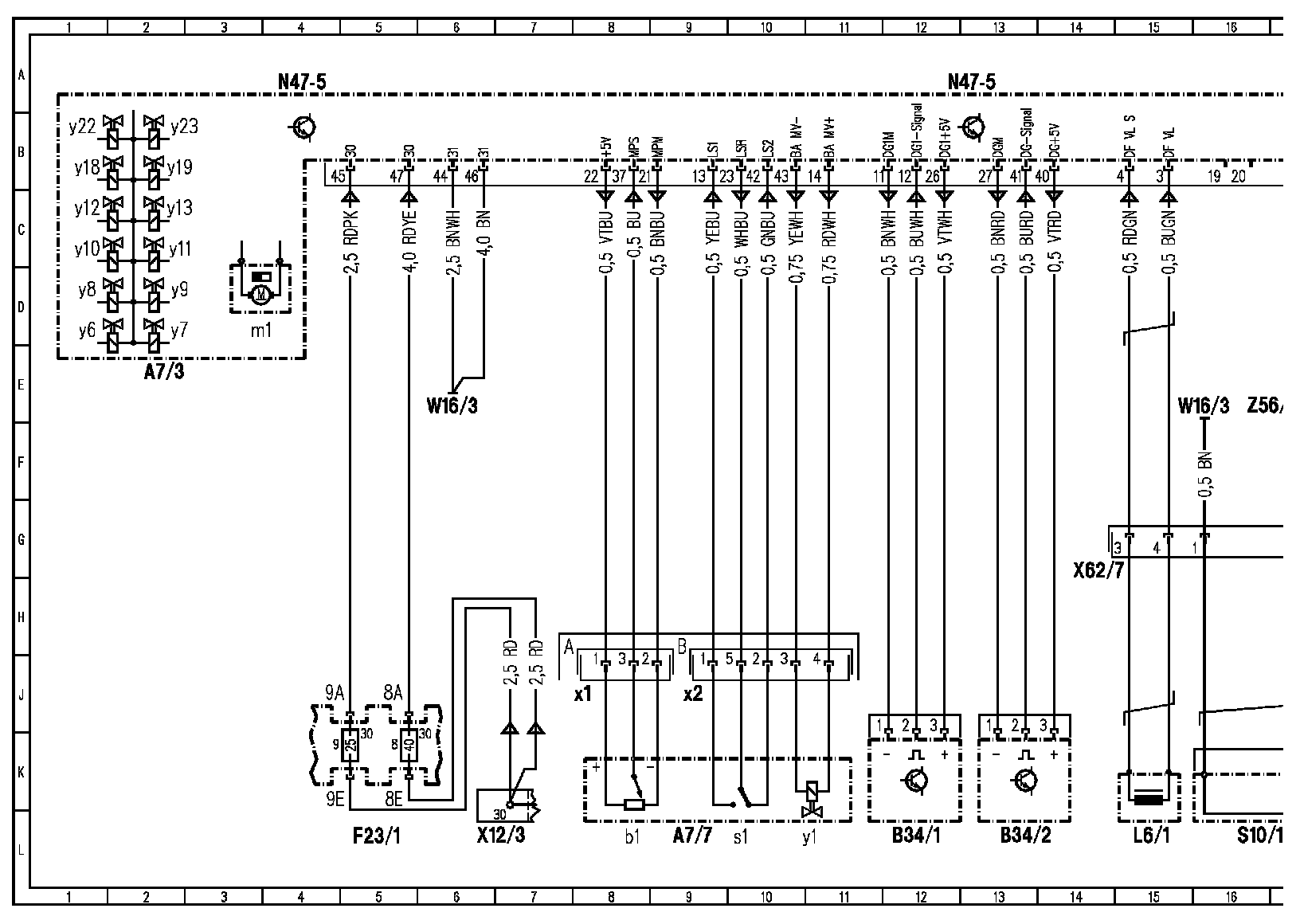

Wiring Diagram, Part 1:

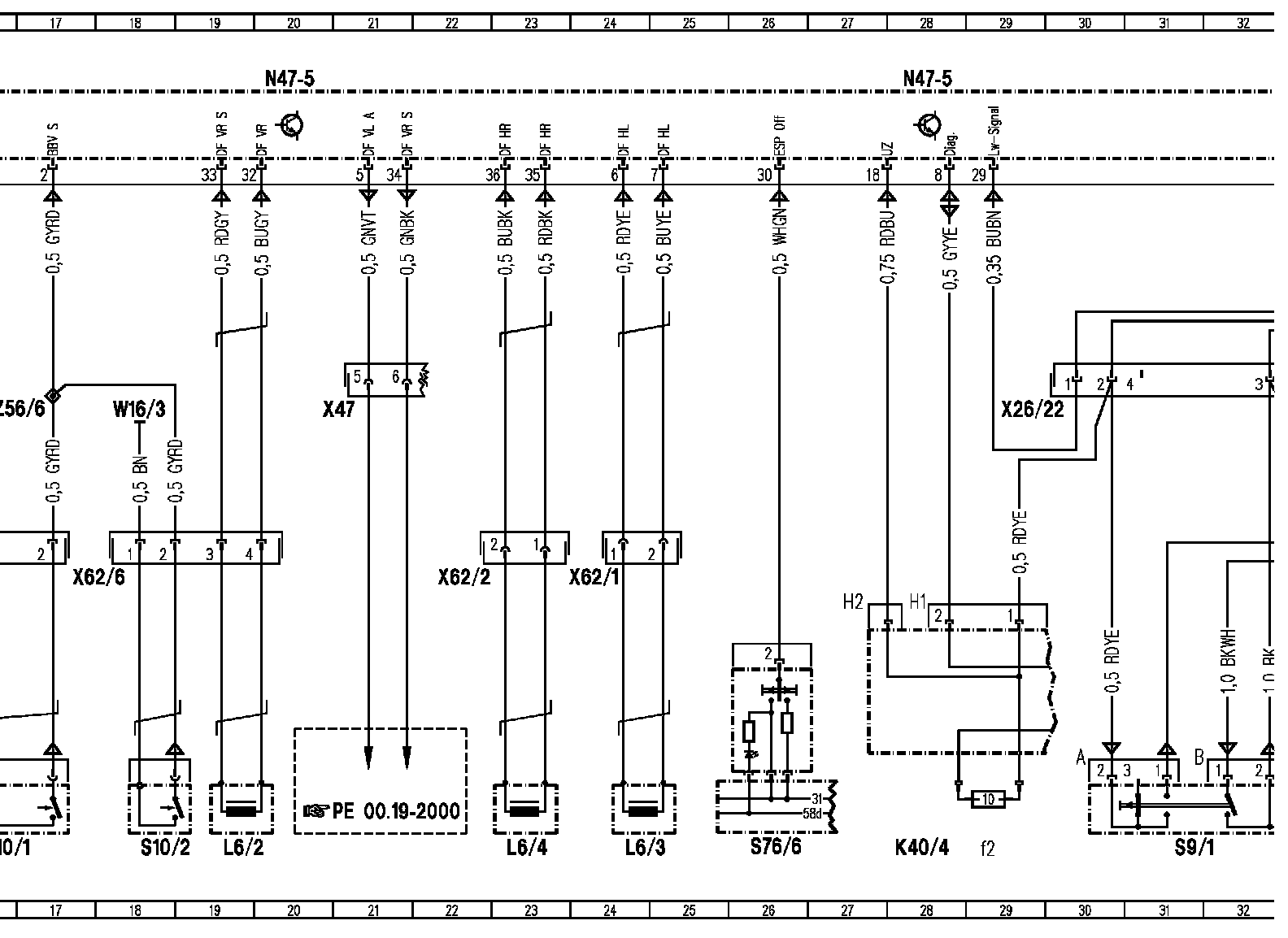

Wiring Diagram, Part 2:

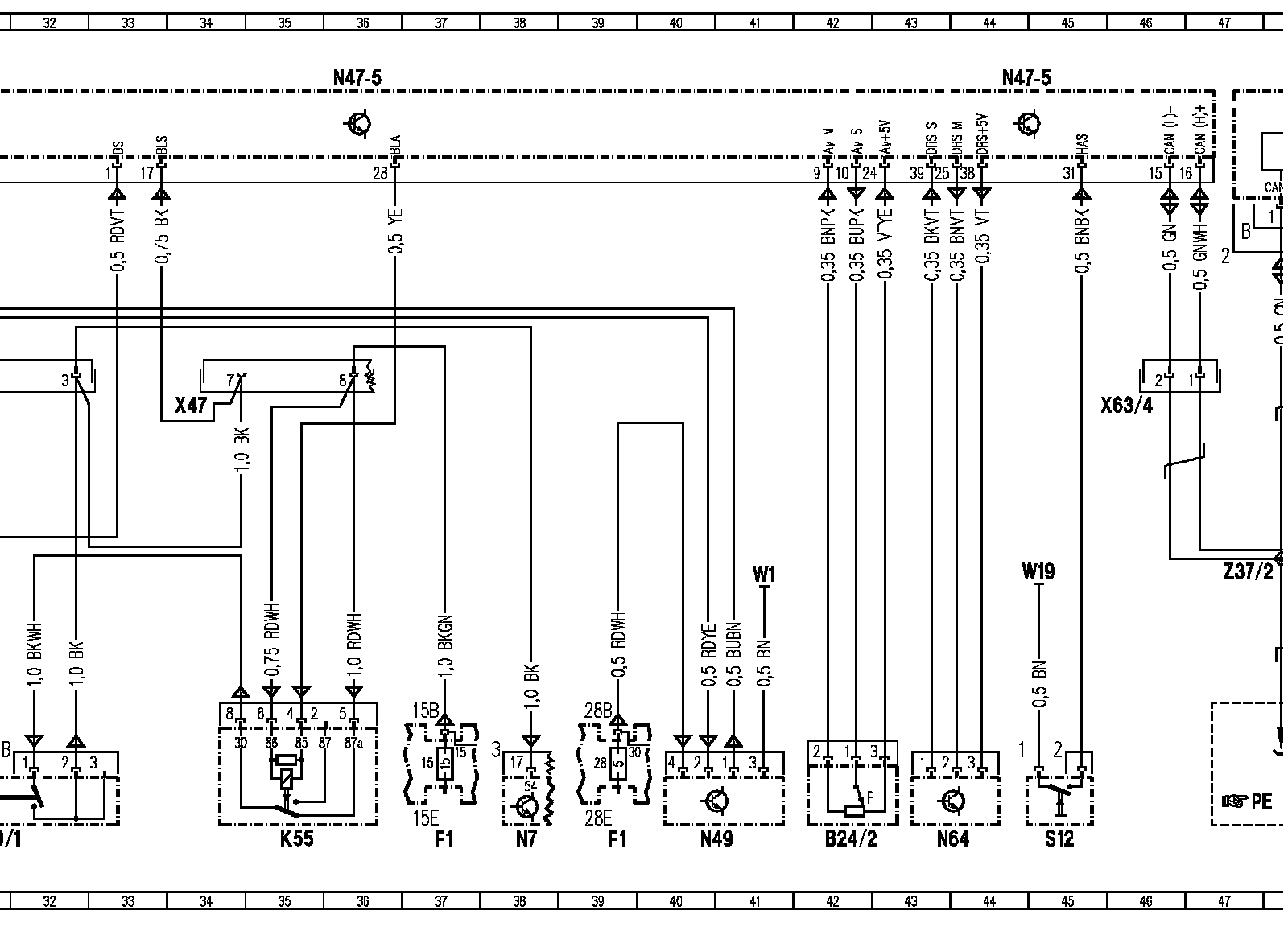

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

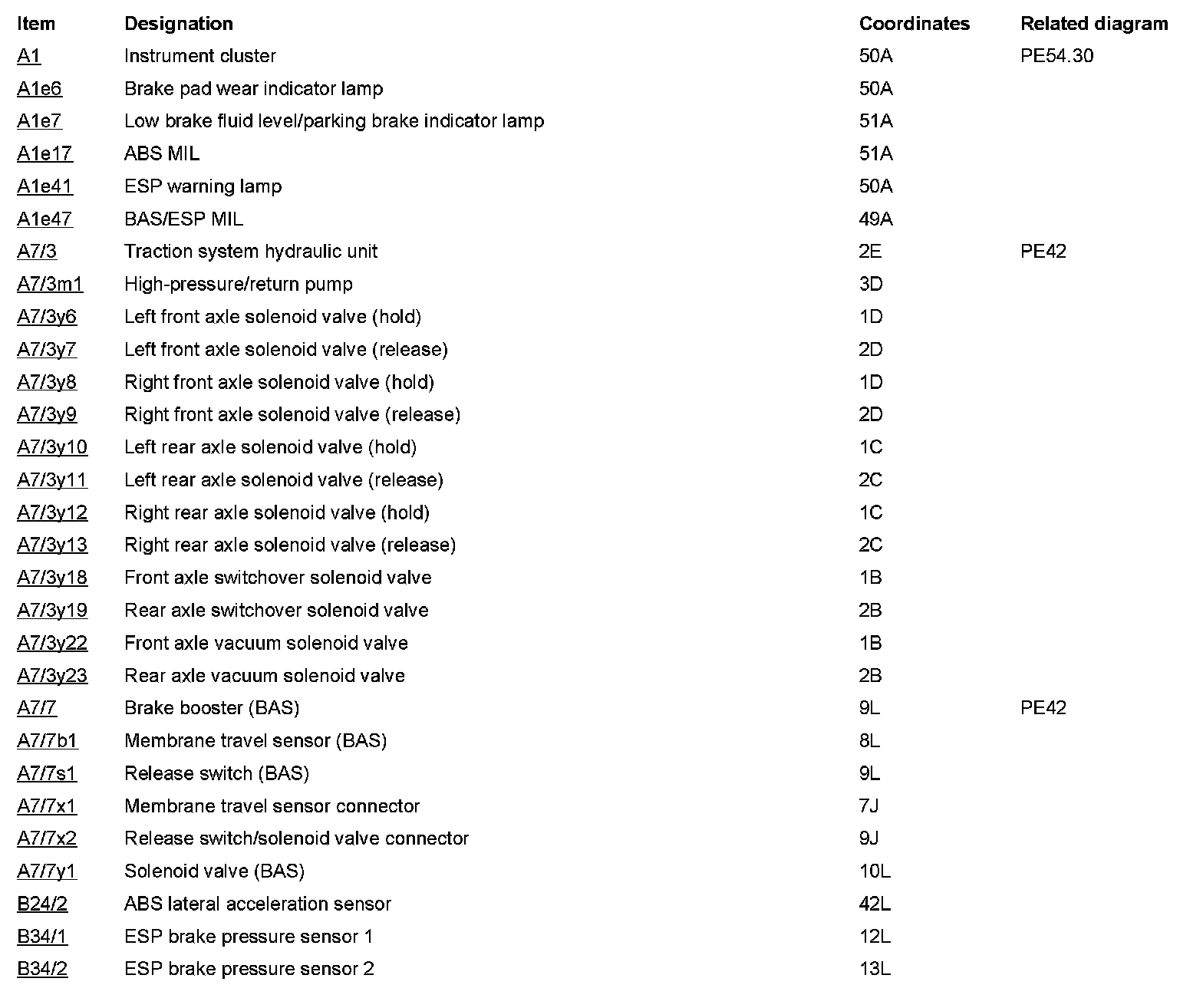

Component Description/Coordinates, A1 To B34/2:

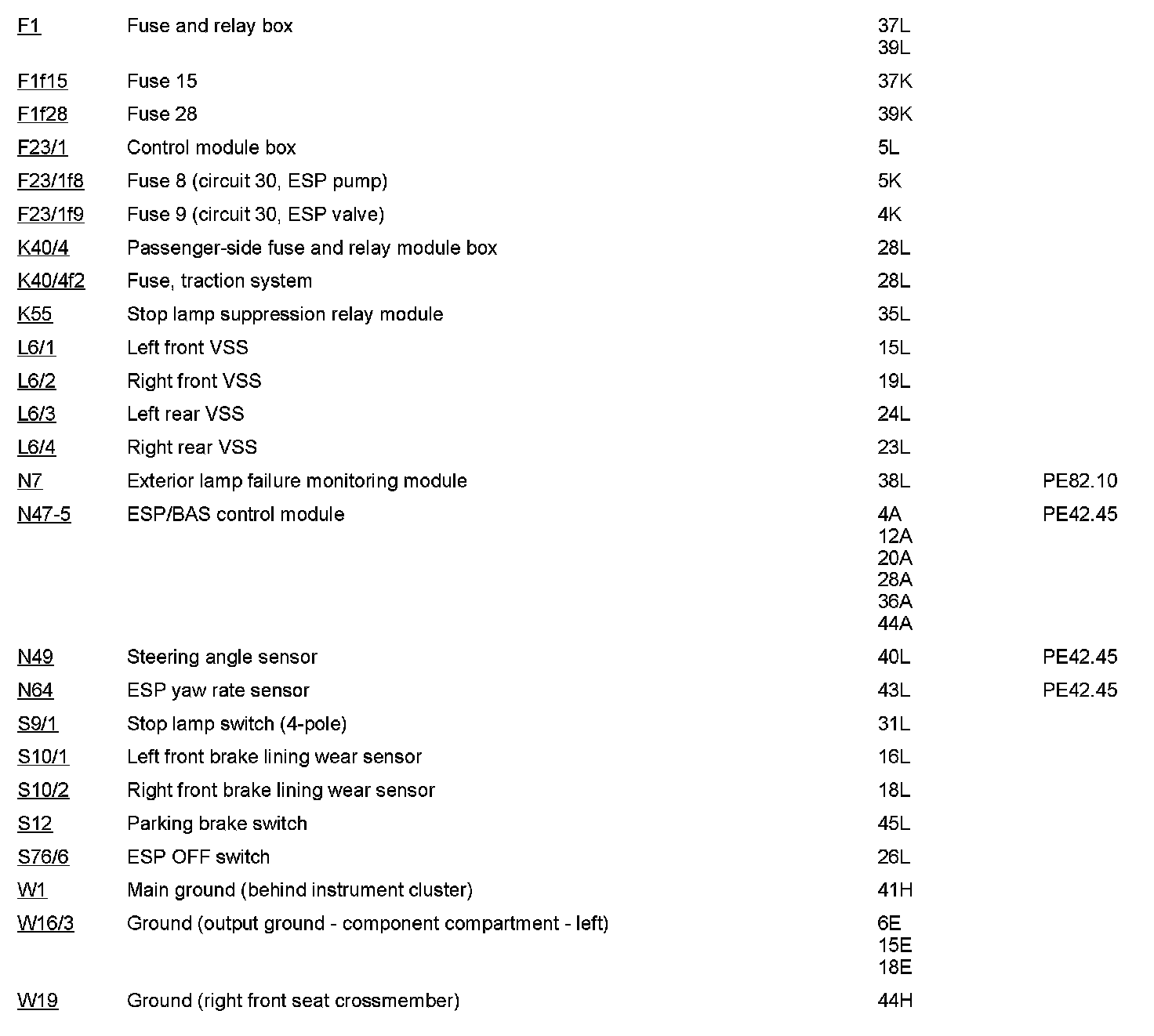

Component Description/Coordinates, F1 To W19:

Component Description/Coordinates, X12/3 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
