C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector Locations
>>
By Connector Designation
>>
X4 (Int.) - Terminal Block (Cir 30)
X4 (Int.) - Terminal Block (Cir 30)

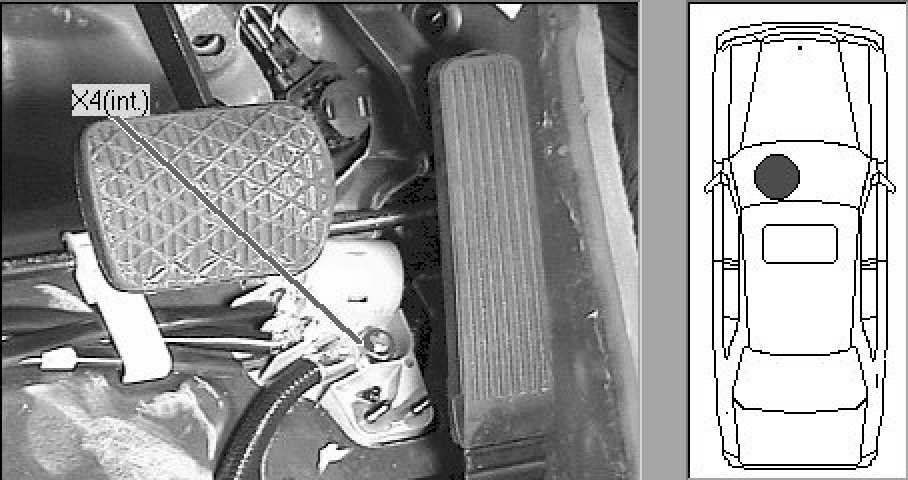

Beneath accelerator pedal (passes thru body, interior side shown)
