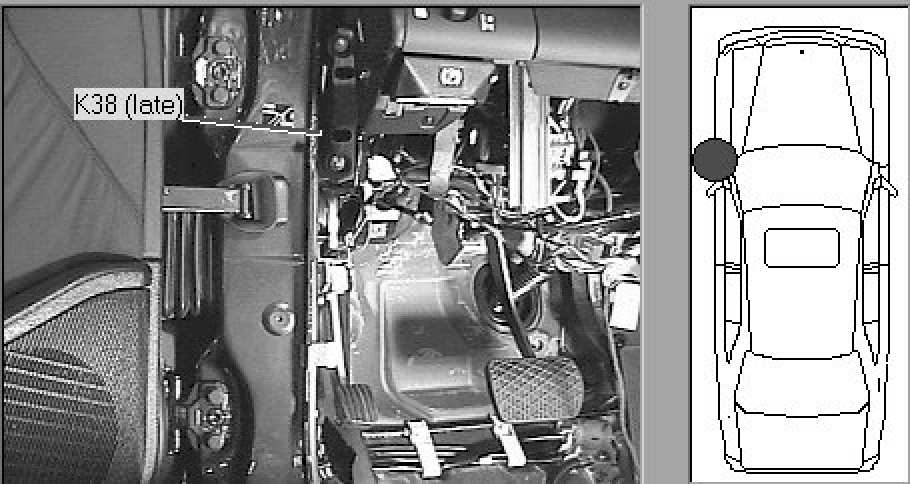

Starter Lock-Out Relay Module - K38 (Late)
Starter Lock-Out Relay Module - K38 (Late)
Hidden behind door jamb, towards engine compartment on interior wall, extending into fender cavity
