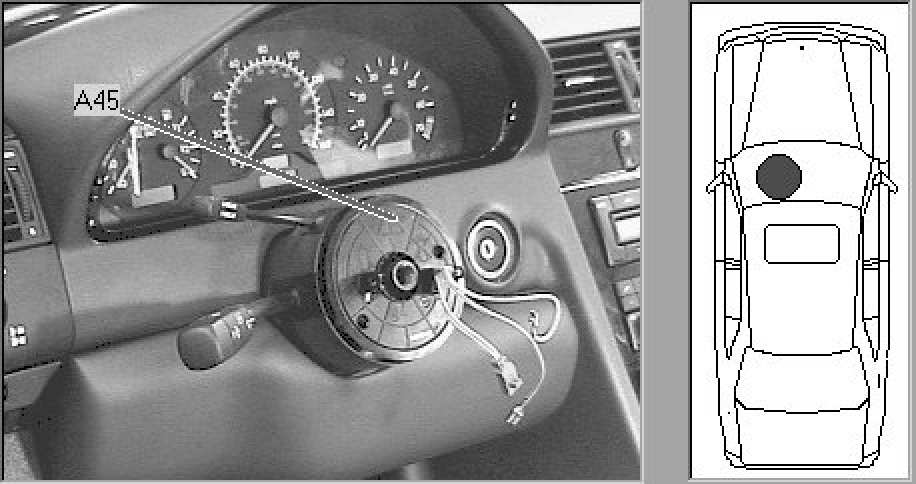

A45 - Horn/Airbag Clock Spring Contact








At top end of steering column, beneath steering wheel
