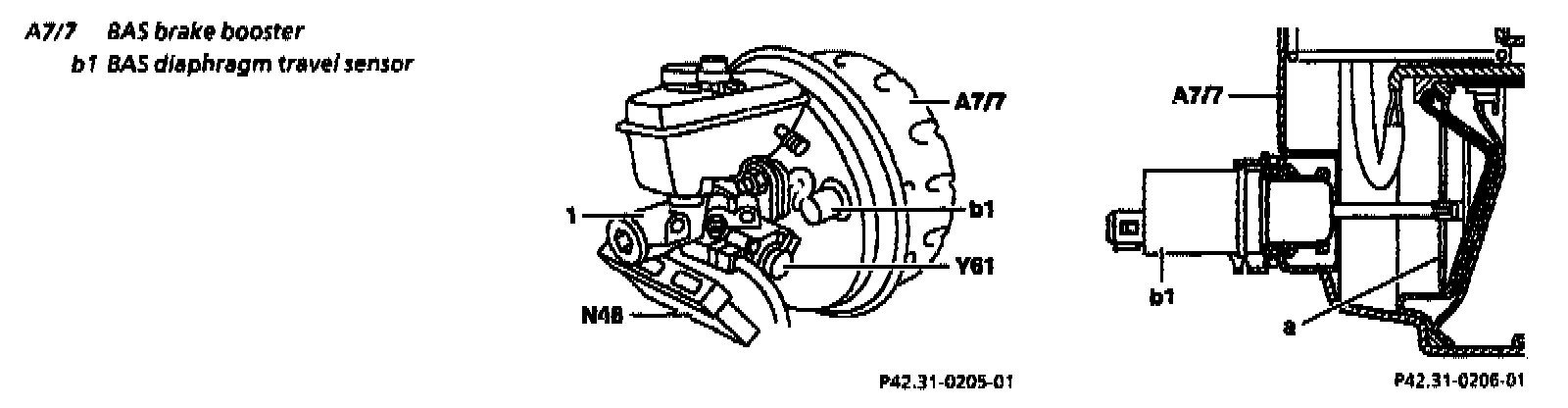

BAS Diaphragm Travel Sensor
Location
On the BAS brake booster.
Function
Analog resistance potentiometer with feeler bar to diaphragm plate. A different voltage is effective in the potentiometer depending on the travel of the probe.
Location
On the BAS brake booster.
Function
Analog resistance potentiometer with feeler bar to diaphragm plate. A different voltage is effective in the potentiometer depending on the travel of the probe.
