FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Trunk / Liftgate Lock Switch
>>
Service and Repair
Power Trunk / Liftgate Lock Switch: Service and Repair
AR88.50-P-5040F Removing And Installing Remote Trunk Release Switch

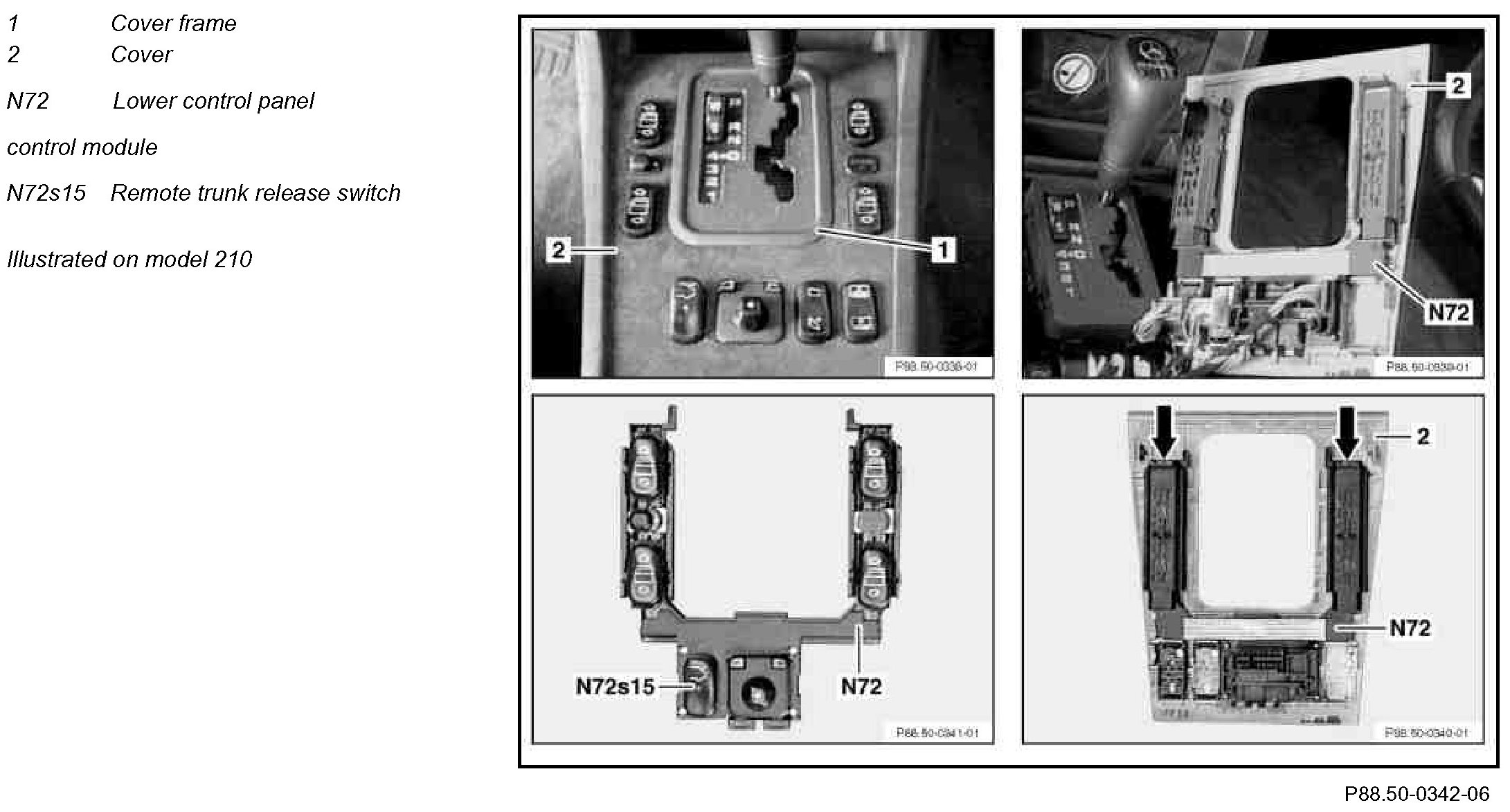

Component Identification:

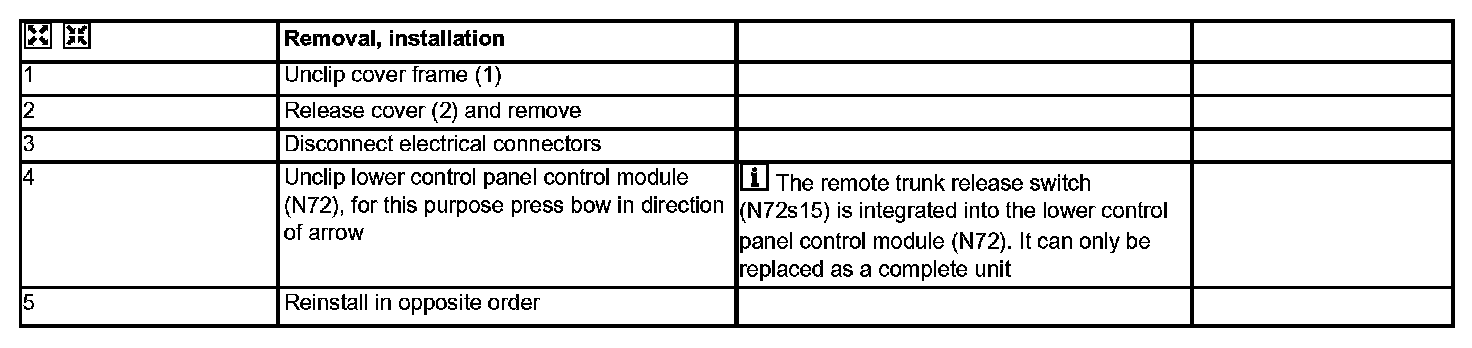

Steps 1 - 5:
