Function Test



Preparation for Test:

NOTE: The switches (left/right) for the front heated seats are integrated into the Front HS Control Module (N2515). The control module can Only be replaced as a complete unit.

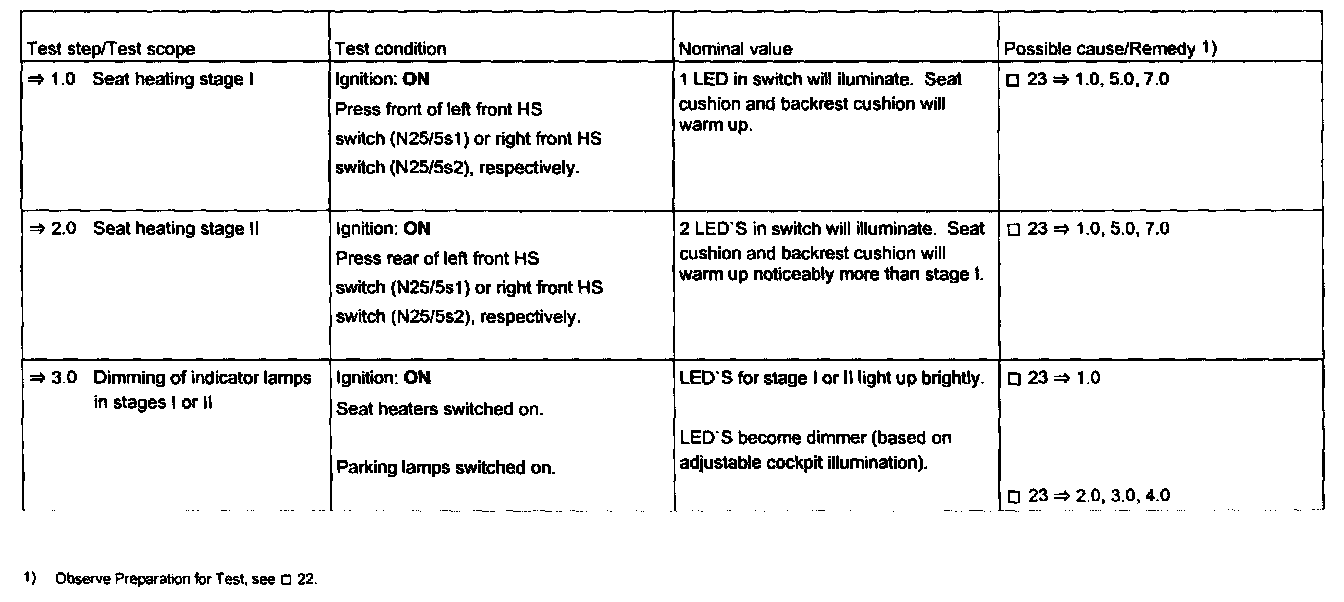

Test Steps 1.0 - 3.0:
