Figure References In ETP Test Steps

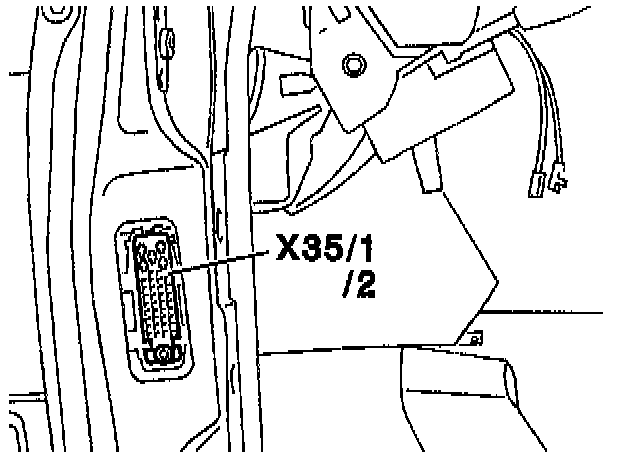

Figure 1
X35/1 Left front door plug connection
X35/2 Right front door plug connection

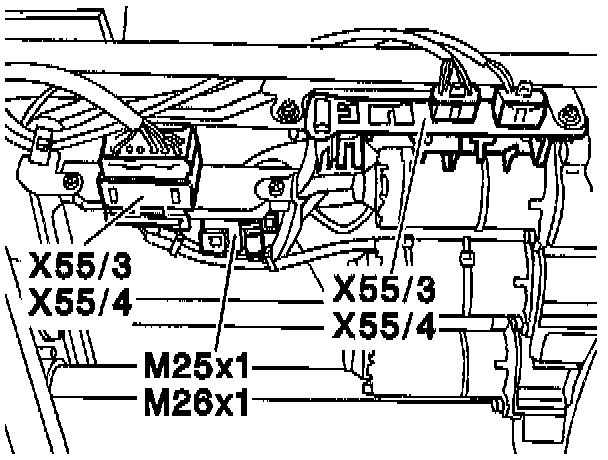

Figure 2
X55/3 Left seat contact strip
X55/4 Right seat contact strip
M25x1 Left front power seat motor group connector
M26x1 Right front power seat motor group connector

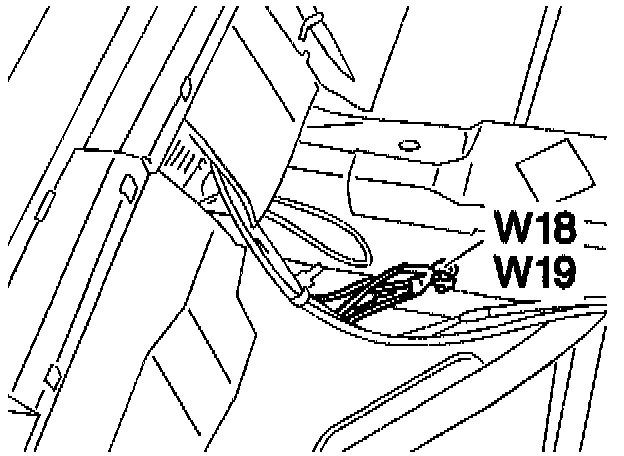

Figure 3
W18 Ground (left front seat crossmember)
W19 Ground (right front seat crossmember)
