AR91.25-P-1740E Remove/Install Air Cushions In Multi-Contour Backrest



AR91.25-P-1740E Removing And Installing Air Cushions In Multi-contour Backrest
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat


Component Identification:




Component Identification:




Component Identification:

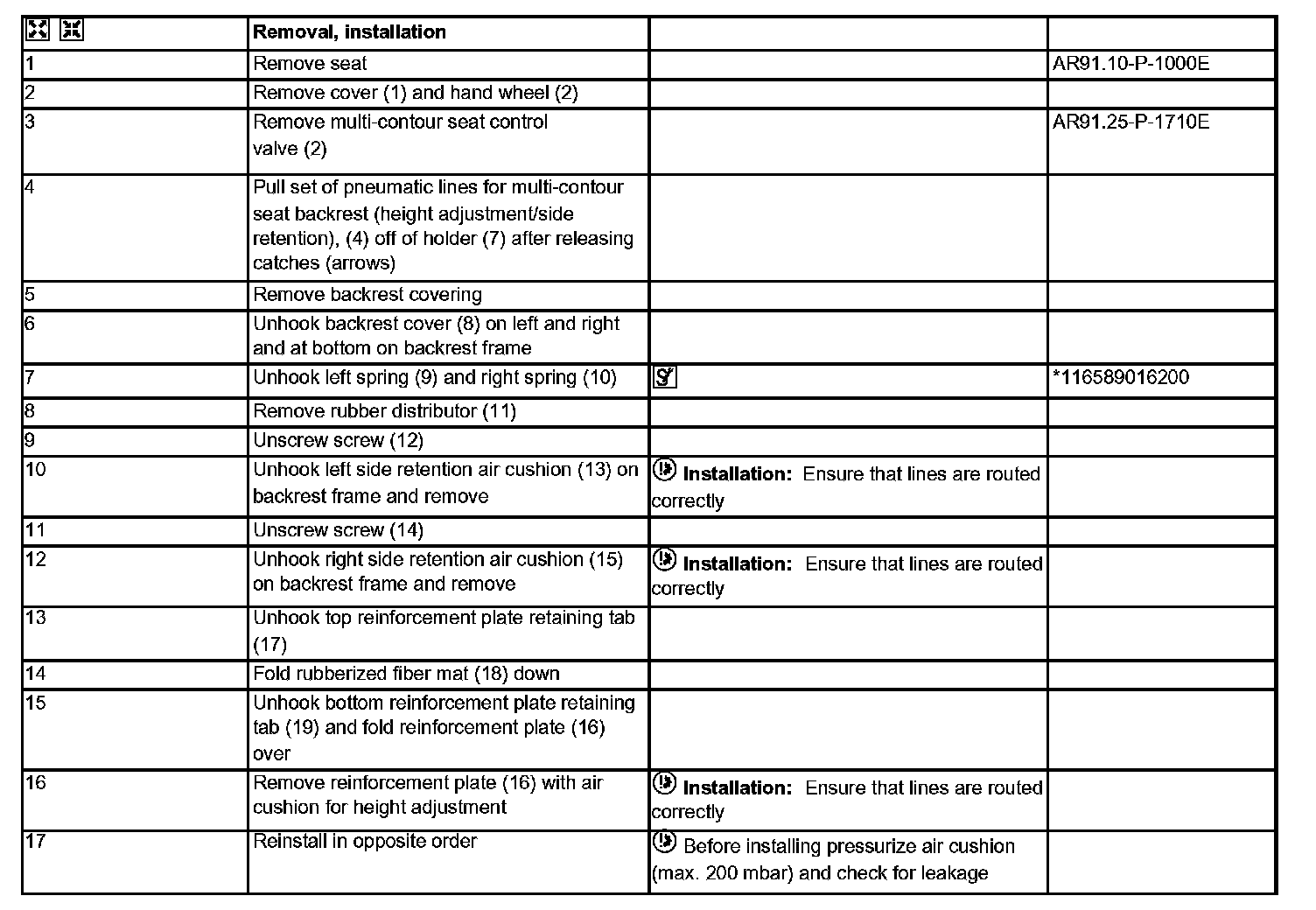

Steps 1 - 17:

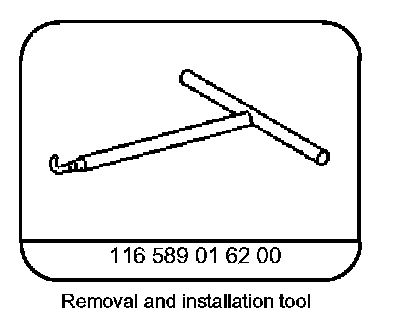

Special Tools:
