Seat Temperature Control Module: Locations

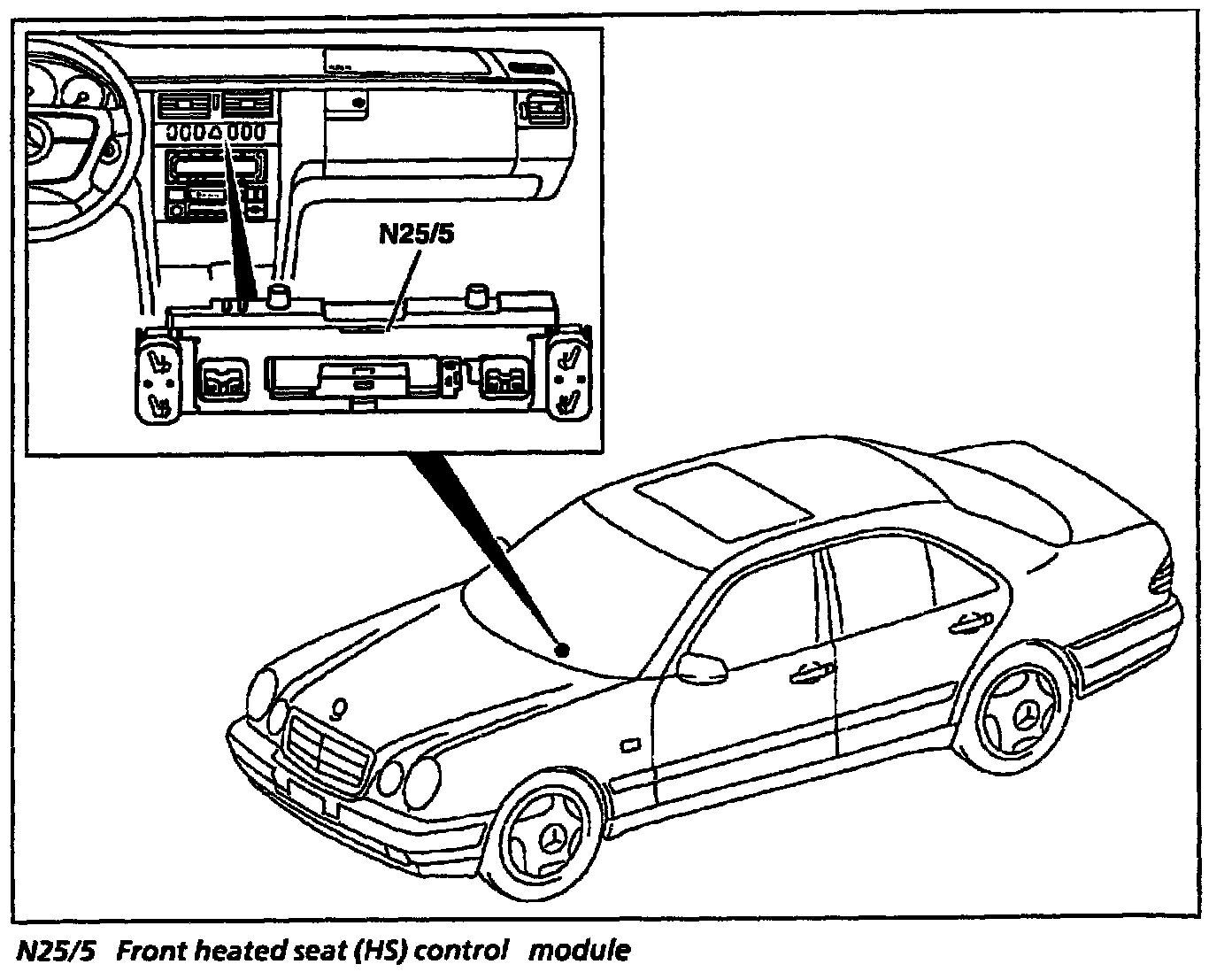

Front Heated Seat Control Module - N25/5 (Models 202, 210):





NOTE: The image shows the arrangement of the control module in model 210. The arrangement in model 202 is identical.

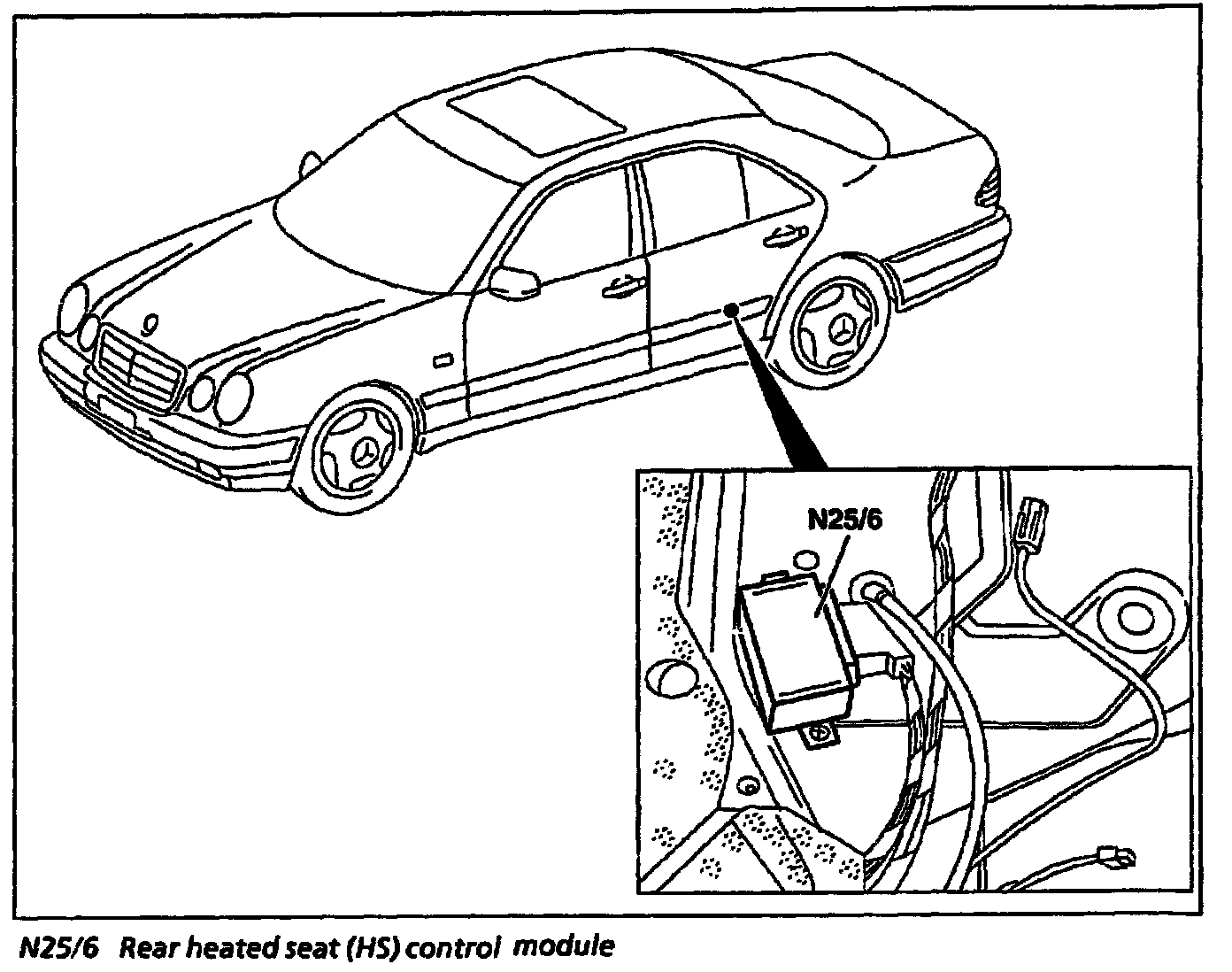

Rear Heated Seat Control Module - N25/6 (Model 210):
