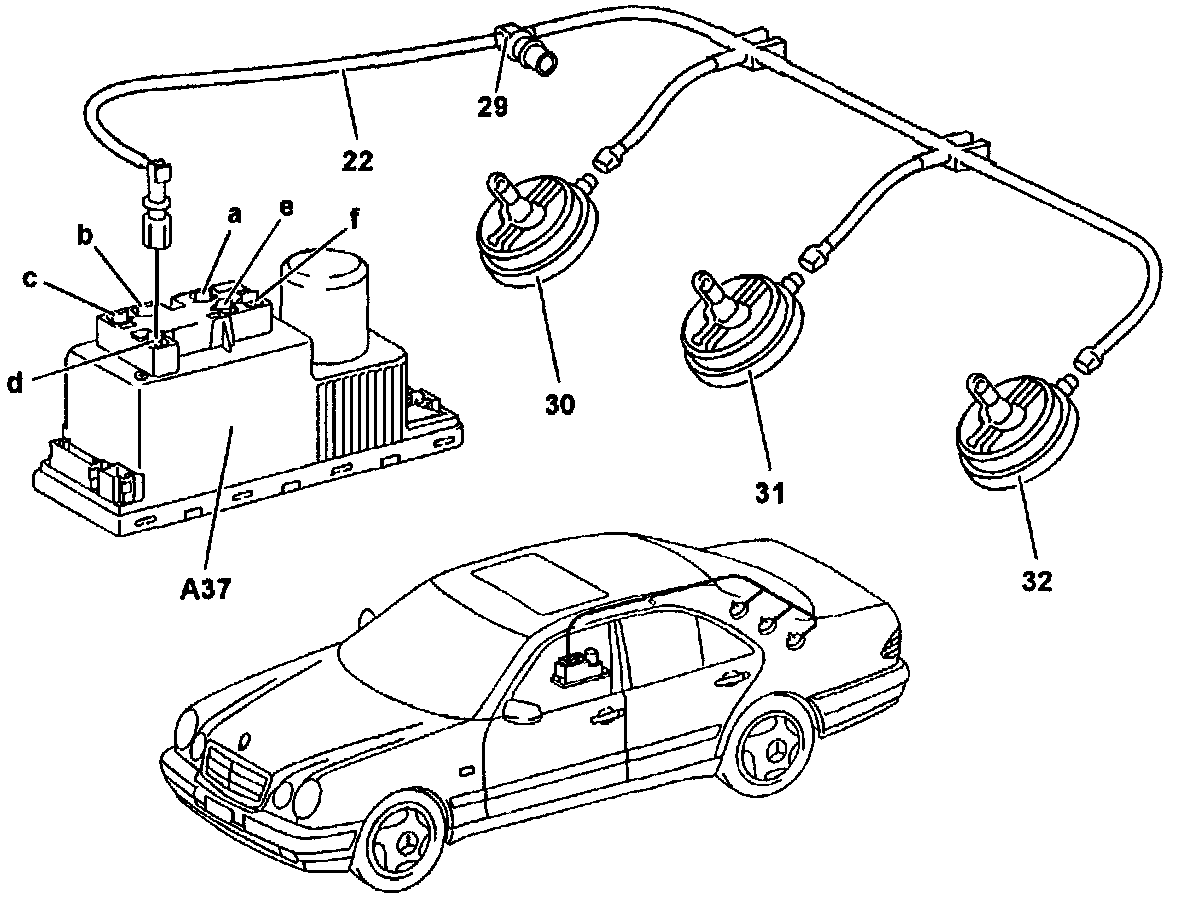

Component Locations - Section 31

A37 PSE control module, combined functions
a Pneumatic connection, passenger/rear doors
b Pneumatic connection, driver-side door
c Pneumatic connection, fuel tank filler flap
d Pneumatic connection, RTR/RHR
e Pneumatic connection, OSB
f Pneumatic connection, MVA
22 Pneumatic line, RHR
29 Pneumatic line, T-connector
30 Pneumatic actuator RHR, right side
31 Pneumatic actuator RHR, center
32 Pneumatic actuator RHR, left side
