C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Pneumatic System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Pneumatic System Equipment (PSE) Control Module
>>
ETP - Electrical Test Program
>>
Test Steps - Section 23
>>
1.0 - 4.0
1.0 - 4.0

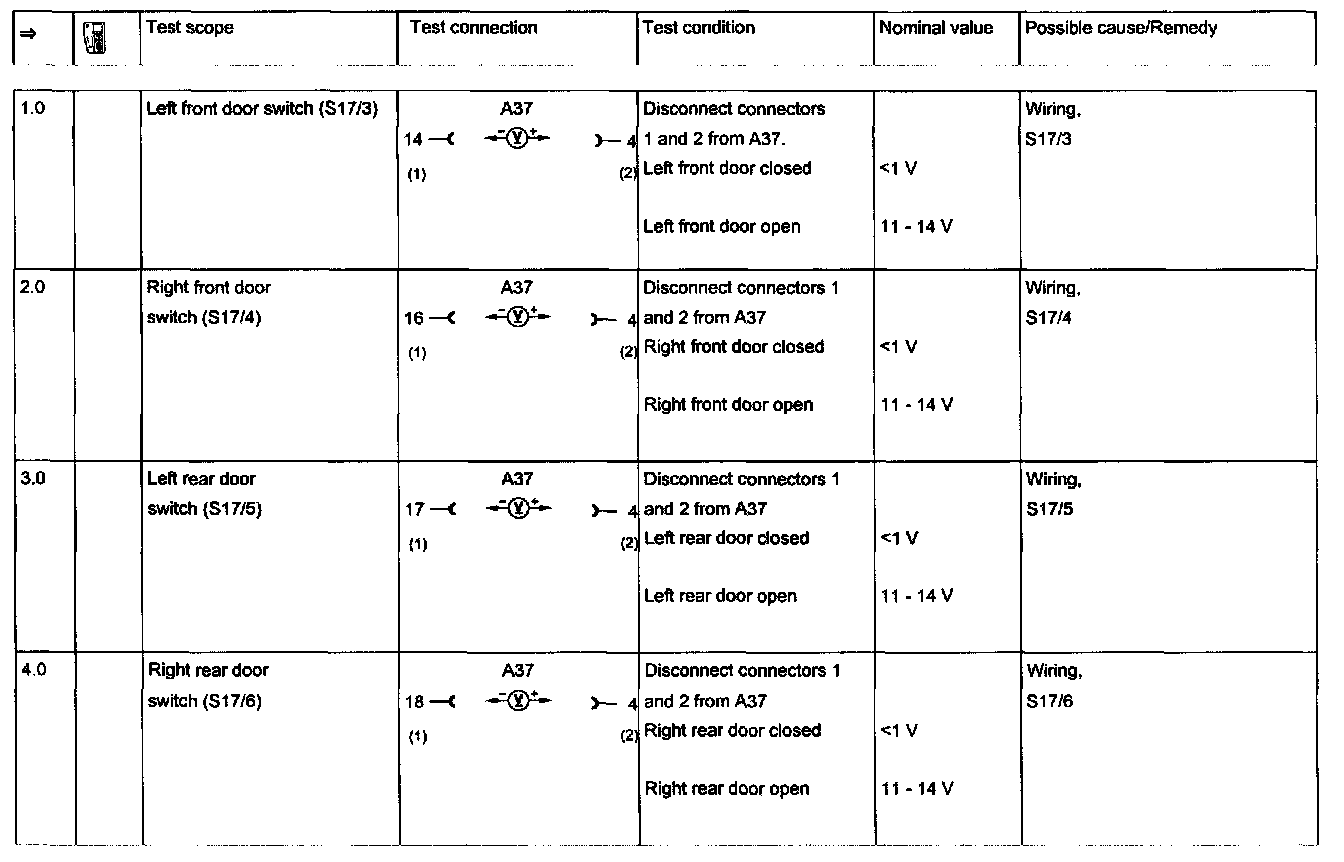

Steps 1.0 - 4.0:
