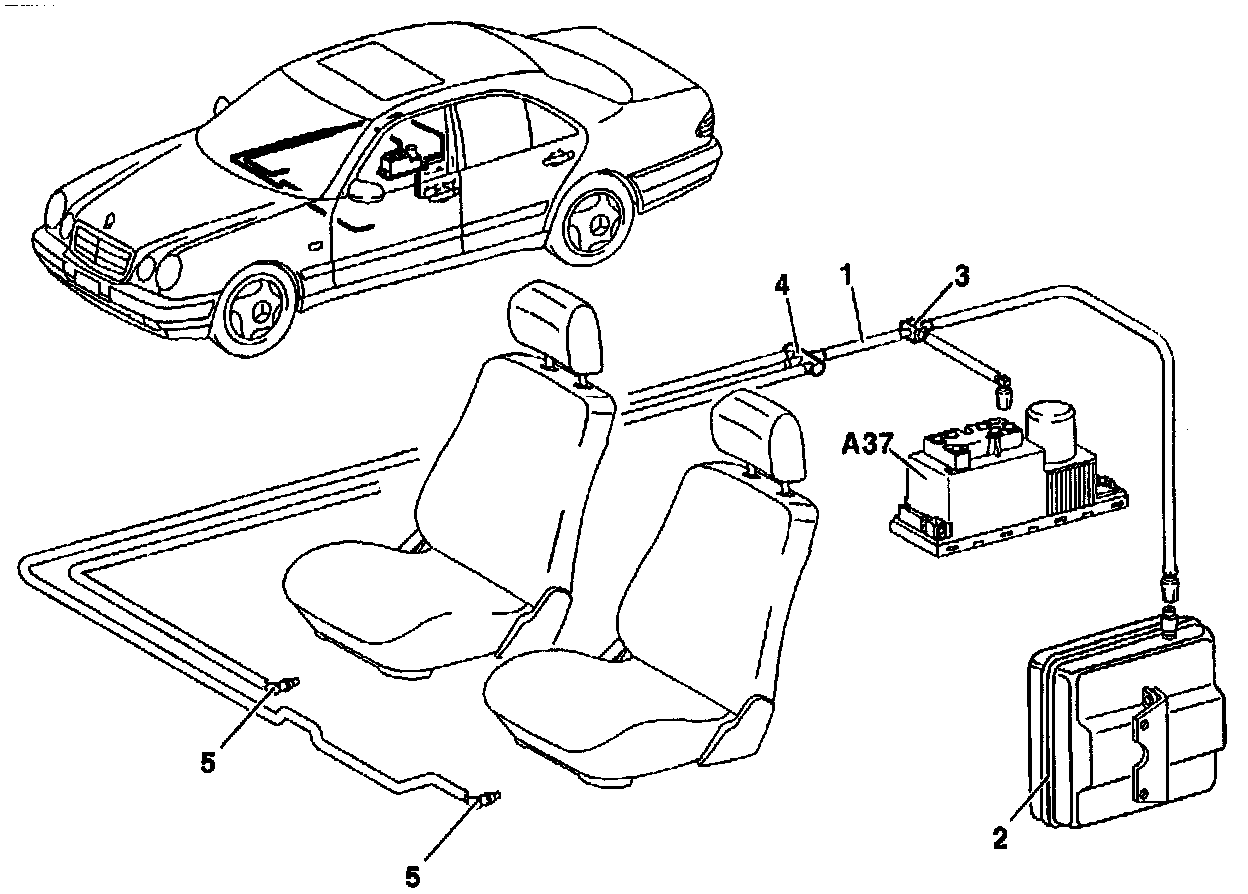

Component Locations - Section 31

Model 210 shown





A37 PSE control module, combined functions
1 Pneumatic connection, OSB
2 Vacuum reservoir
3 Pneumatic line, T-connector, OSB
4 Pneumatic line, distributor (both front seats only)
5 Multi-contour seat connector
