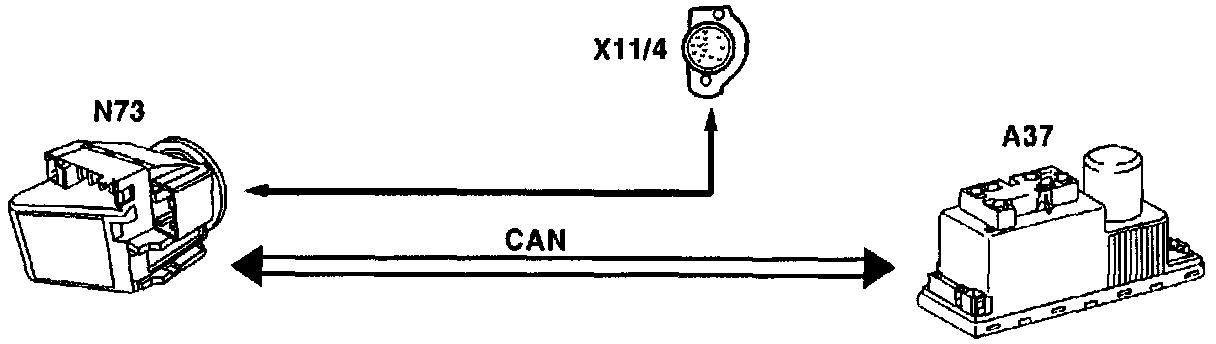

Connection of Components - Section 21

A37 PSE control module, combined function
CAN Control-Area-Network
N10-1 Combination control module
X11/4 Data link connector (DTC readout)
