ETP - Electrical Test Program
>>
Component Locations - Section 20
Component Locations - Section 20

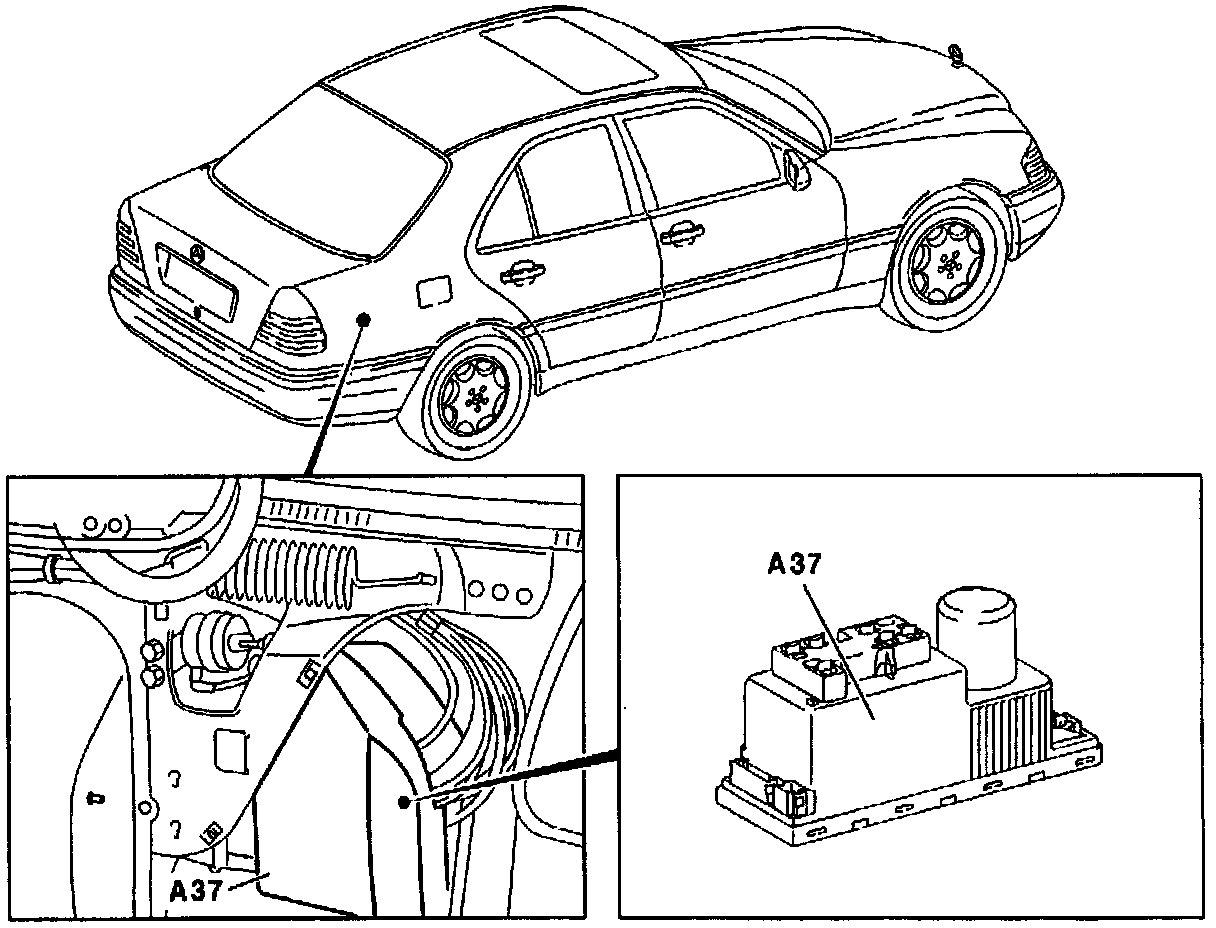

Models 202, 208 (Model 202 Shown):

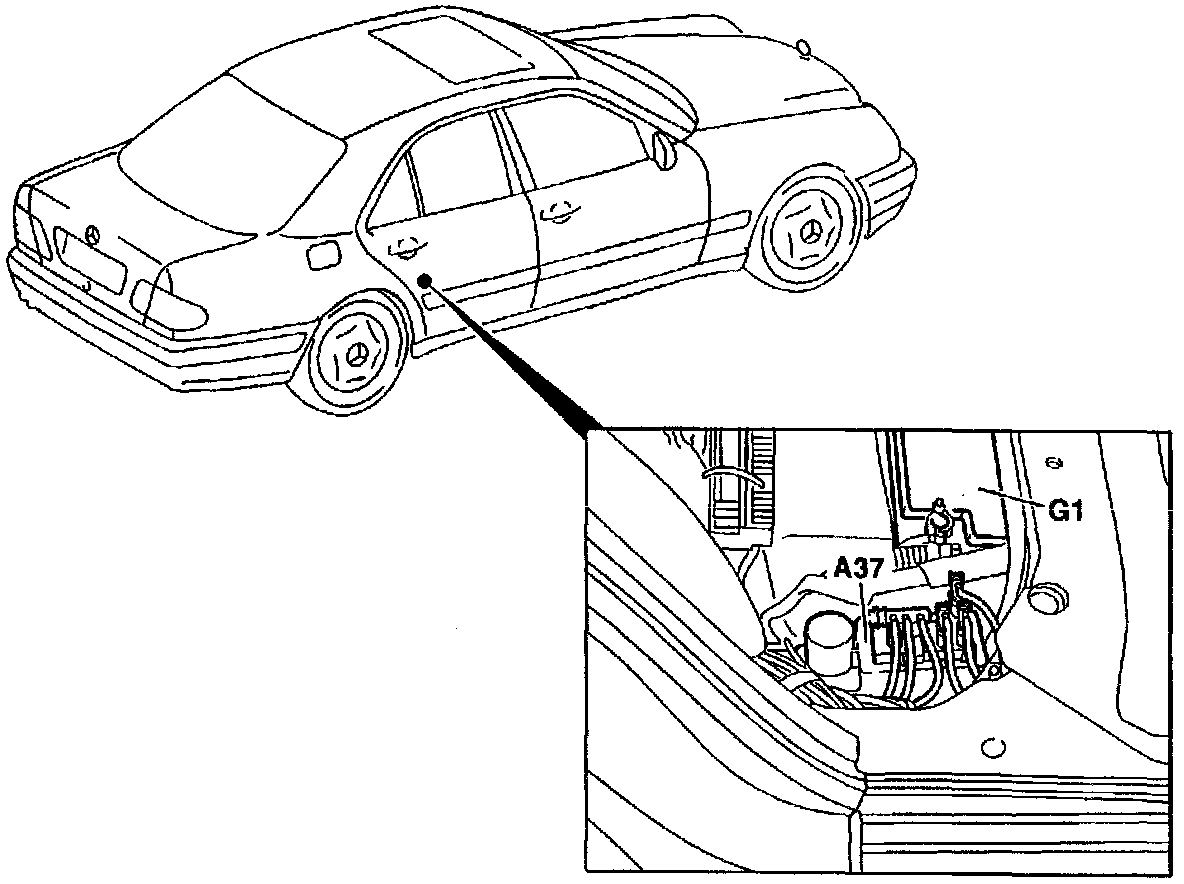

Model 210 (as of 03/97):
A37
PSE control module, combined function
G1
Battery
