Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Service and Repair >> Remove/Install Actuator in Front Door

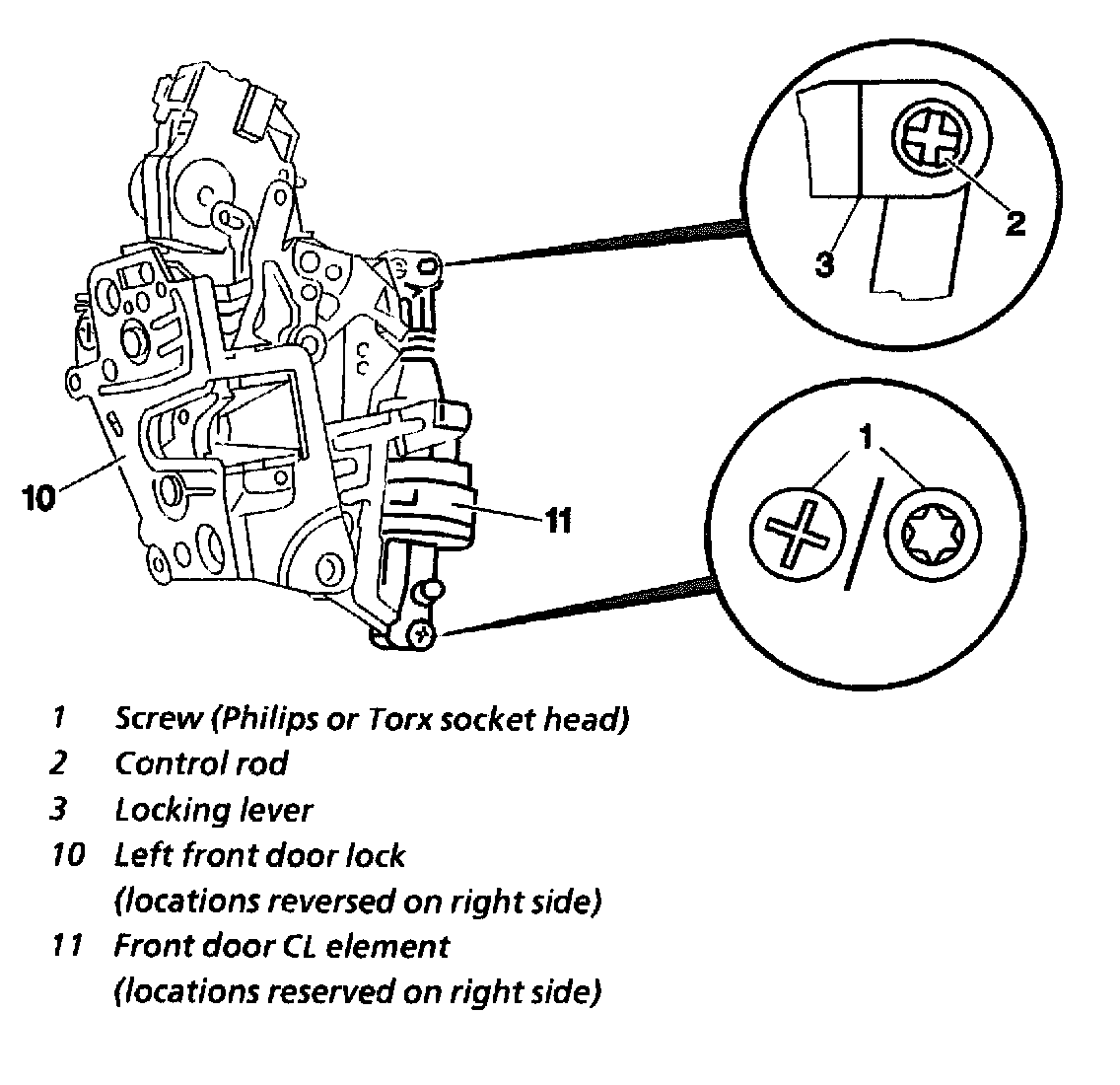

Remove/Install Actuator in Front Door

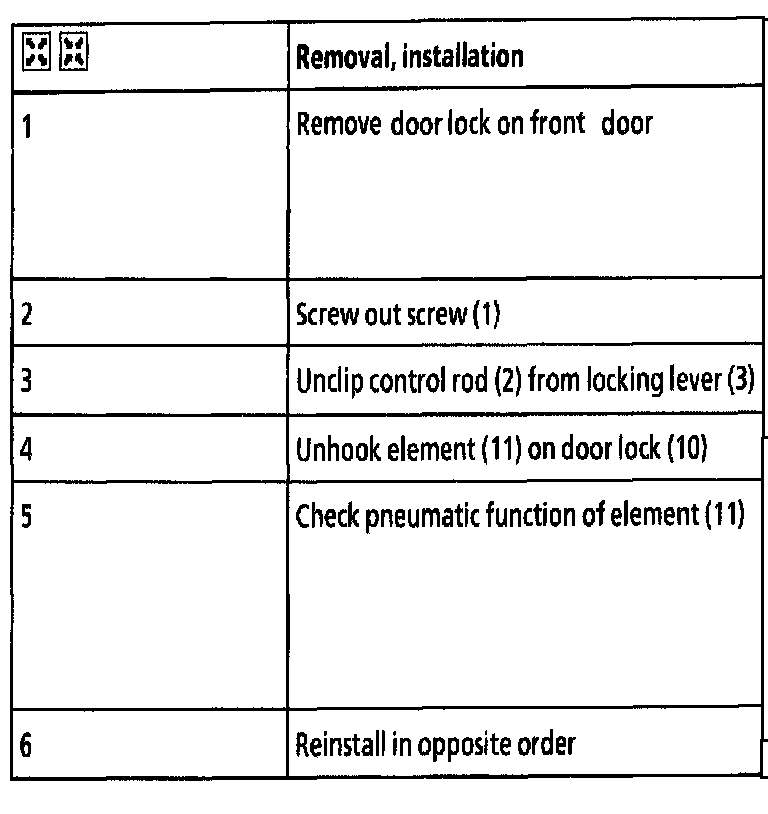

Removal, installation
