Location
Location

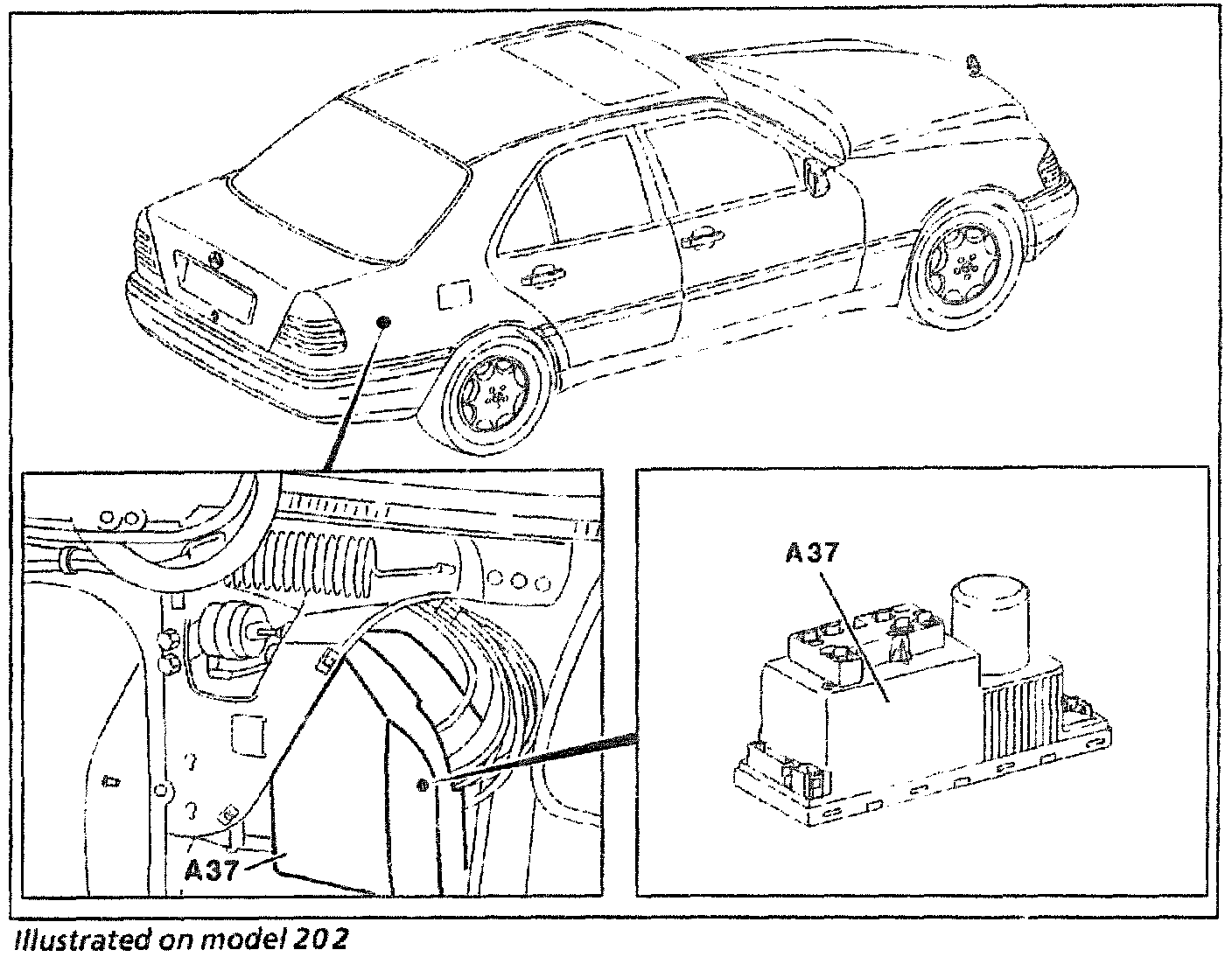

Illustrated On Model 202:
The PSE control module (combined) (A37) is located behind the side paneling in the trunk on the right. It is located in a foam support.
