AR68.10-P-1520E Remove/Install Cover Below Instrument Panel (Right)

AR68.10-P-1520E Remove/Install Cover Below Instrument Panel (Right)

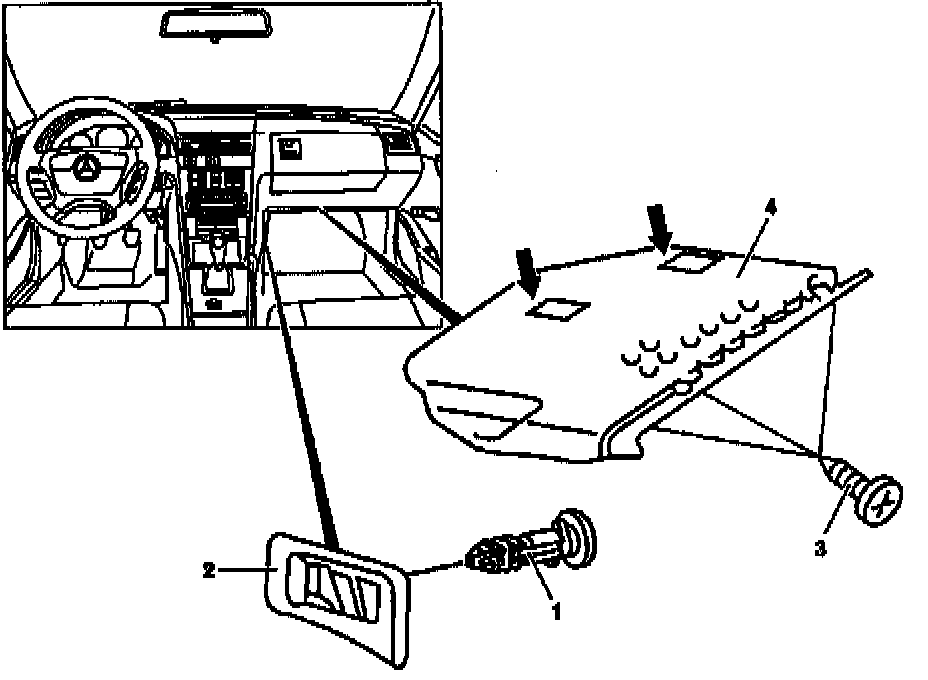

1 Fastening plug
2 Air outlet nozzle
3 Screw
4 Trim panel


Removal, Installation

1. Rotate fastening plug (1) by 90° and remove
2. Remove air outlet nozzle (2)
3. Unscrew screws (3)
4. Remove cover (4) toward rear

Note: When installing insert the two catch lugs (arrows) at the front.

5. Install in opposite order
