AR68.20-P-2350E Remove/Install Cover on Center Console
AR68.20-P-2350E Remove/Install Cover on Center Console
AR68.20-P-2350E Removing And Installing Cover On Center Console

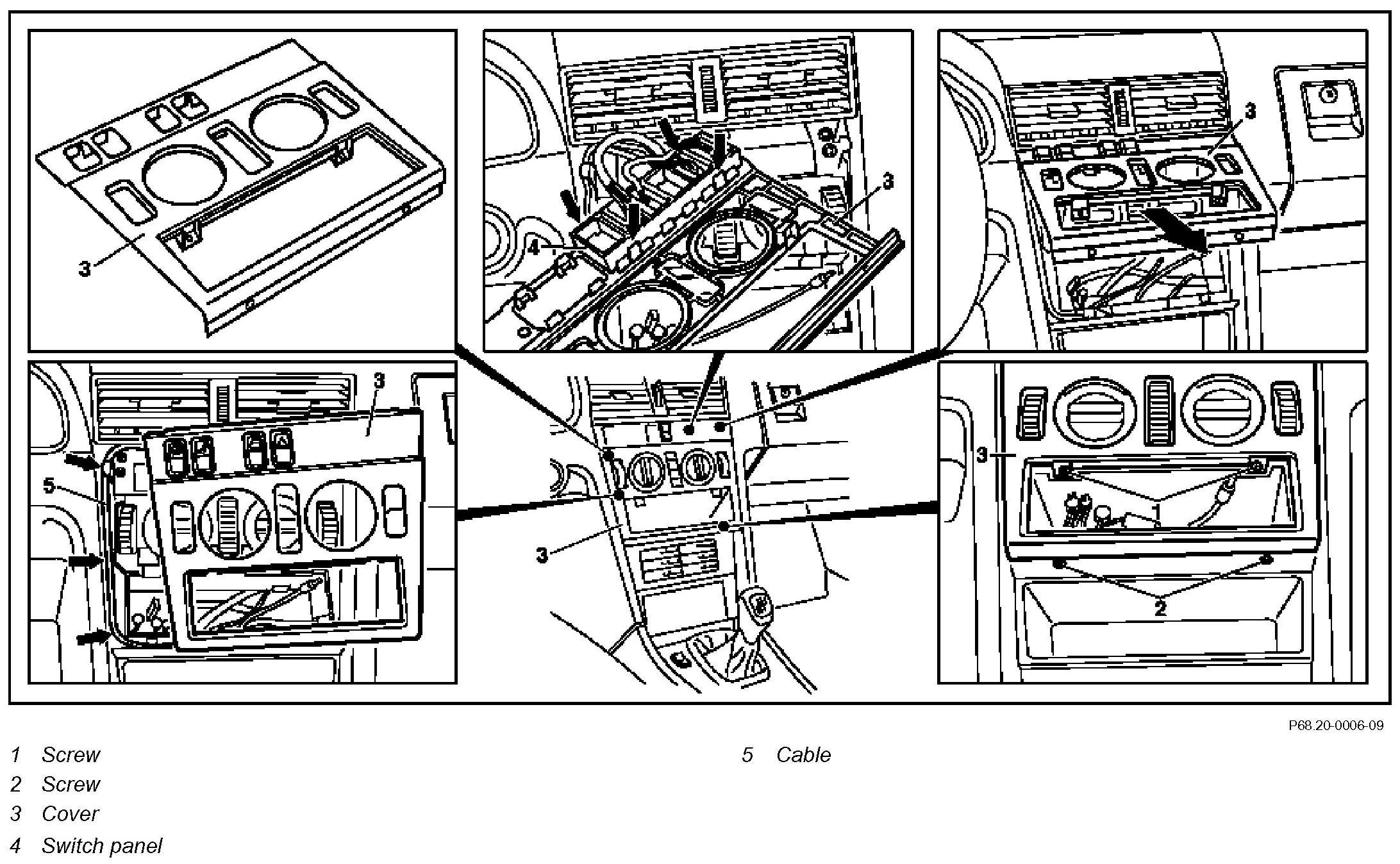

Component Identification:

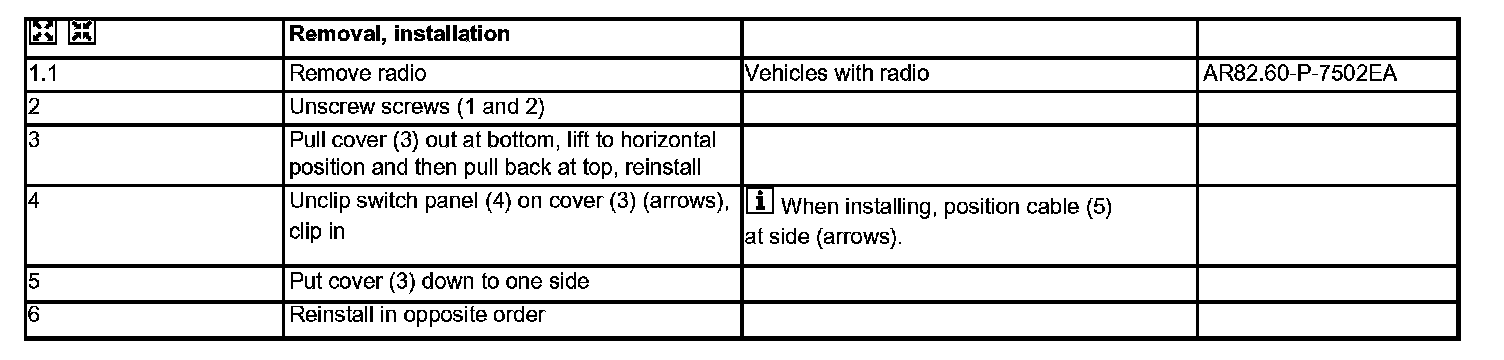

Steps 1.1 - 6:
