AR68.20-P-2310E Remove/Install Cover At Gearshift Lever



AR68.20-P-2310E Removing And Installing Cover At Gearshift Lever
- with transmission 722.4

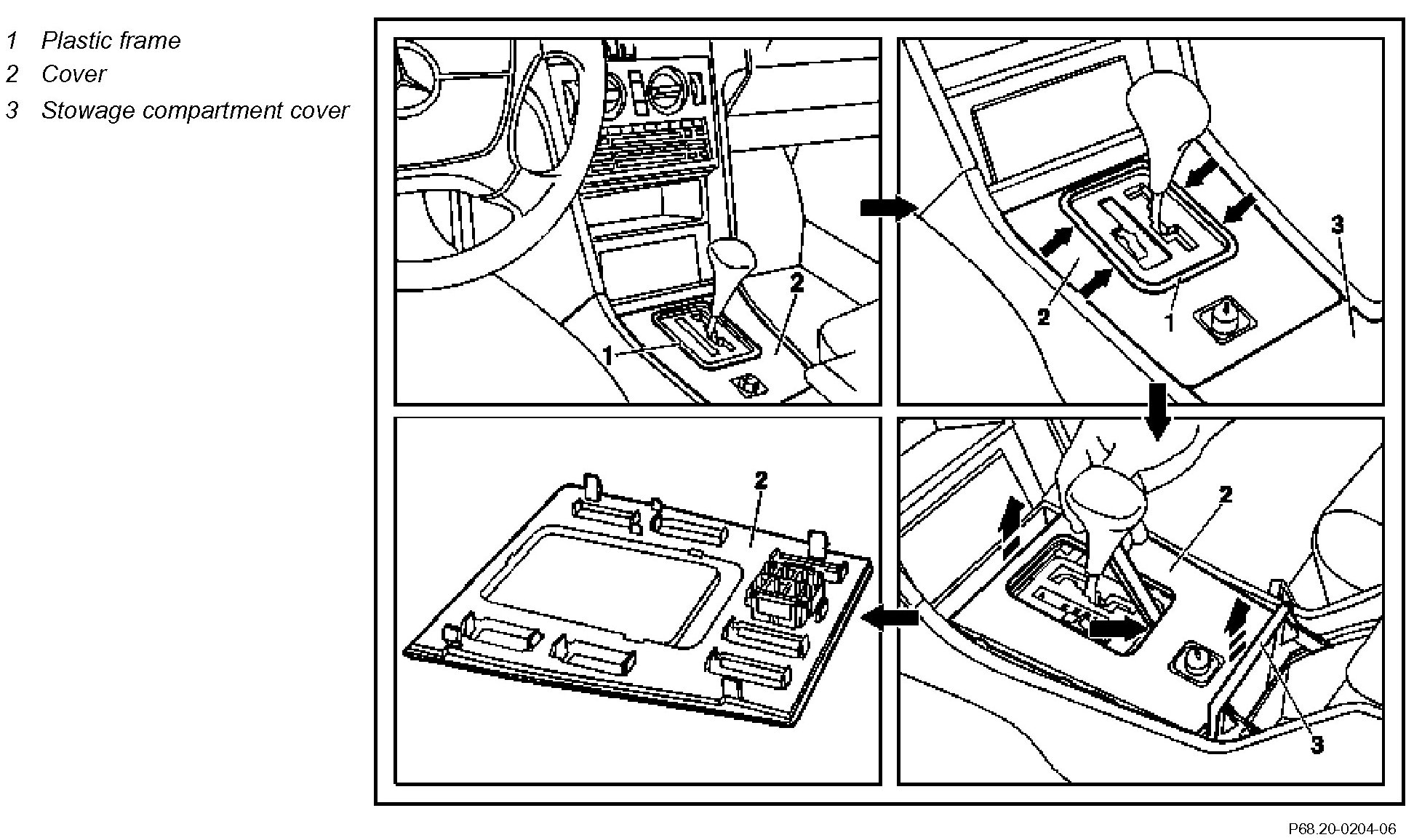

Component Identification:

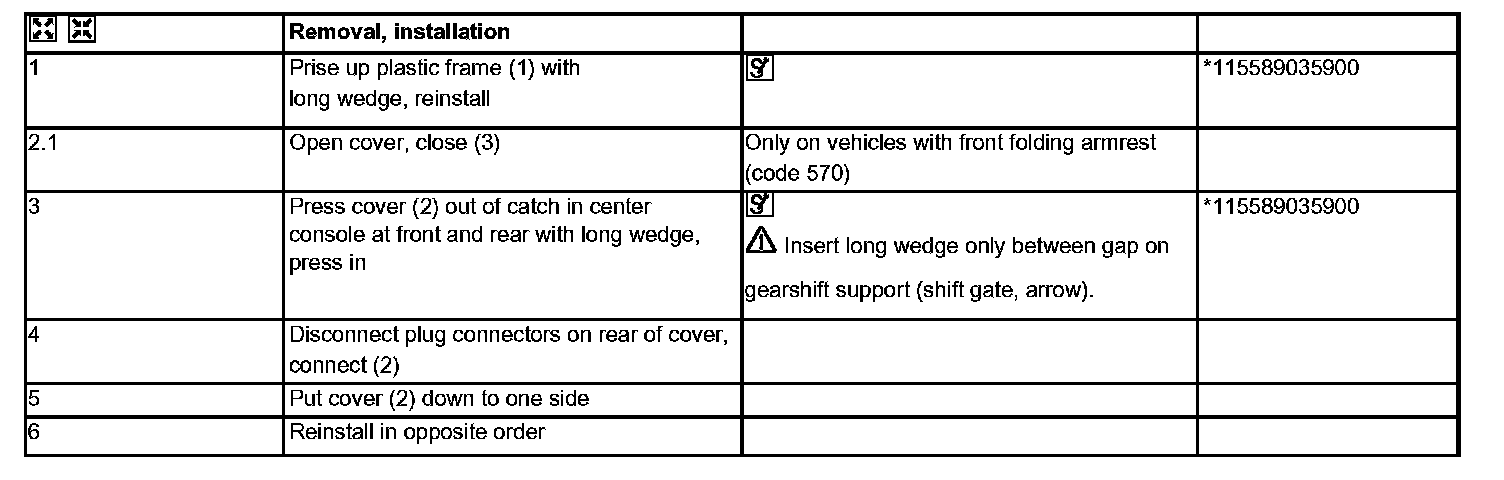

Steps 1 - 6:

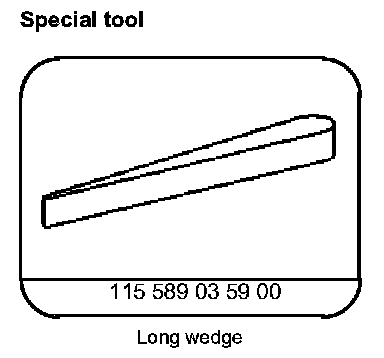

Special Tools:
