AR68.20-P-2000E Remove/Install Center Console
AR68.20-P-2000E Remove/Install Center Console
AR68.20-P-2000E Removing And Installing Center Console

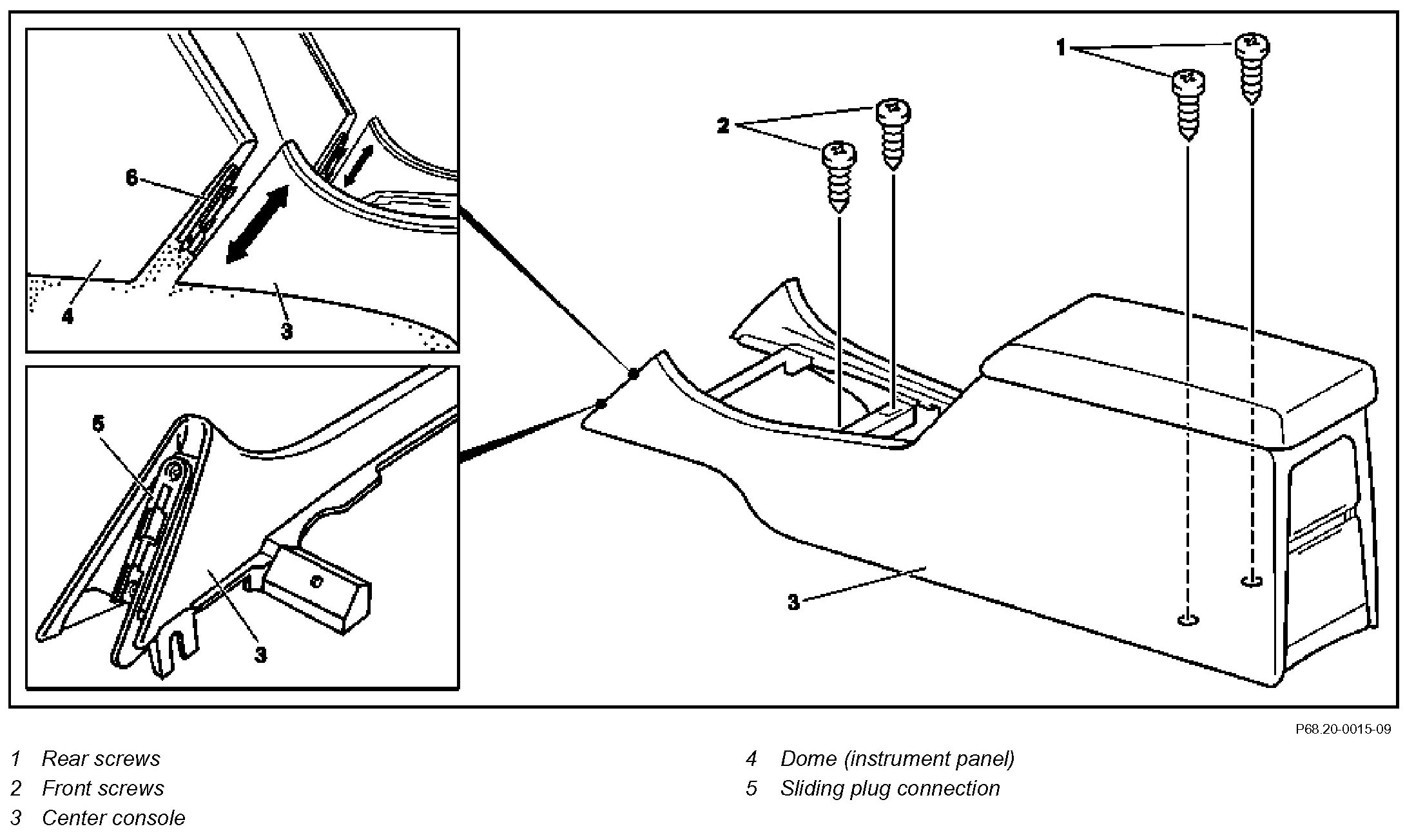

Component Identification:

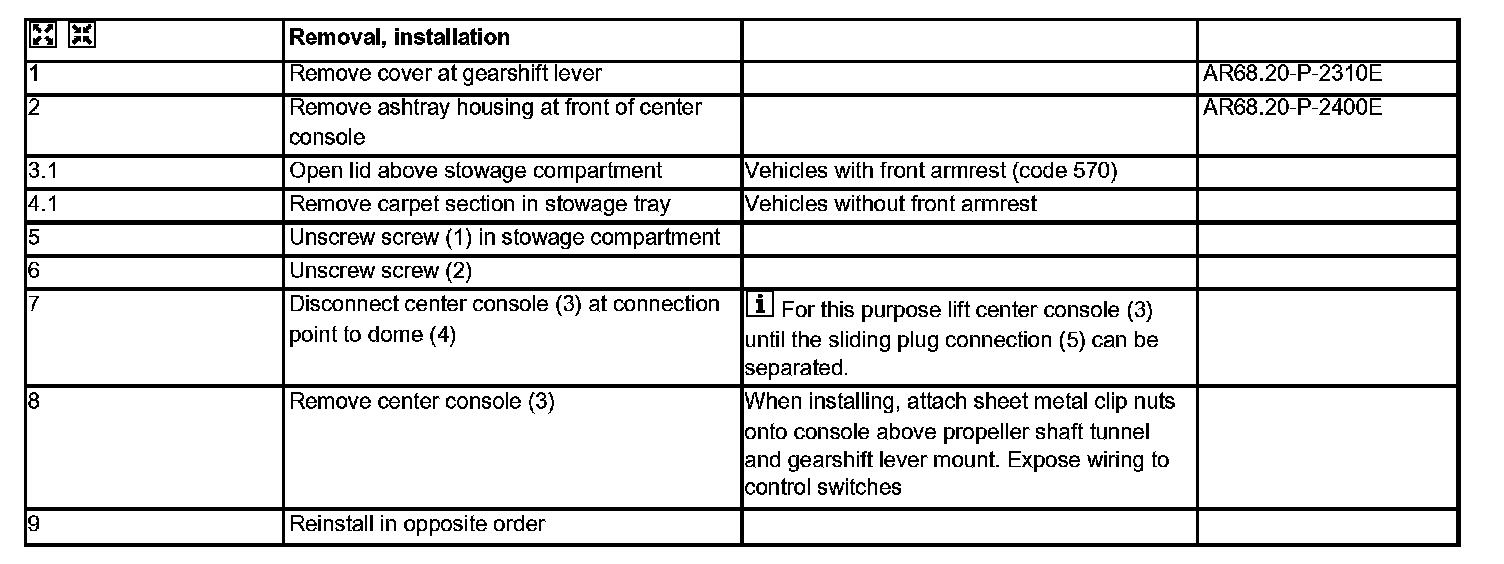

Steps 1 - 9:
