Overhaul



AR68.20-P-2150E Disassembling And Reassembling Center Console

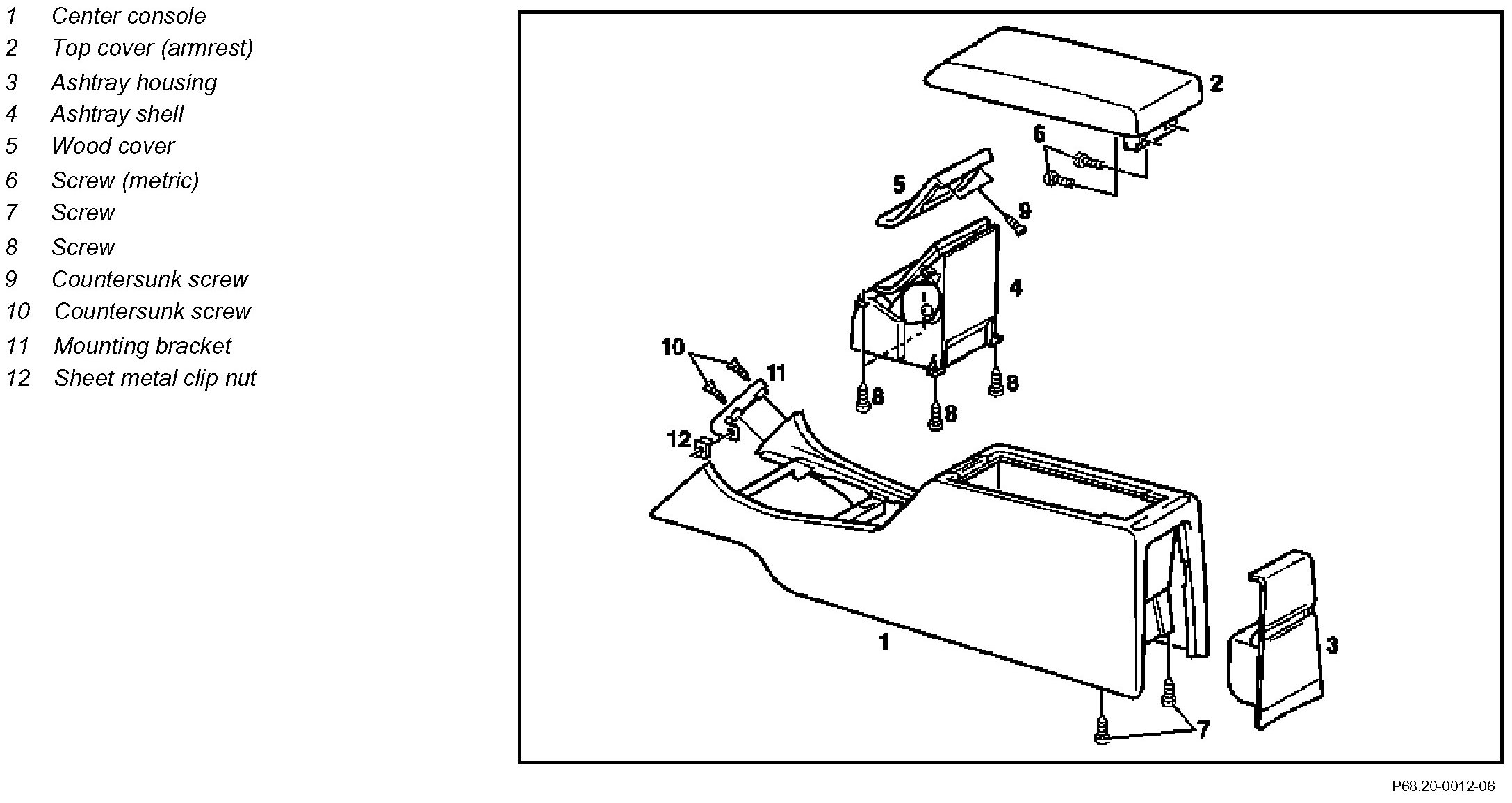

Component Identification:

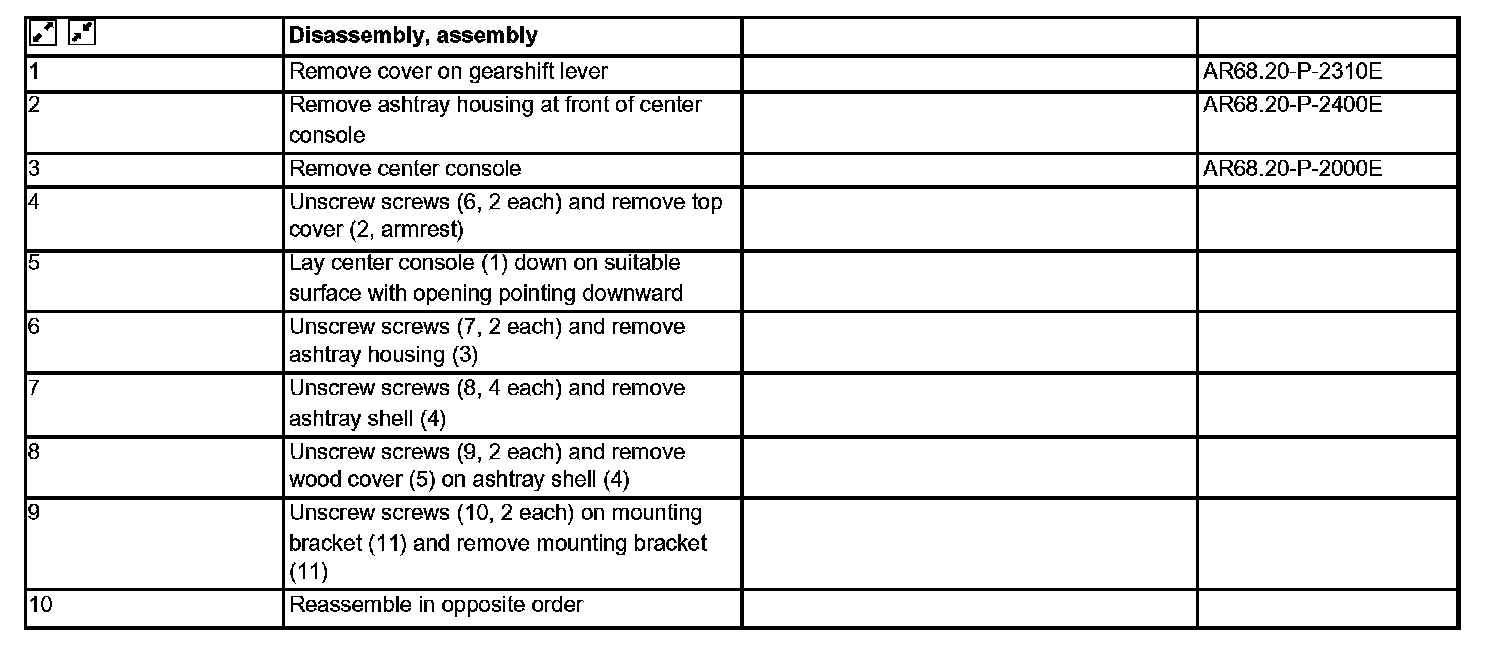

Steps 1 - 10:
