C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR88.40-P-3000E Removing And Installing Engine
Hood

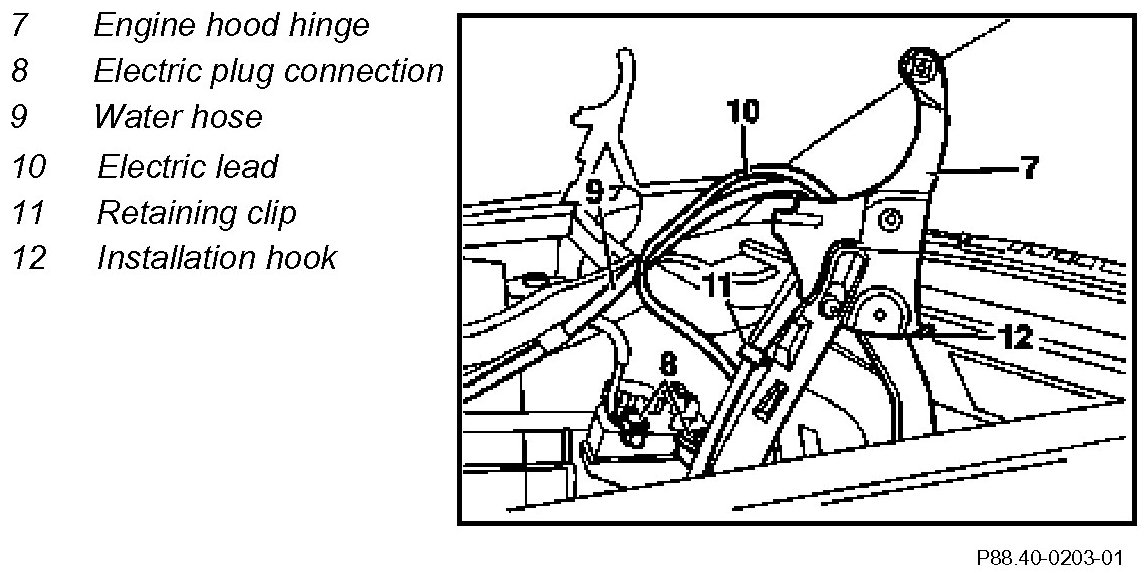

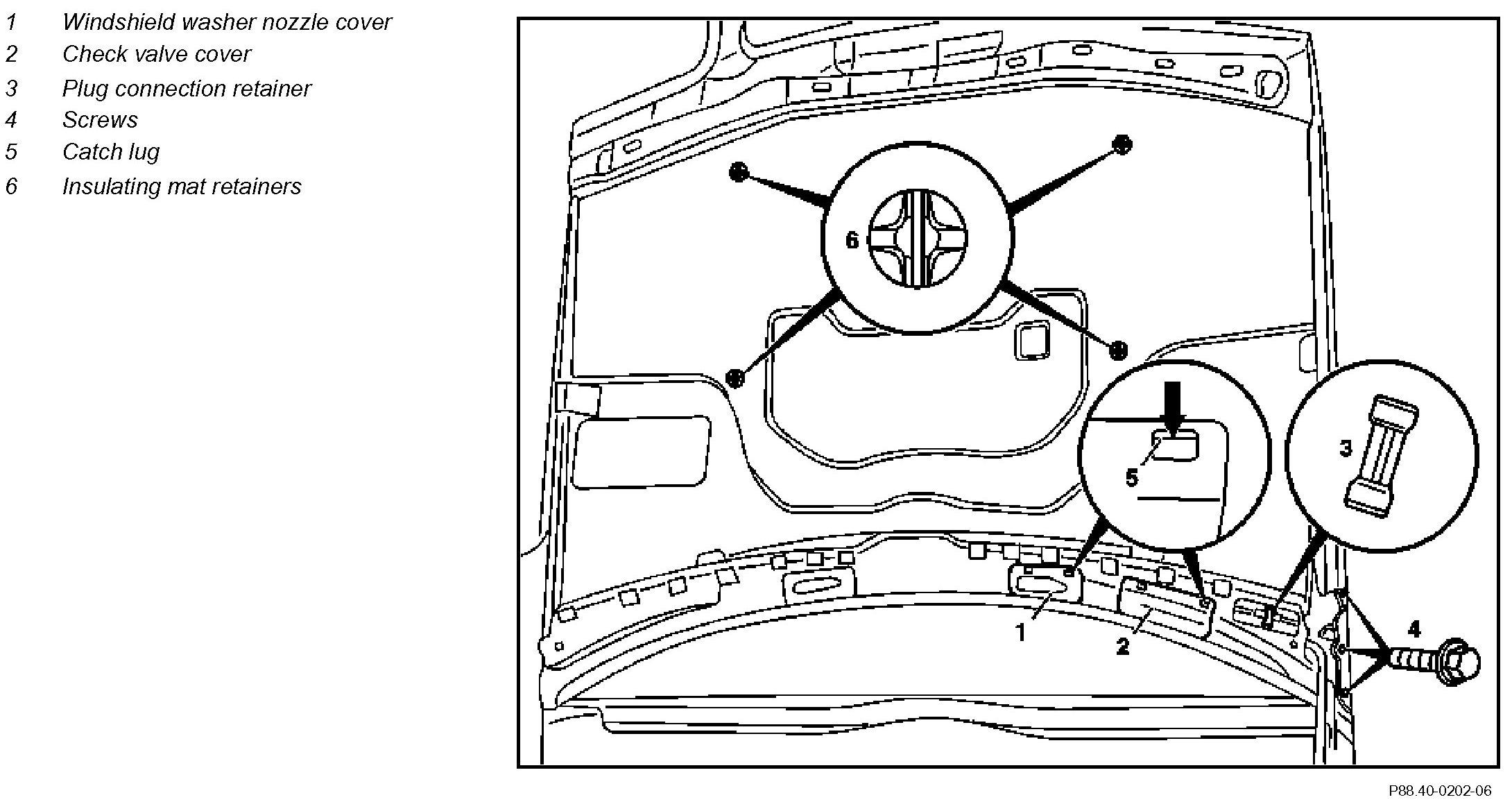

Component Identification:
Component Identification:

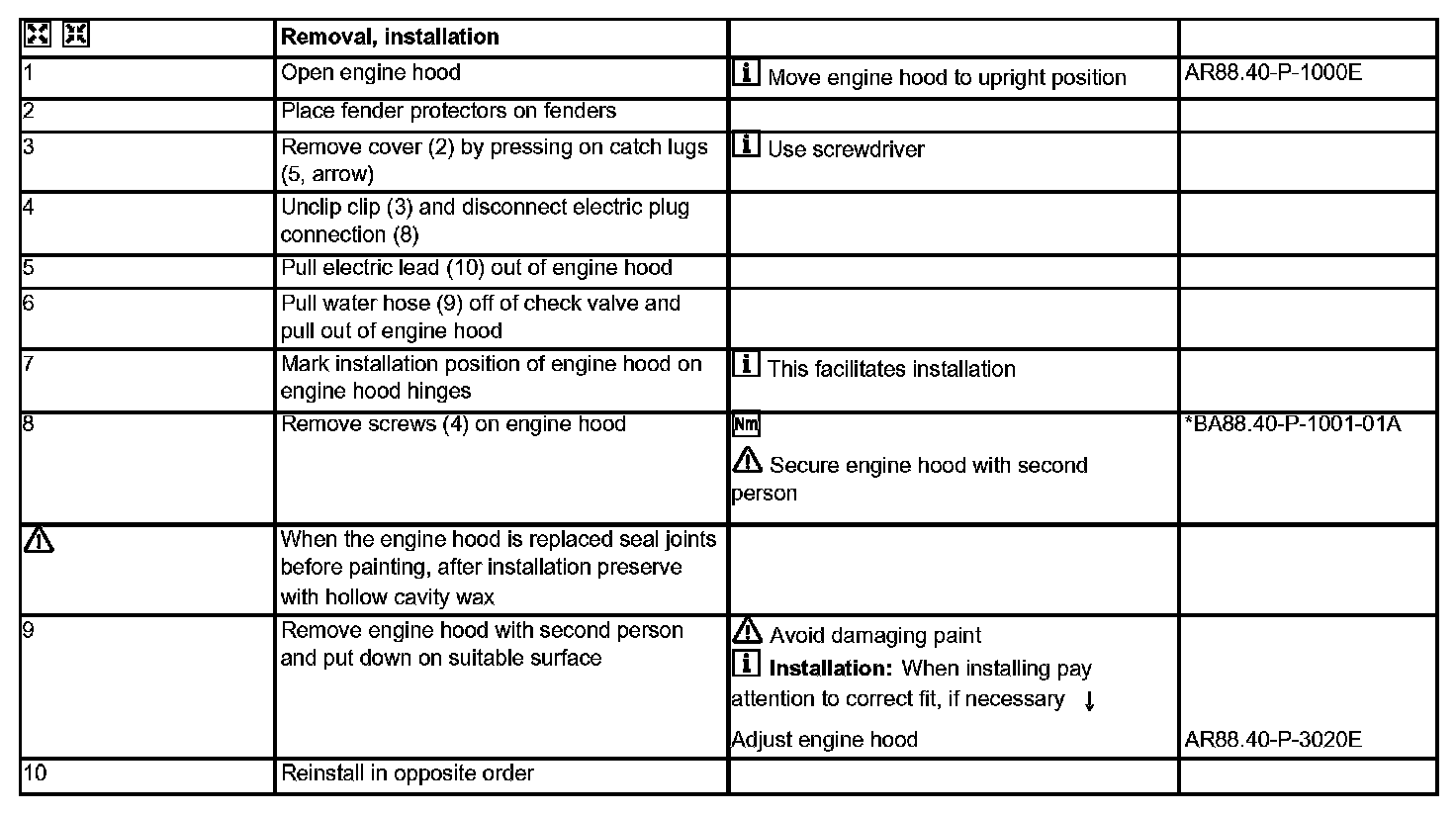

Steps 1 - 10:

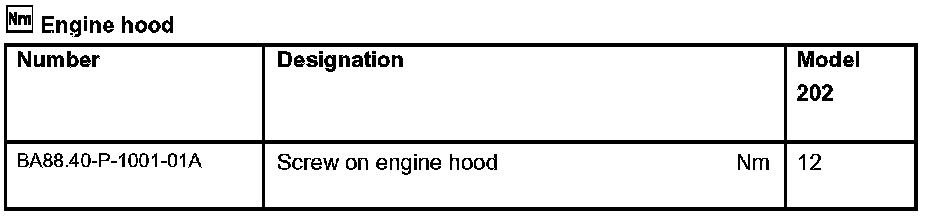

Engine Hood:
