AR72.10-P-0700E Stretching Doors

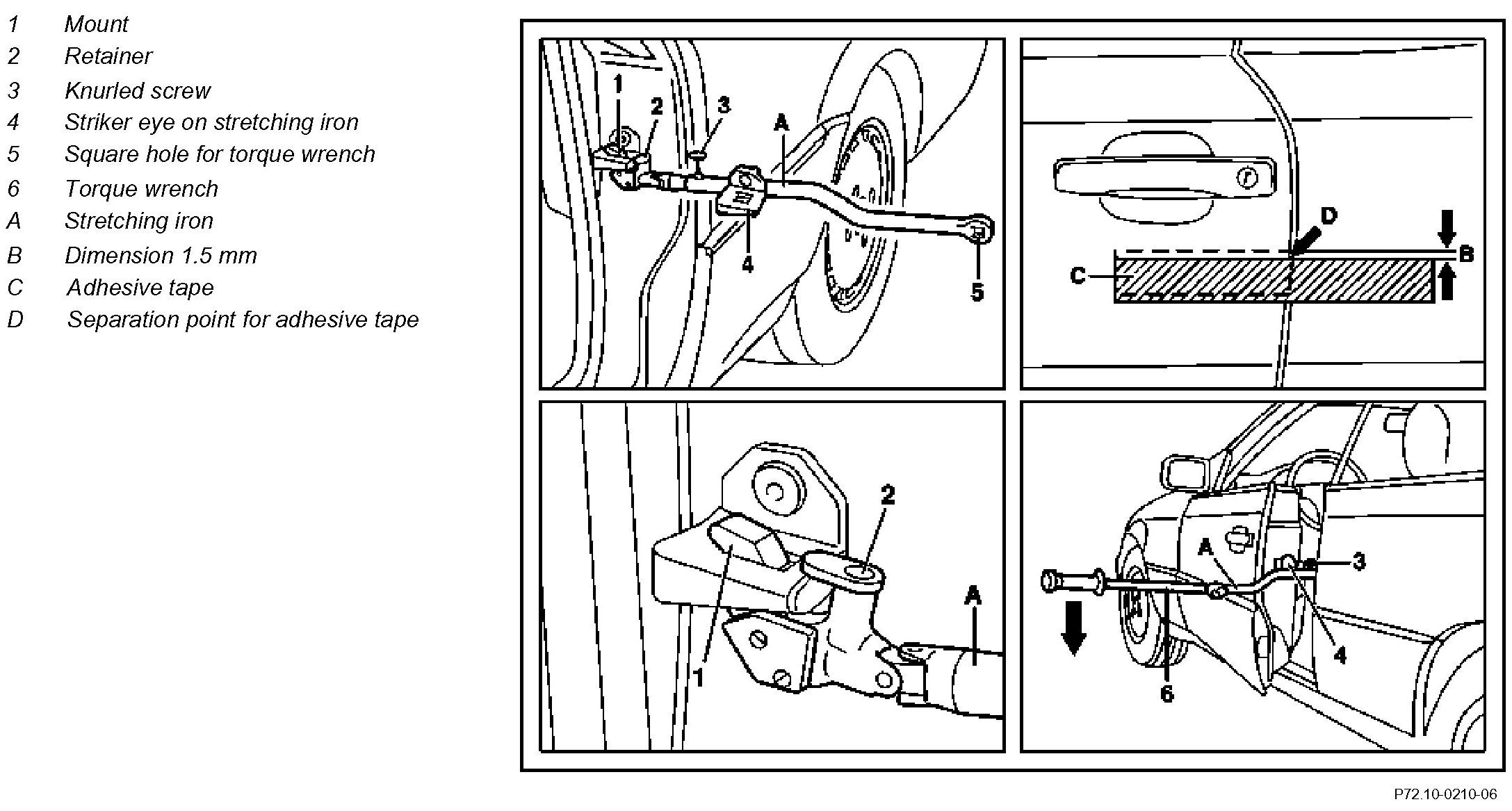

Component Identification:

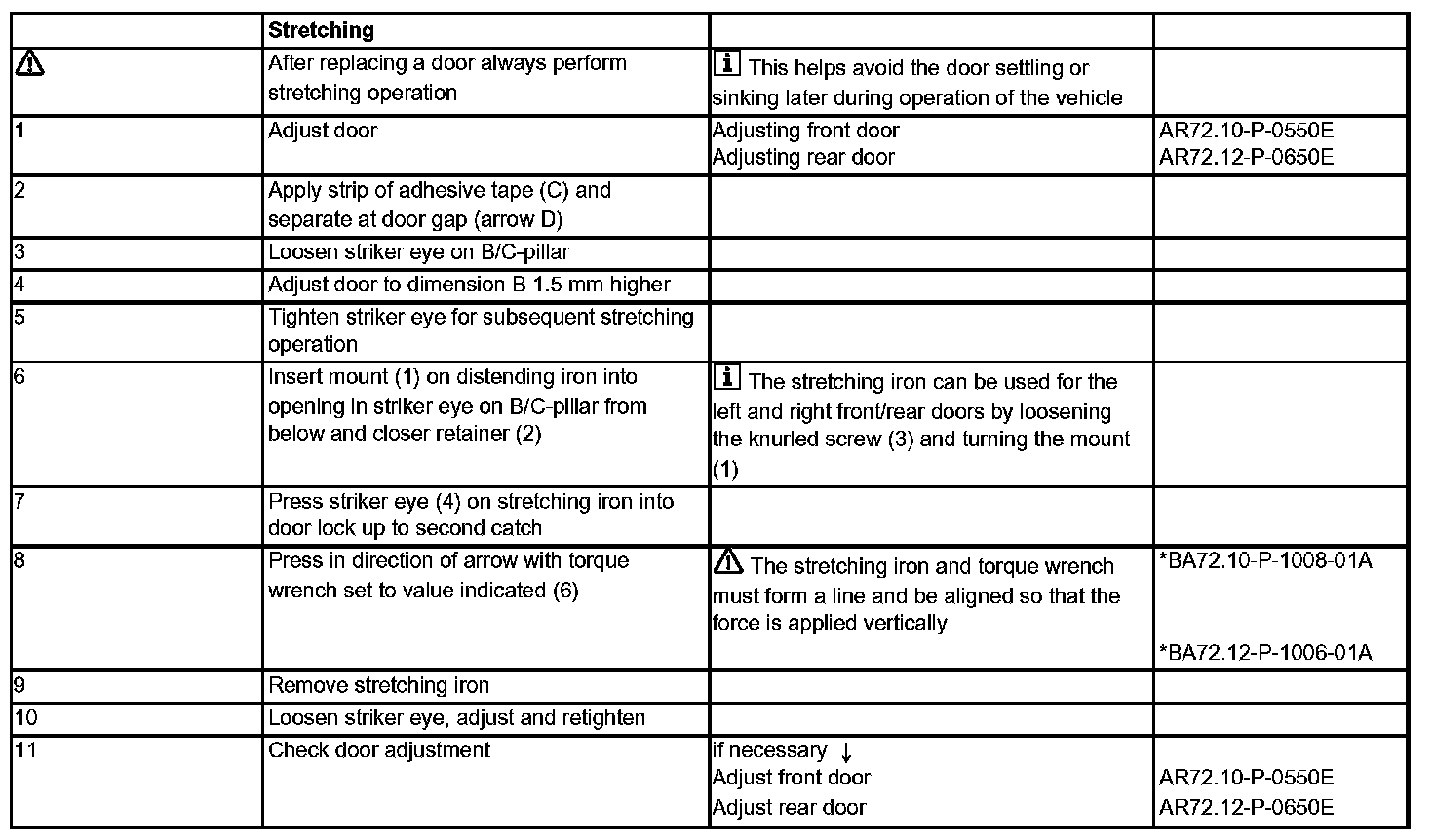

Steps 1 - 11:

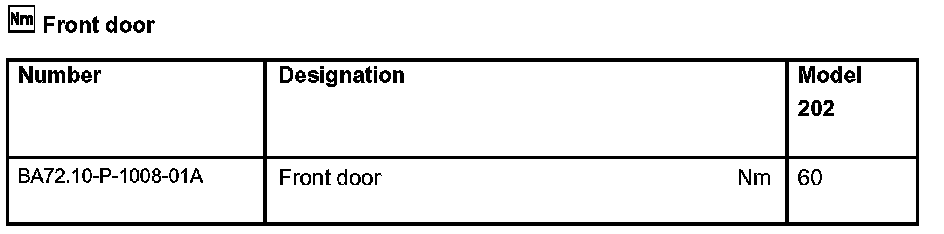

Front Door:

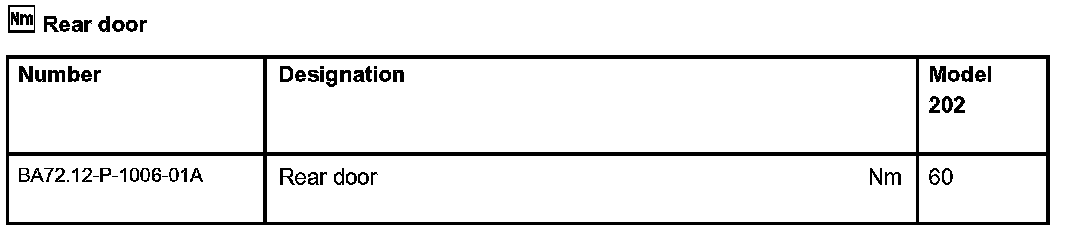

Rear Door:

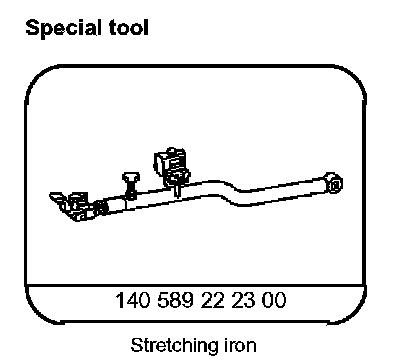

Special Tools:
