Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Infrared Remote Central Locking System (RCL) >> Diagnosis >> Electrical Test Program >> Test >> 16.0 - 16.2

16.0 - 16.2

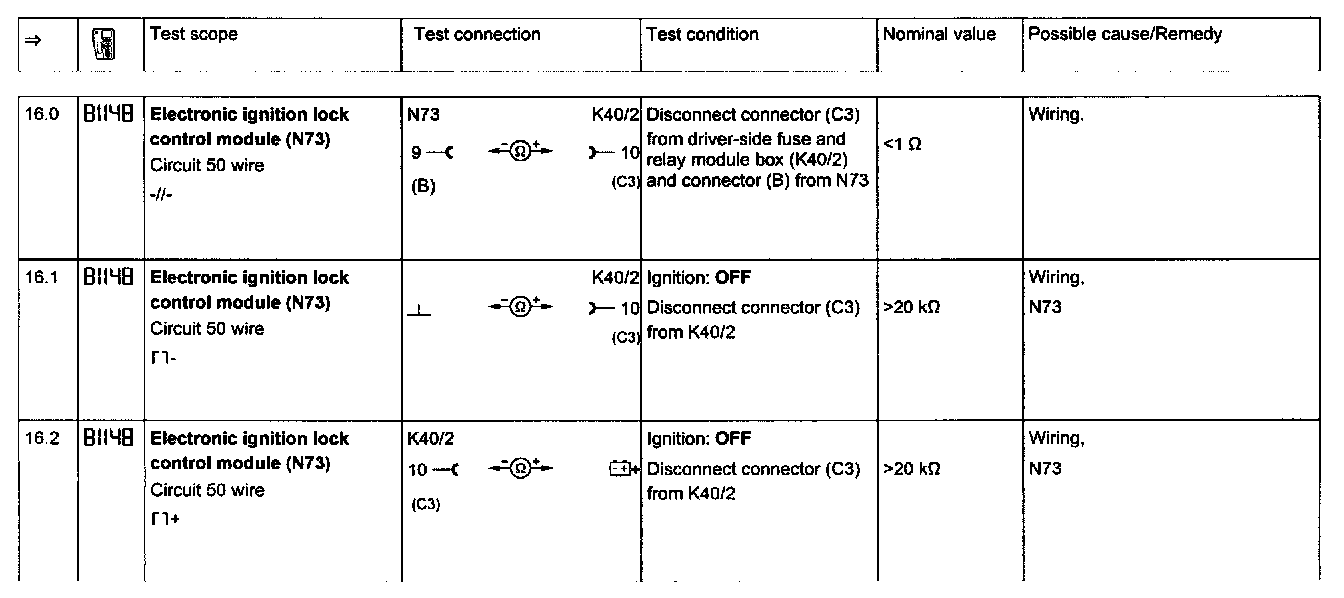

Test Steps 16.0 - 16.2:
