Preparation

The following tests and activations are possible via the Hand-Held Tester.

Preparation for Test
1. Fuses ok,
2. Battery voltage > 11
3. Connect the Hand-Held Tester (HHT) to X11/4, according to diagram, see section 0. Connection and Use of Test Equipment - Section 0
4. Voltage supply to the control modules and CAN data lines ok, see CAN, Section 23. Testing and Inspection
5. All CAN data lines properly connected.


NOTE: The actual values and activations of any system may be stored in numerous other control modules, therefore readout all actual values and activations from the control modules which are relevent to this system. When reading out the actual values, all stored in that control module will be shown.

CAUTION: Erasing the Convenience Feature (CF) DTC memory, will also erase the DTC memory for the Combination Control Module (N10-1) and Mirror, steering column adjustment, heated mirrors (MSC).

Abbreviations:
OCP Over-head control panel control module (N70)
EIS Electronic ignition key
PW Power window motor
PSE PSE control module (A37), combined functions
DCM 1 Front driver-side door control module (N69/1)
DCM 2 Front passenger-side door control module (N69/2)
DCM 3 Rear driver-side door control module (N69/3)
DCM 4 Rear passenger-side door control module (N69/4)
LCP Lower control panel control module (N72)
CL Central locking

The above noted abbreviations are in the second column of the following actual values tables in bold type to advise of hints (regarding in which of the control modules the actual values or activations are stored).

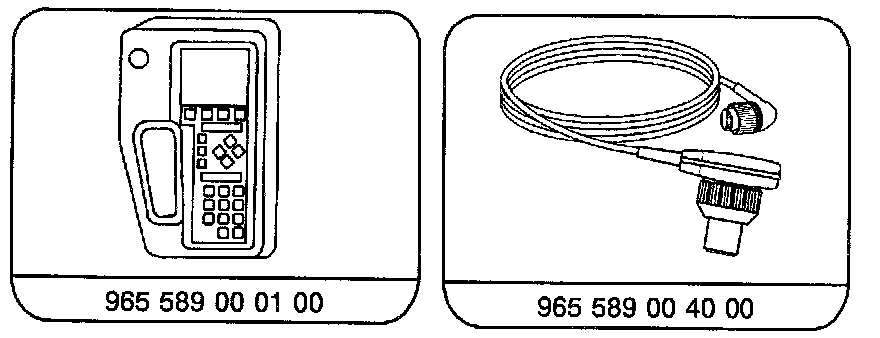

Special Tools:
